Multiple Junction Connector
>>
X200 - X299
>>
X204
X204

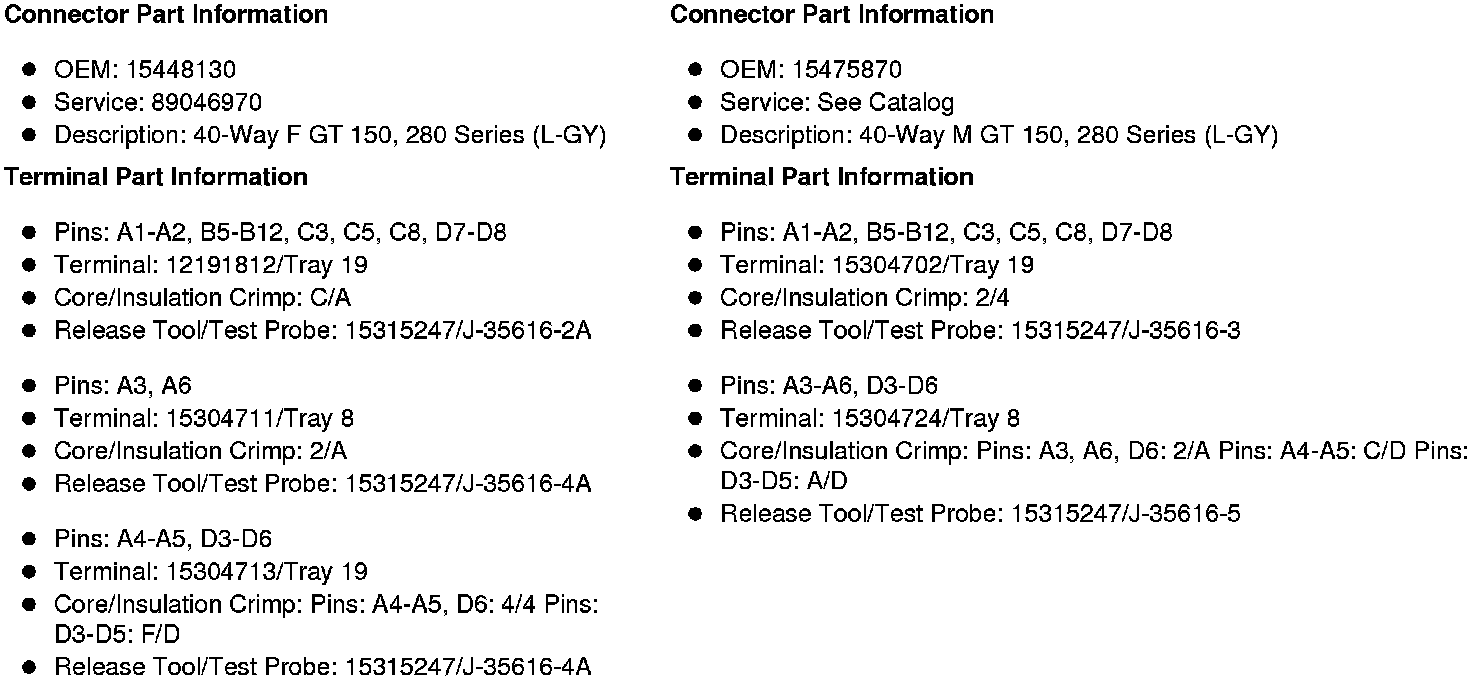

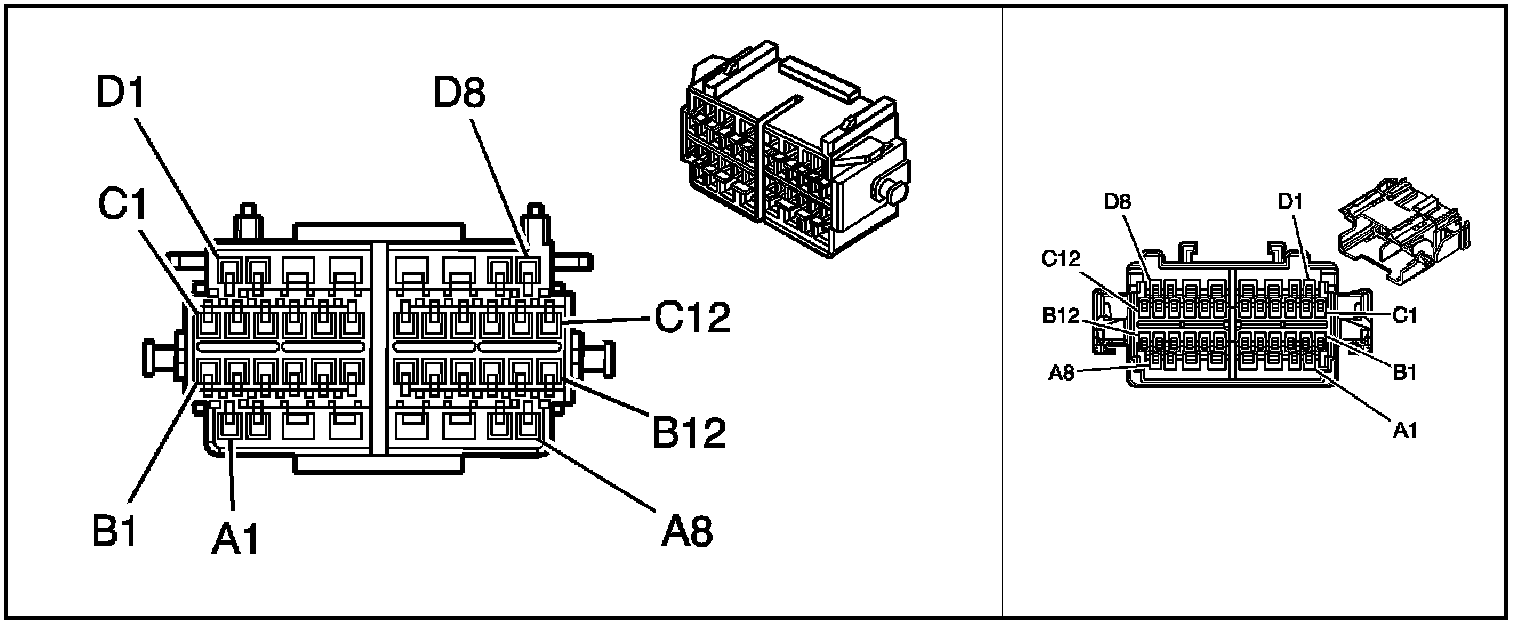

Inline Harness Connector End Views

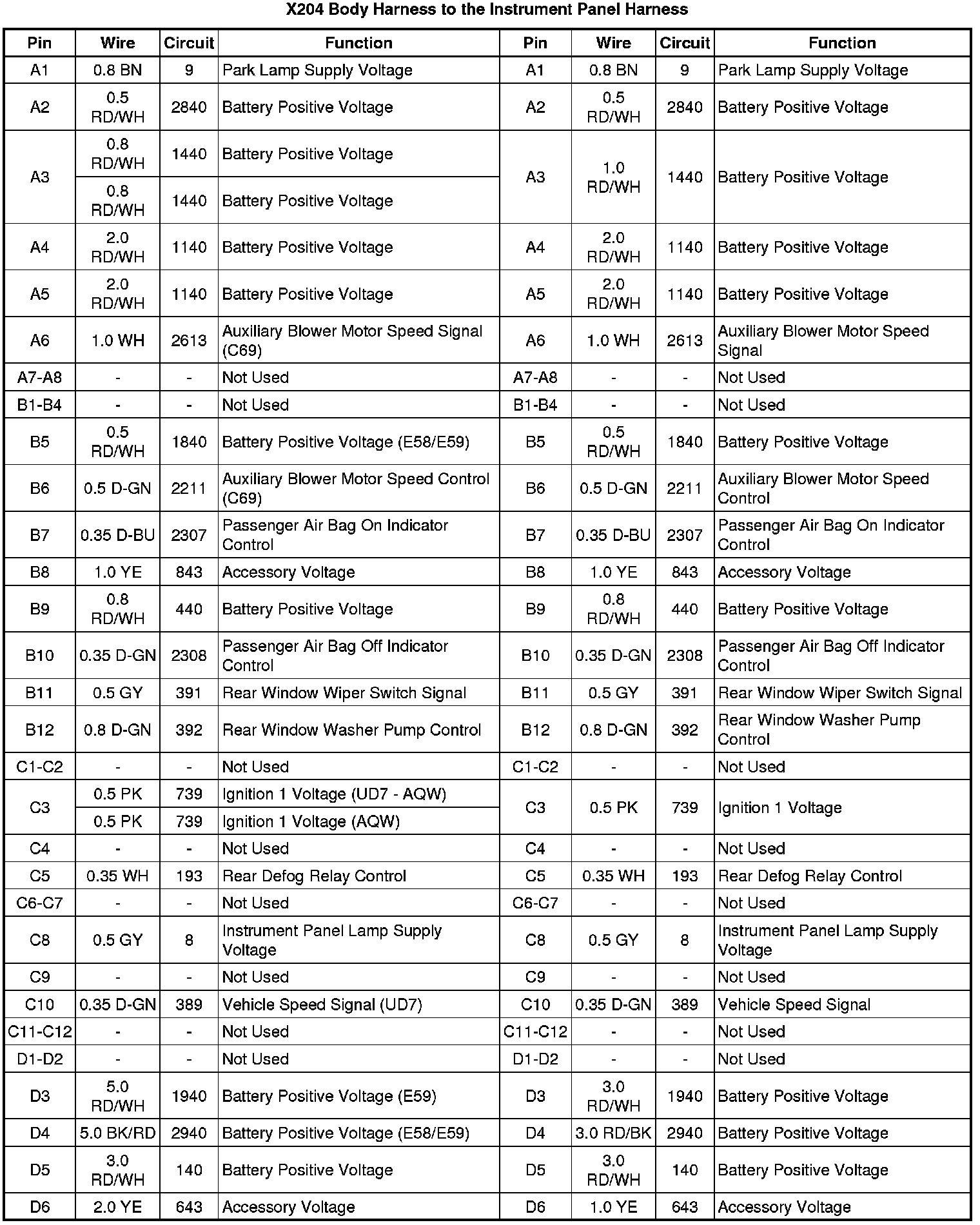

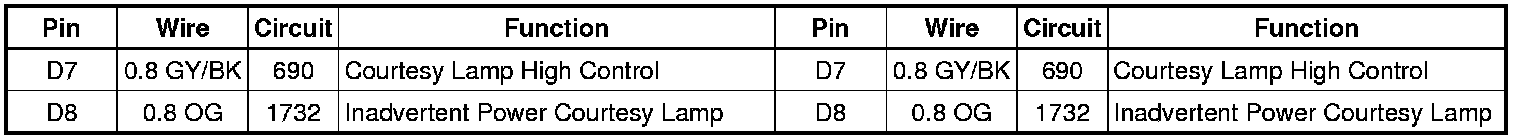

X204 Body Harness to the Instrument Panel Harness
