Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X200 - X299
>>
X203
X203

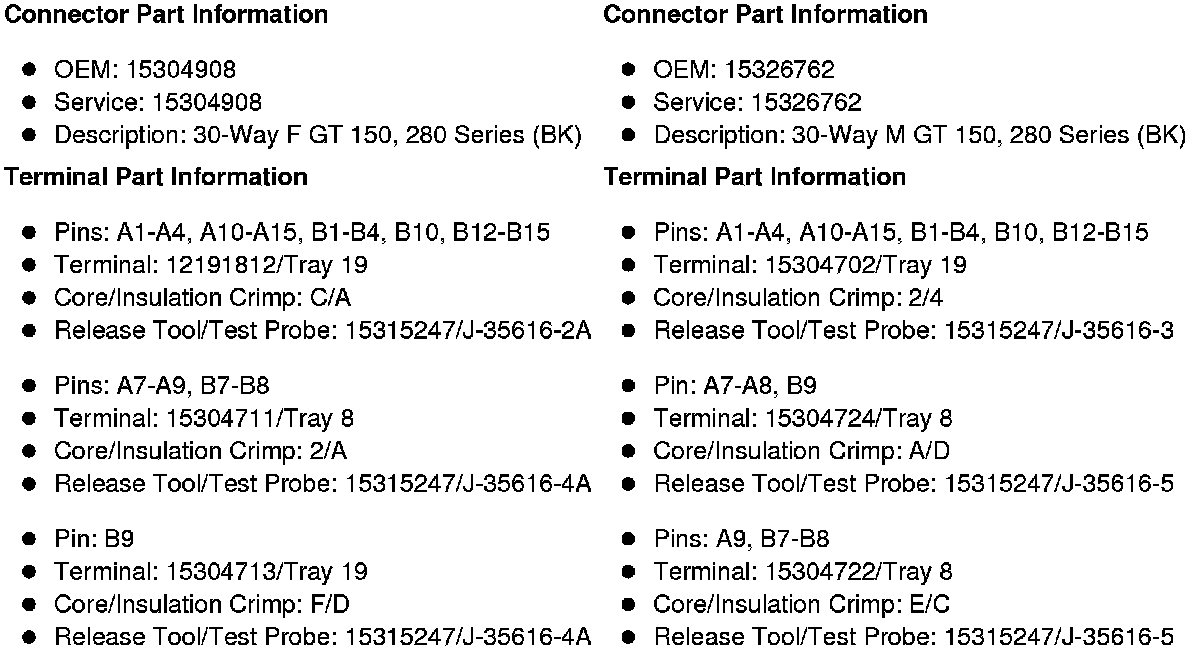

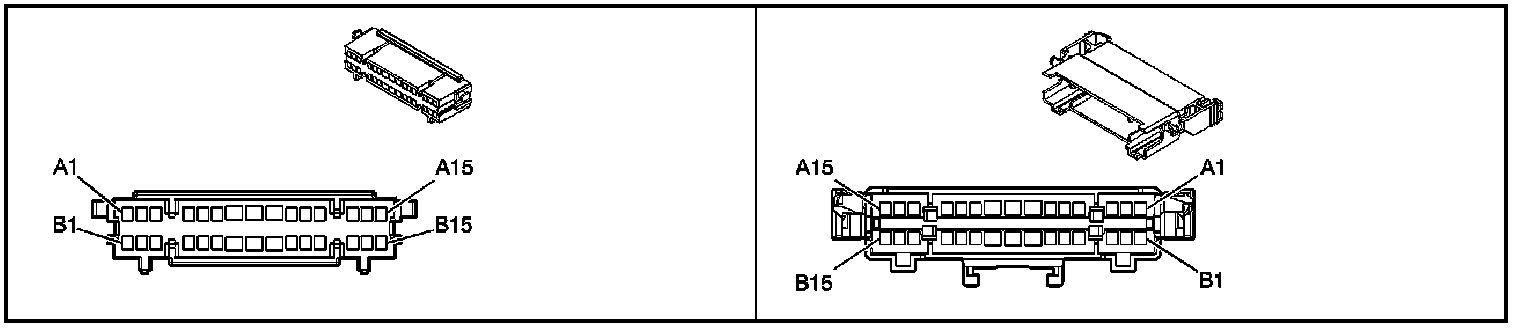

Inline Harness Connector End Views

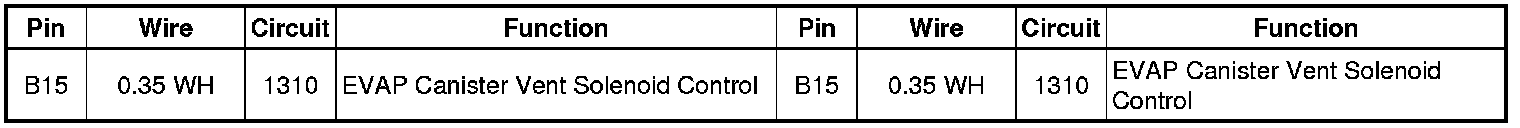

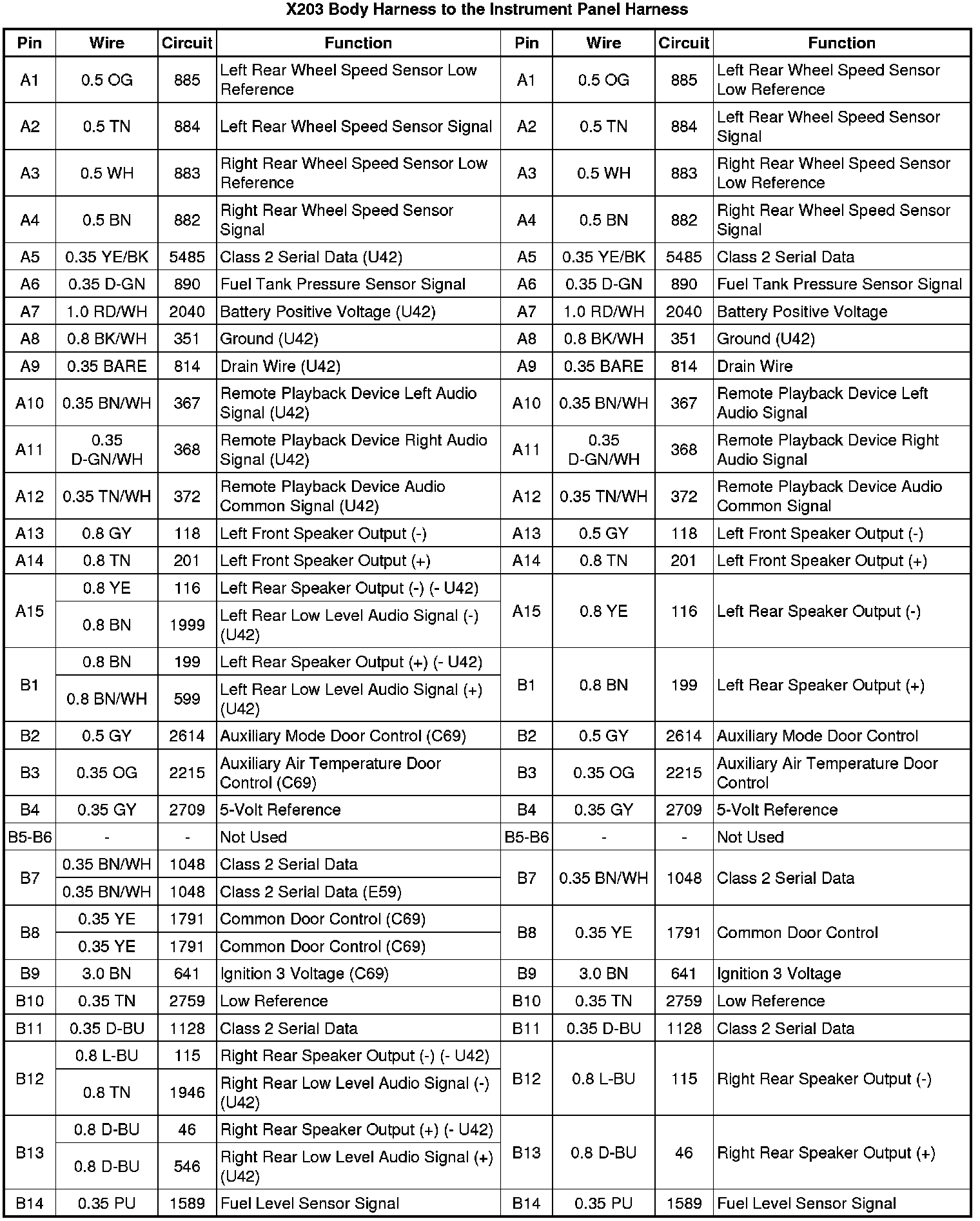

X203 Body Harness to the Instrument Panel Harness
