DVD Player



Component Connector End Views

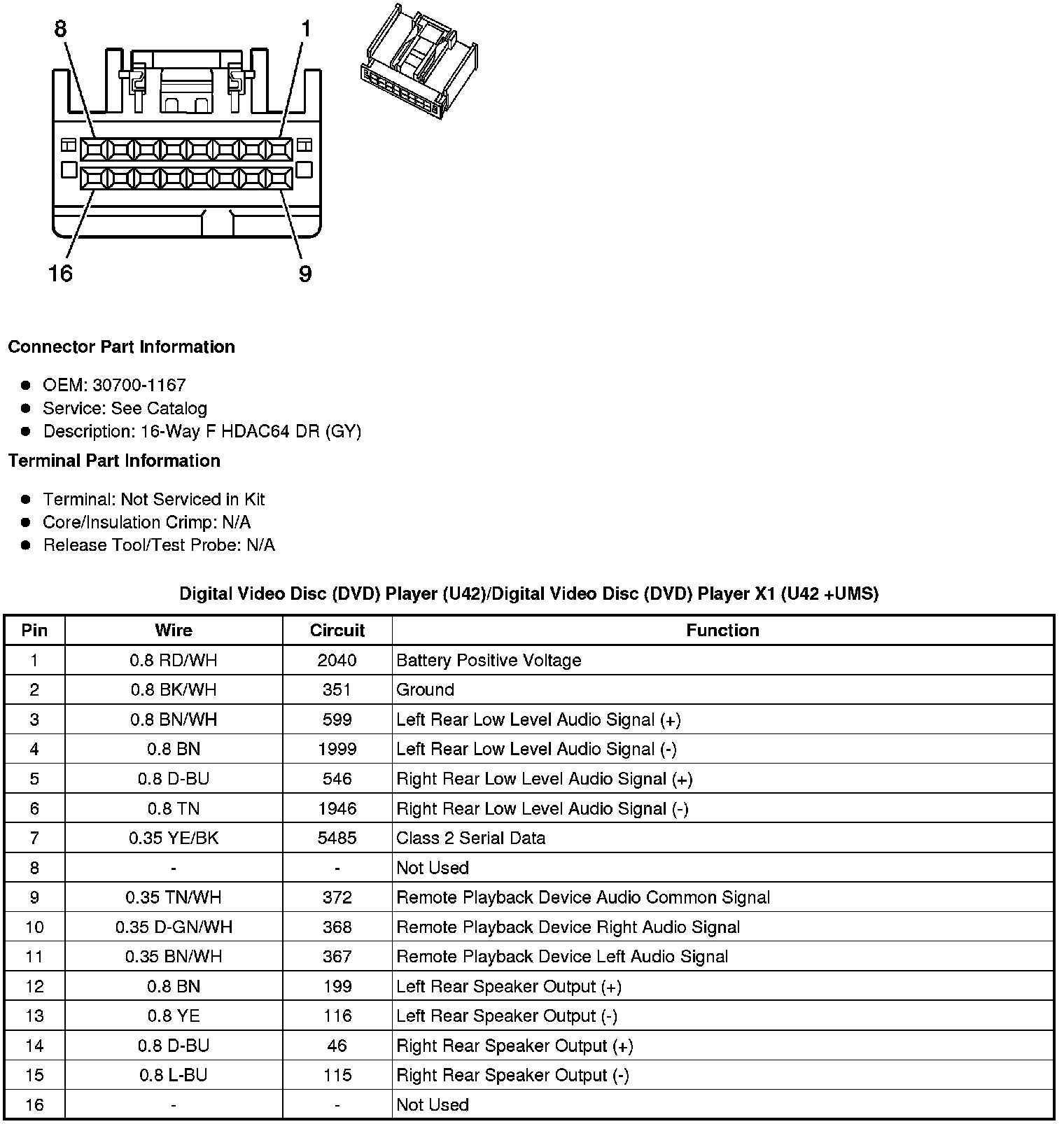

Digital Video Disc (DVD) Player (U42)/Digital Video Disc (DVD) Player X1 (U42 +UMS)

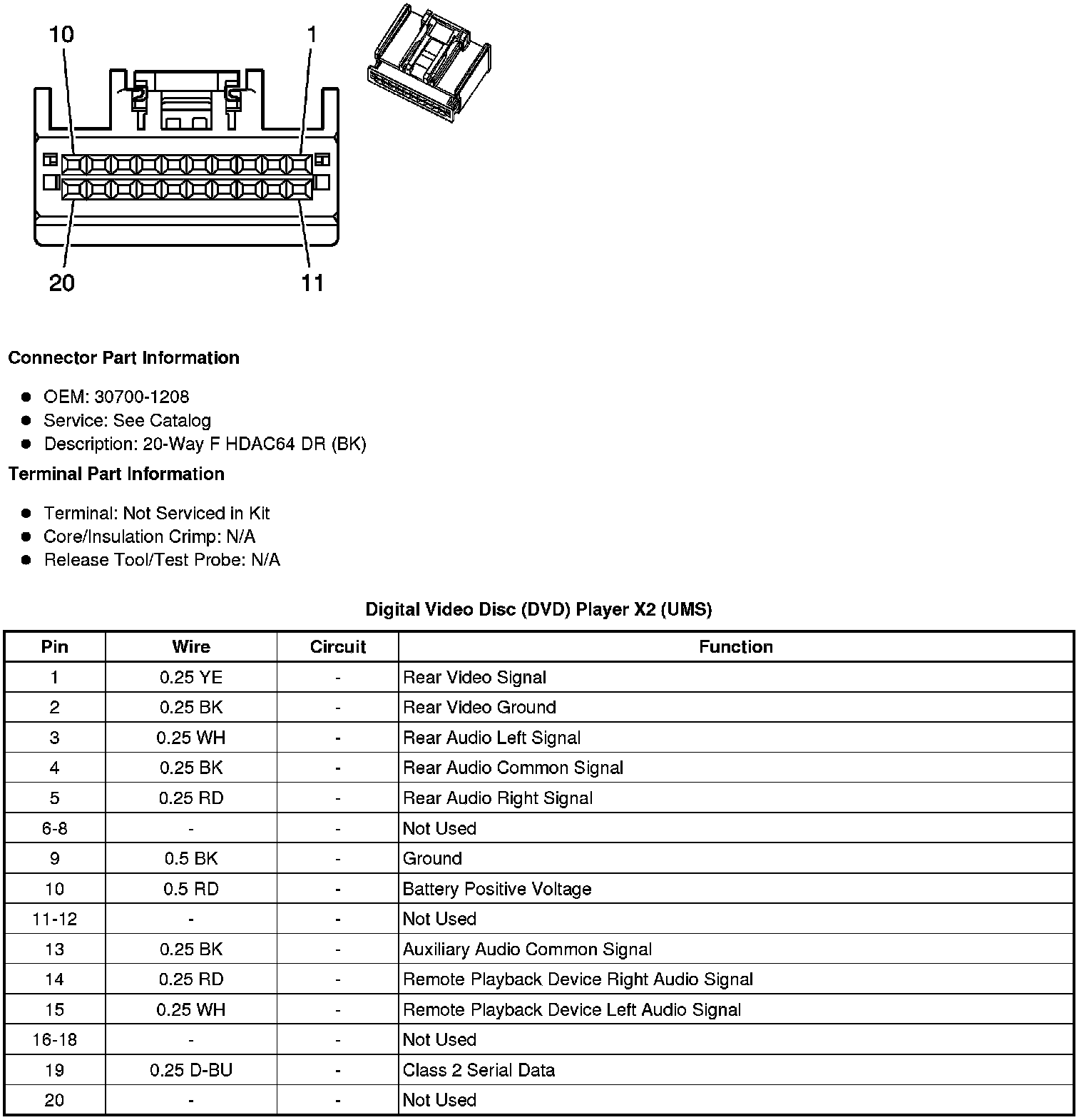

Digital Video Disc (DVD) Player X2 (UMS)
