Air Door Actuator / Motor, HVAC
>>
Recirculation Actuator
Recirculation Actuator

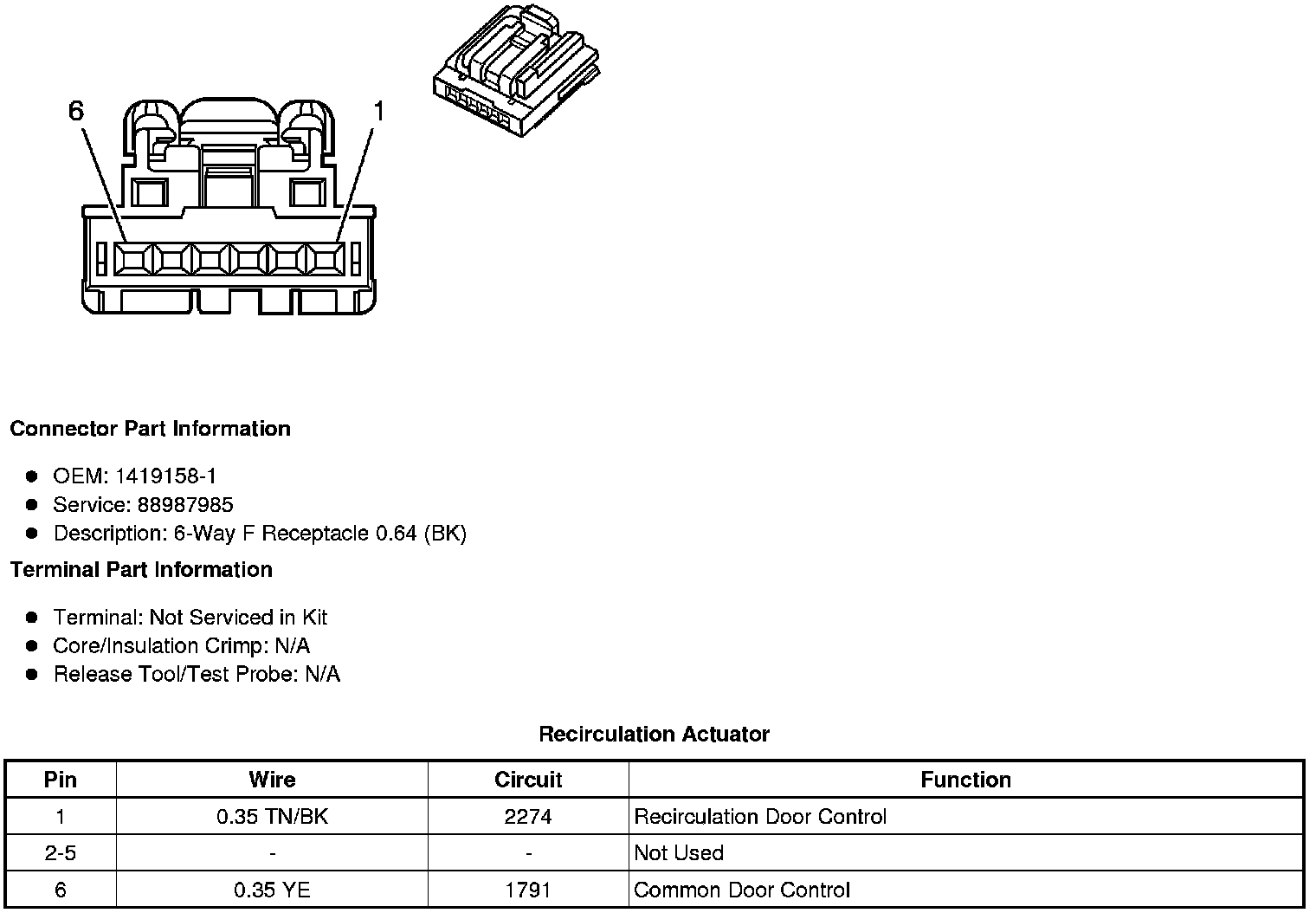

Component Connector End Views
Recirculation Actuator
