Home
>>
Chevy Truck
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Door Actuator / Motor, HVAC
>>
Defrost Actuator
Defrost Actuator

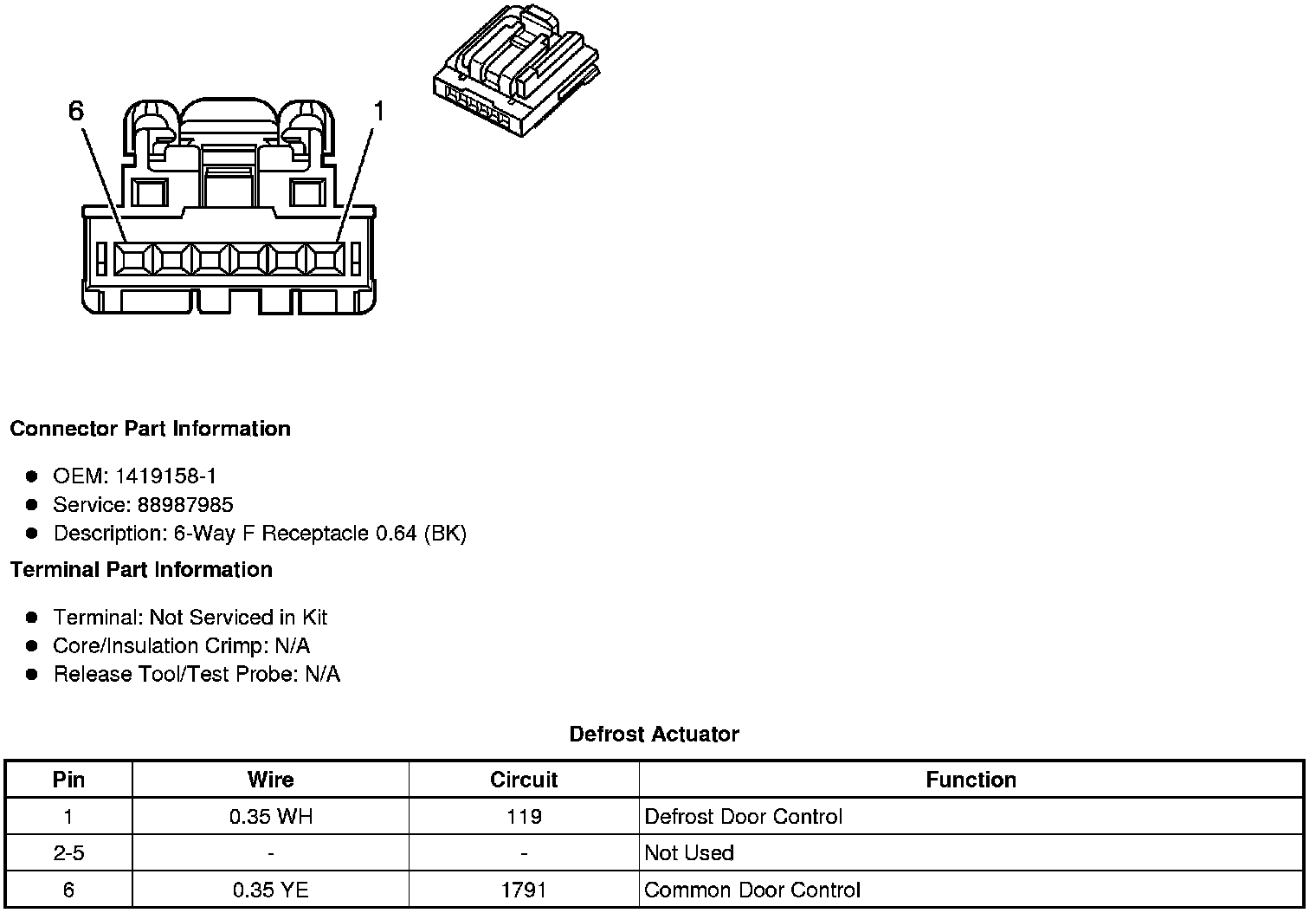

Component Connector End Views
Defrost Actuator
