Speaker



Component Connector End Views

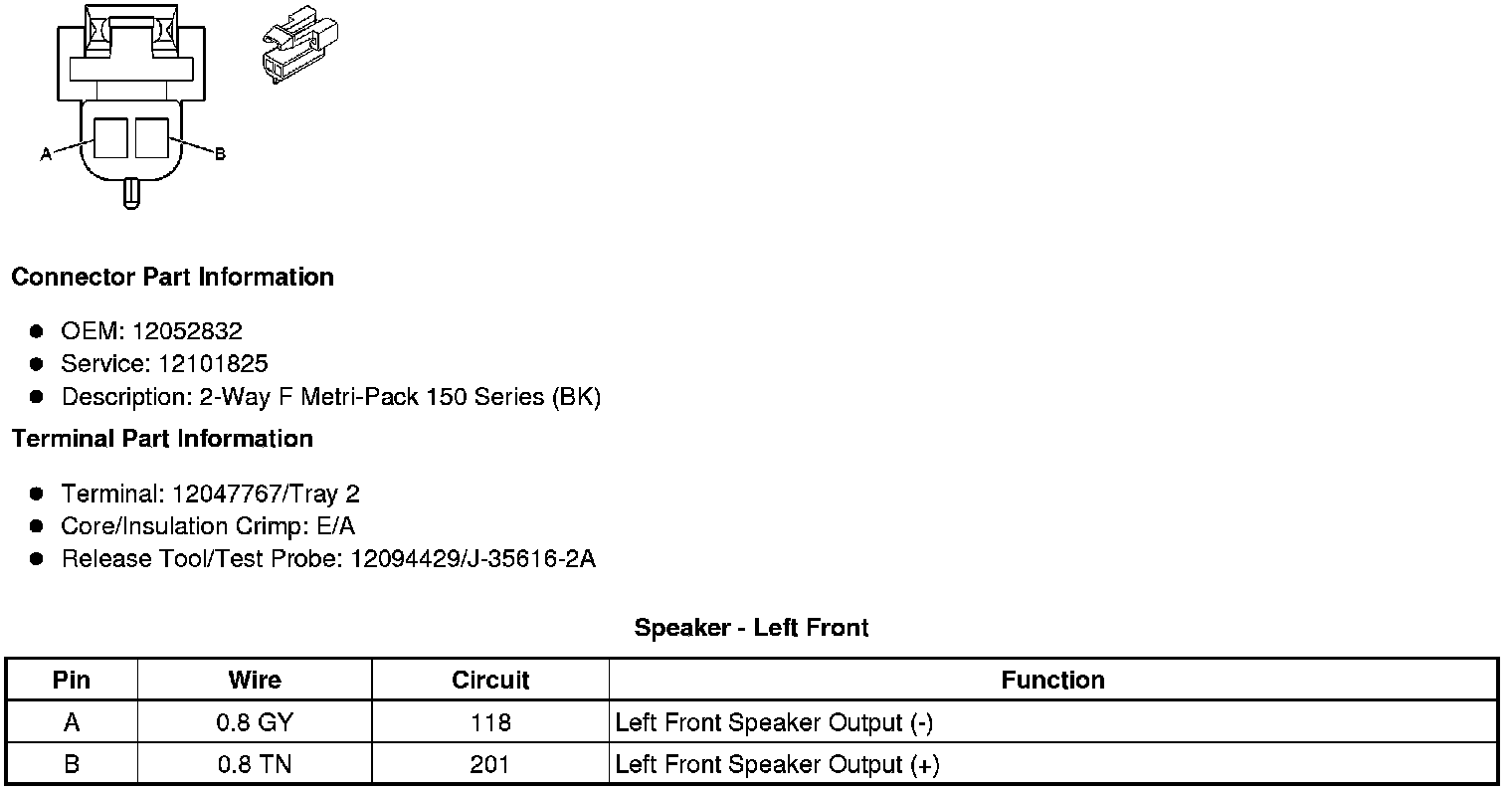

Speaker - Left Front





Speaker - Left Rear

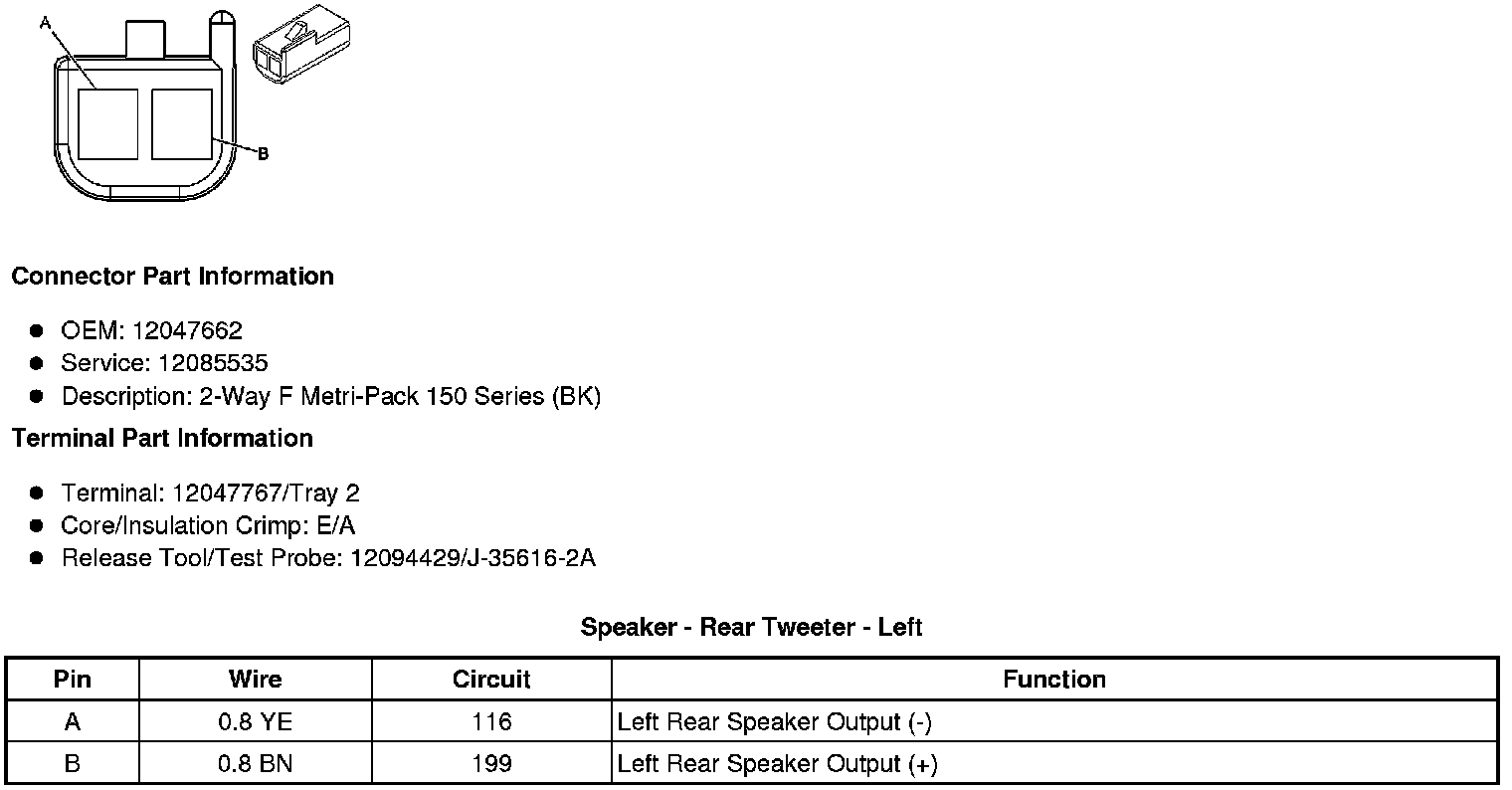

Speaker - Rear Tweeter - Left





Speaker - Rear Tweeter - Right

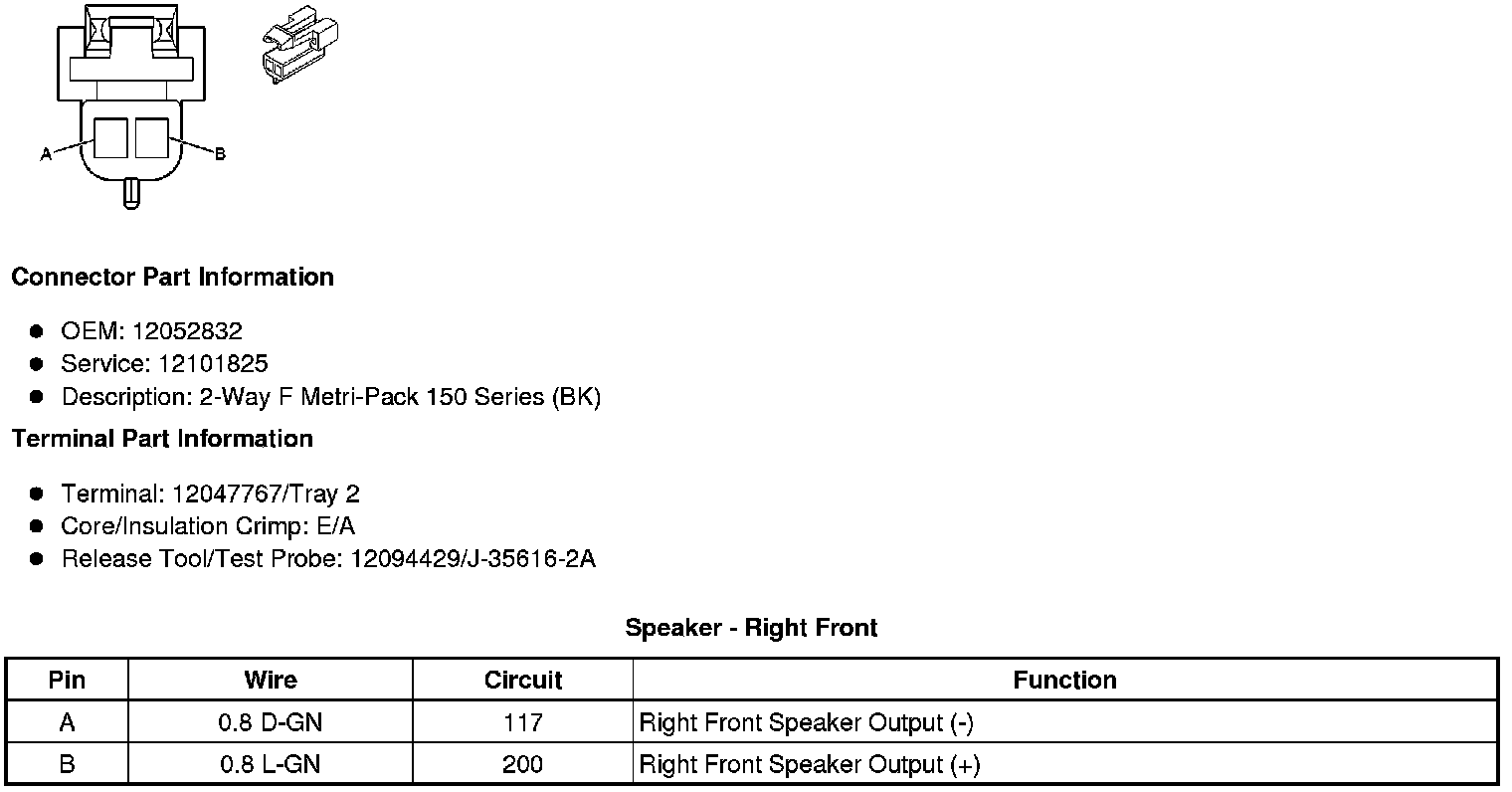

Speaker - Right Front

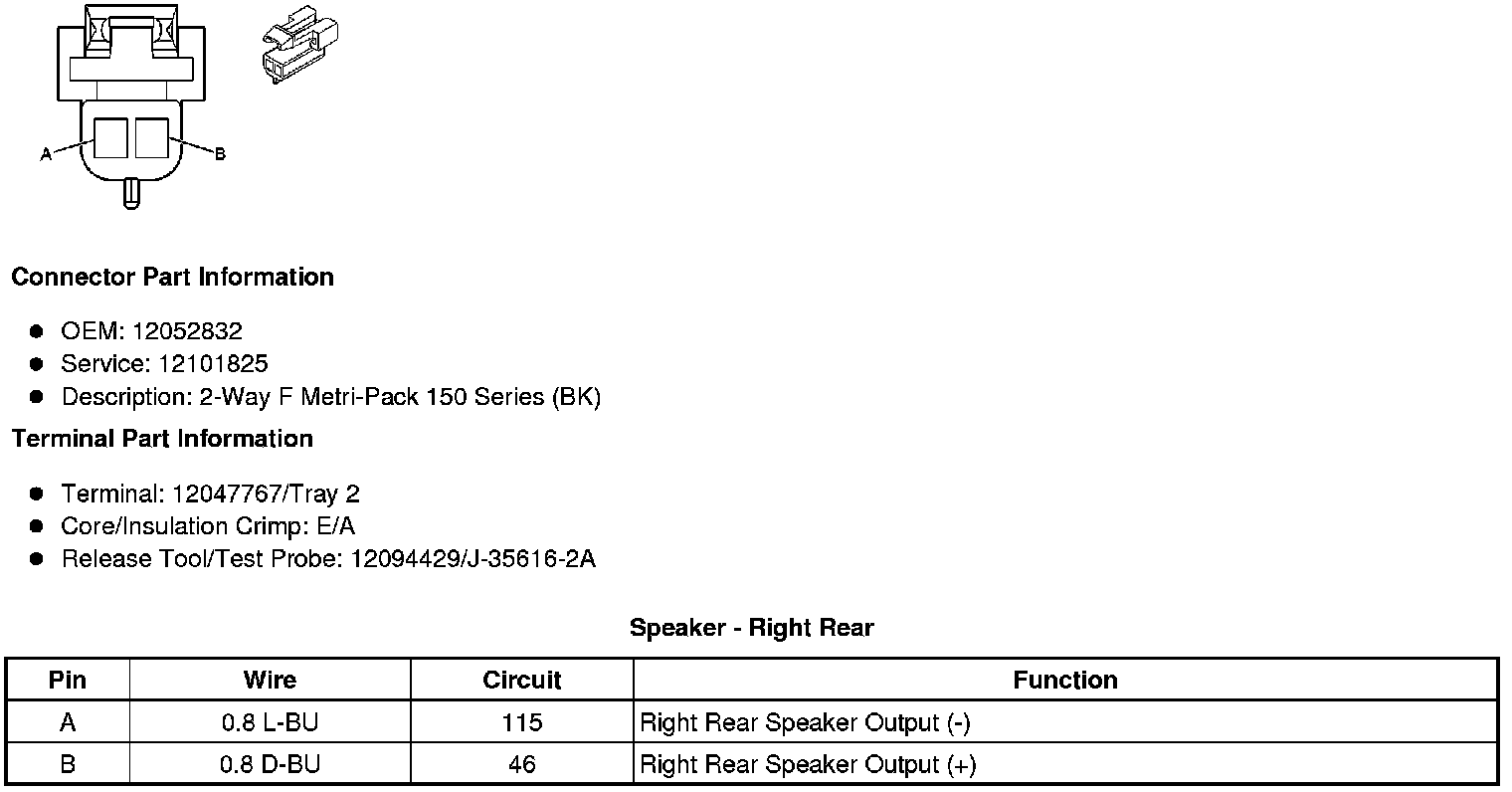

Speaker - Right Rear
