Sliding Door Schematics
Sliding Door
Schematics

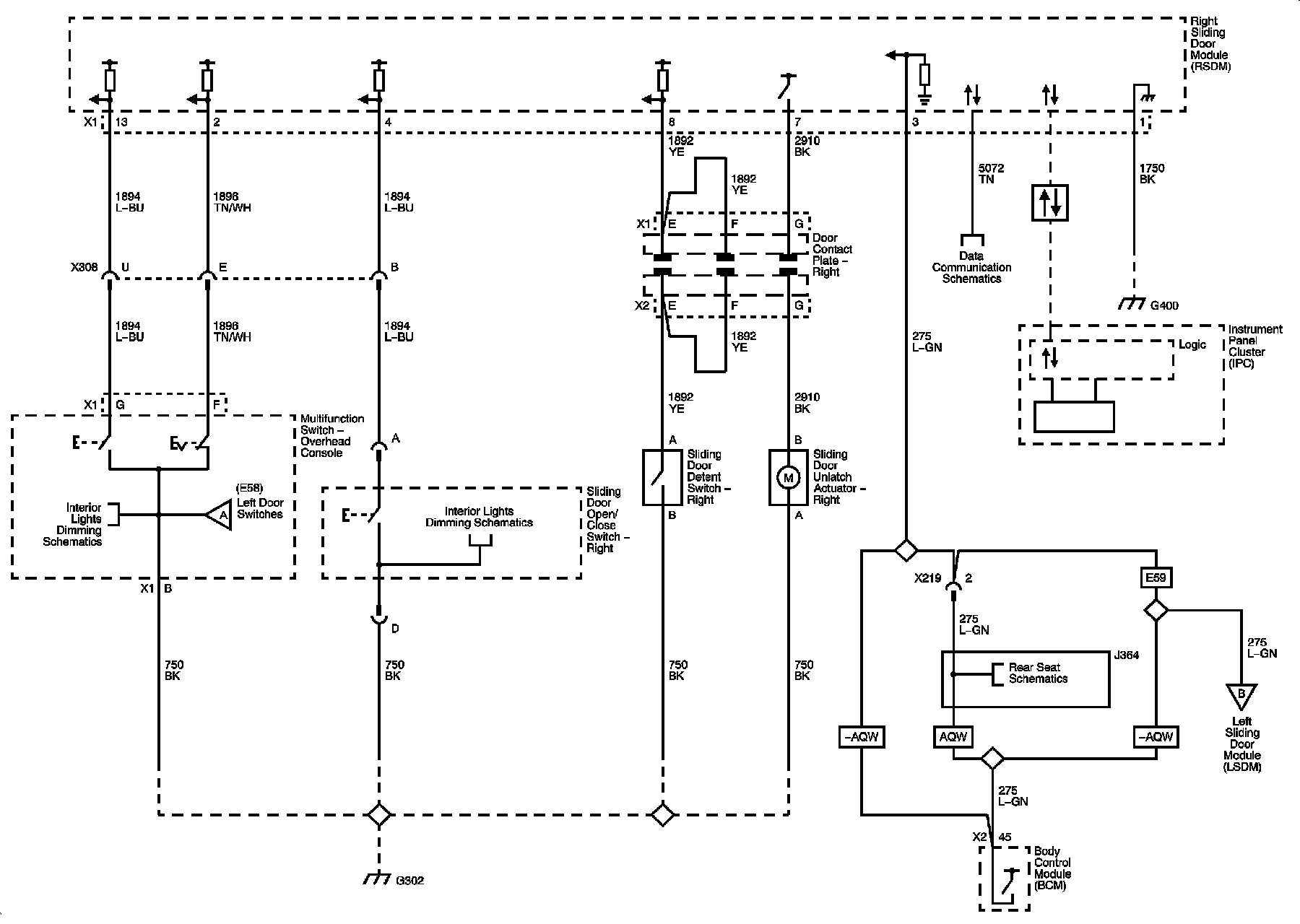

Right Door Controls

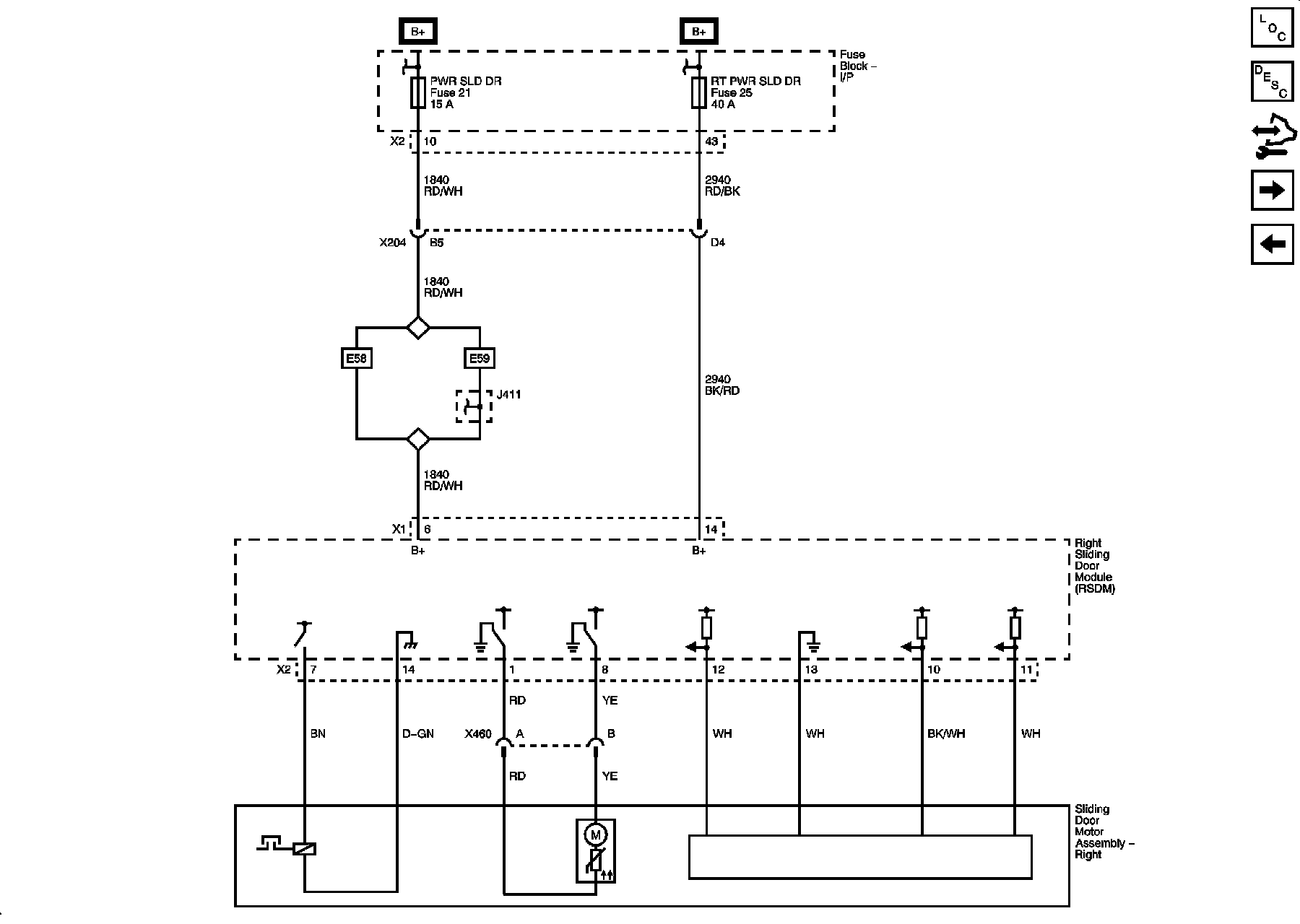

Right Door Motor

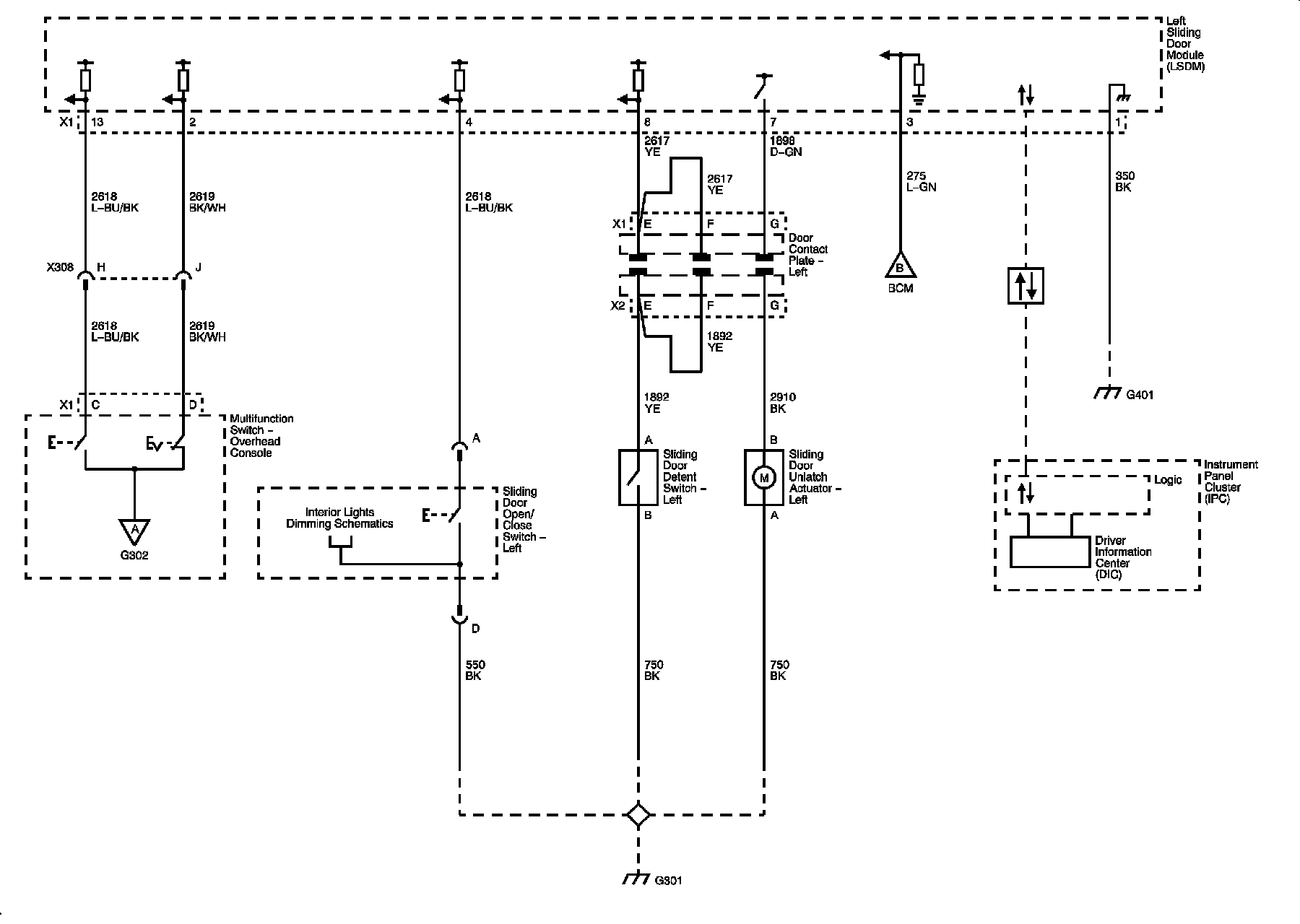

Left Door Controls

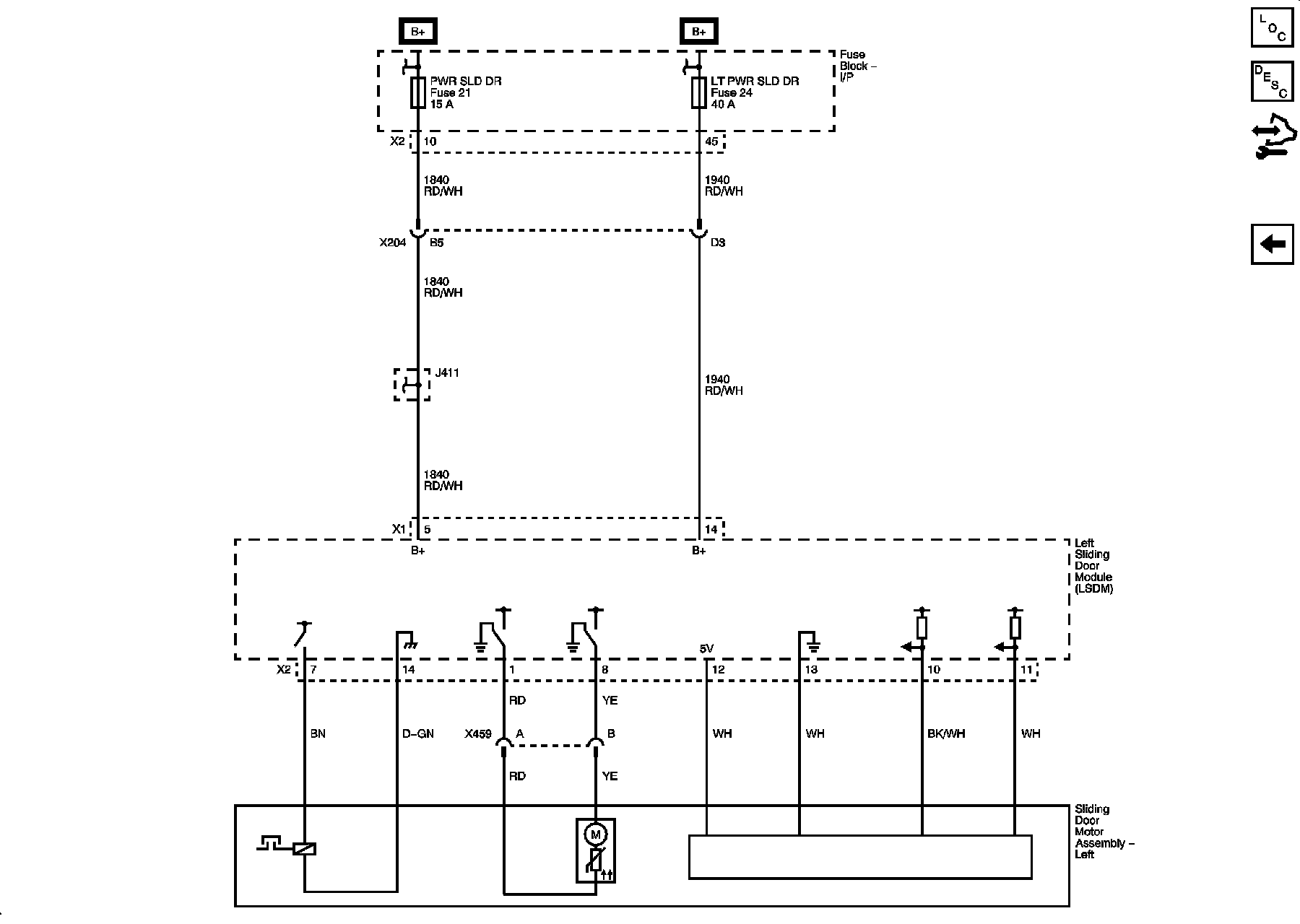

Left Door Motor
