Cellular and Navigation Antenna Assembly Replacement

Cellular and Navigation Antenna Assembly Replacement

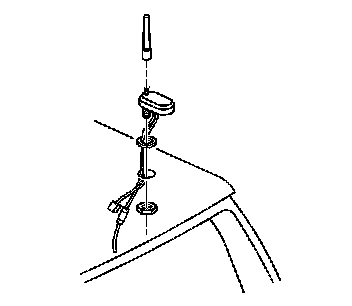

Removal Procedure

Important: Complete removal of the headliner is not required.


1. Lower the headliner. Refer to Headlining Trim Panel Replacement (Service and Repair).




2. Disconnect the cables from the antenna.




3. Loosen the retaining nut till the antenna assembly can be pulled from the top of the roof.

Installation Procedure

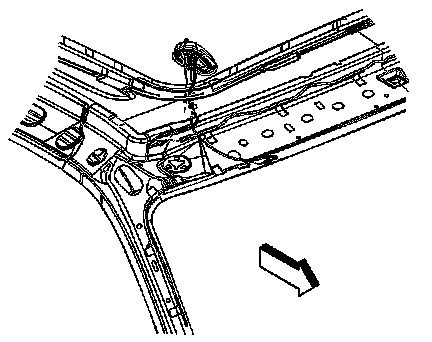

1. Place the antenna assembly on the roof opening.

Notice: Refer to Fastener Notice (Fastener Notice).




2. Tighten the retaining nut.

Tighten the nut to 6 N.m (53 lb in).

3. Connect the antenna cables
4. Install the headliner. Refer to Headlining Trim Panel Replacement (Service and Repair).
