Windshield Washer Reservoir: Service and Repair

Windshield Washer Solvent Container Replacement (Envoy, TrailBlazer)

Removal Procedure

1. Remove the air cleaner element.

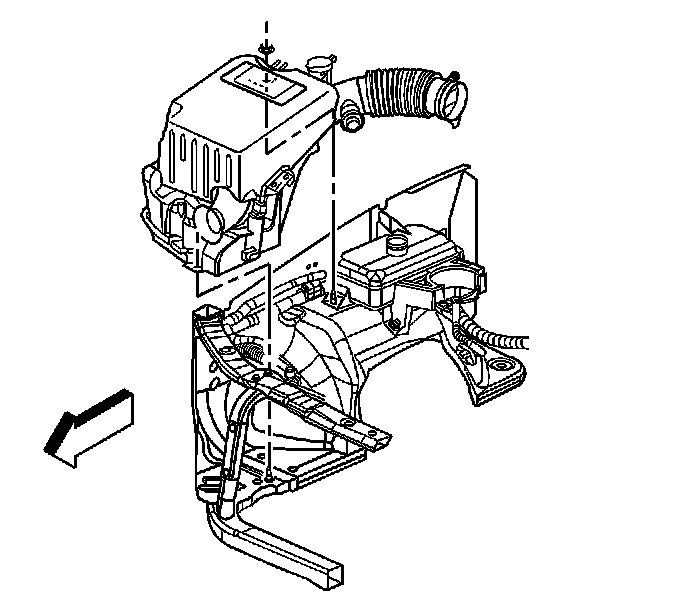

2. Remove the air cleaner/washer container assembly.




3. Remove the washer pumps from the container assembly.

Installation Procedure




1. Install the washer pumps to the container assembly.
2. Install the air cleaner/washer container assembly.
3. Install the air cleaner element.
