Instrument Panel Outer Air Outlet Replacement - Right Side

Instrument Panel Outer Air Outlet Replacement - Right Side

Removal Procedure




1. Remove the right instrument panel (I/P) access cover.

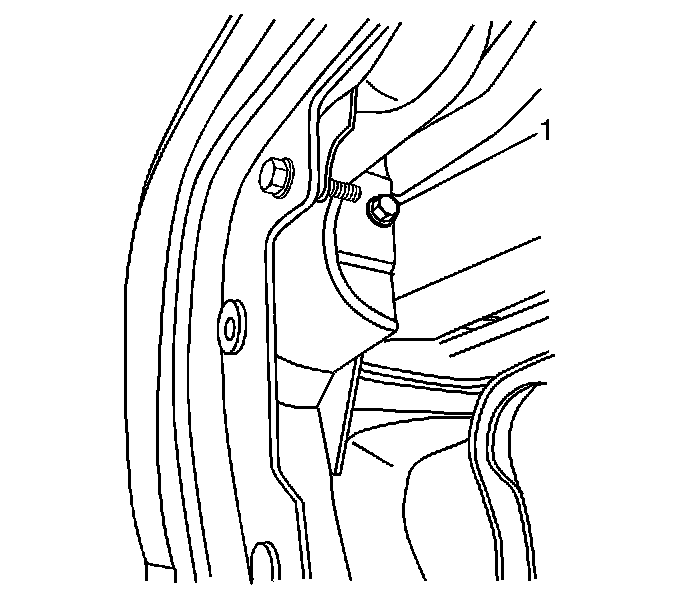

2. Remove the screw (1) retaining the air outlet assembly to the I/P.

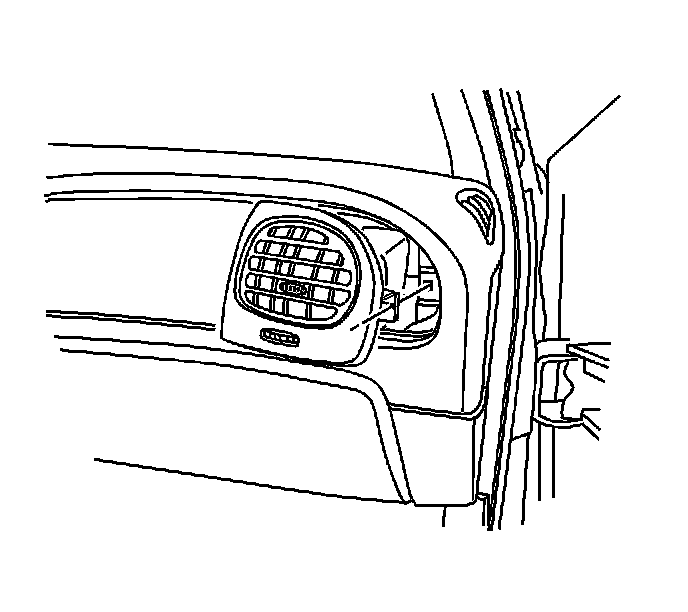

3. Grasp and pull the outlet assembly rearward from the I/P.
4. Remove the outlet assembly from the vehicle.

Installation Procedure




1. Install the outlet assembly to the I/P.






Notice: Refer to Fastener Notice.

2. Install the retaining screw.

Tighten the screw to 2.5 N.m (22 lb in).




3. Install the I/P access cover.
