Seat Belt Tension Sensor
Seat Belt Tension Sensor

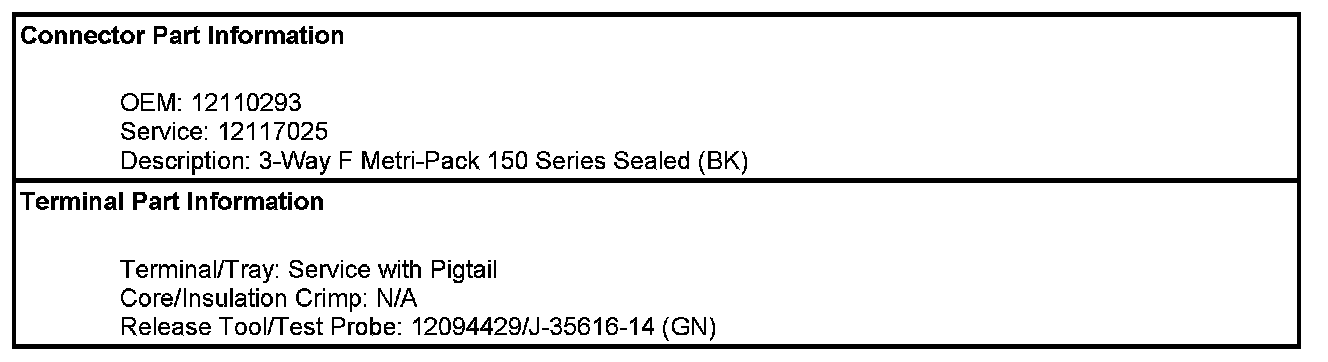

Component Connector End Views - Continued

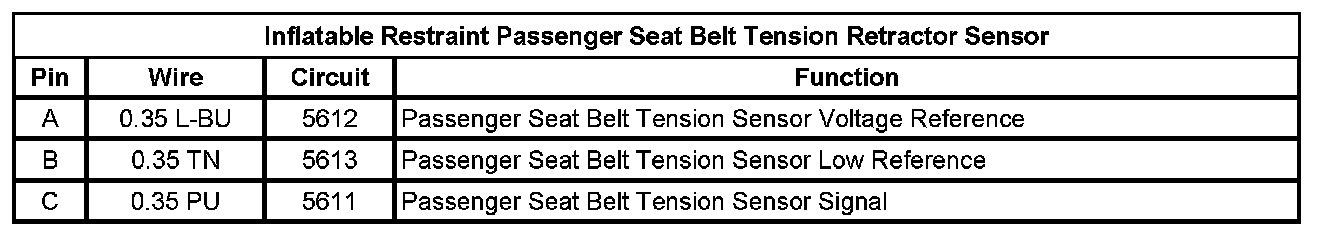

Inflatable Restraint Passenger Seat Belt Tension Retractor Sensor
