Pedal Positioning System
>>
Pedal Positioning Switch
Pedal Positioning Switch

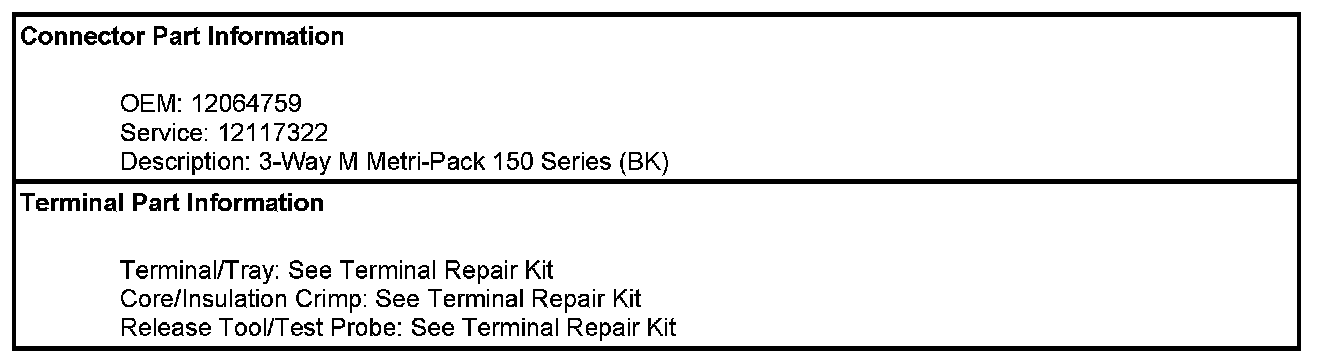

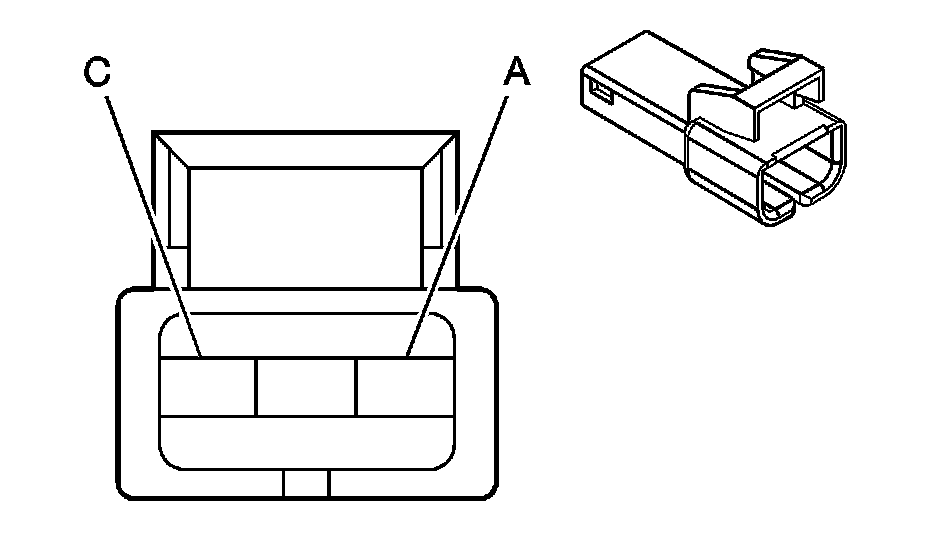

Component Connector End Views

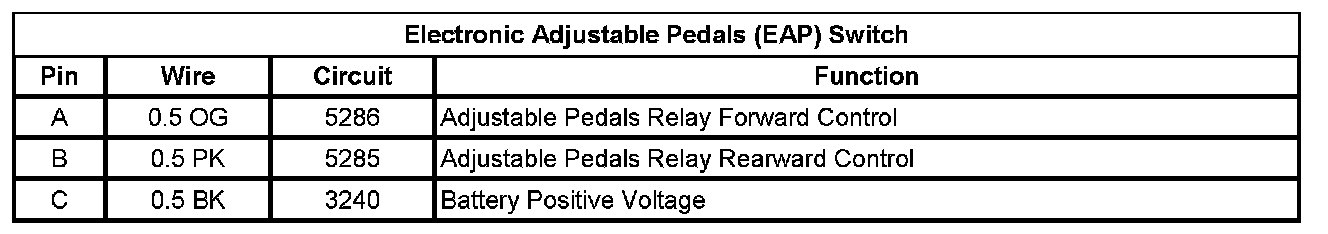

Electronic Adjustable Pedals (EAP) Switch
