Chevy Truck
>>
2008
>>
TrailBlazer 4WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Pedal Positioning System
>>
Pedal Positioning Relay
Pedal Positioning Relay

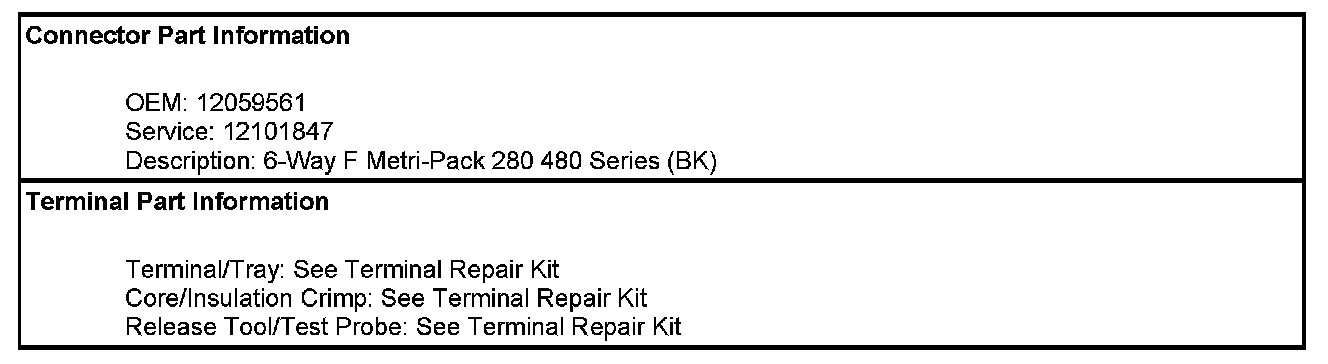

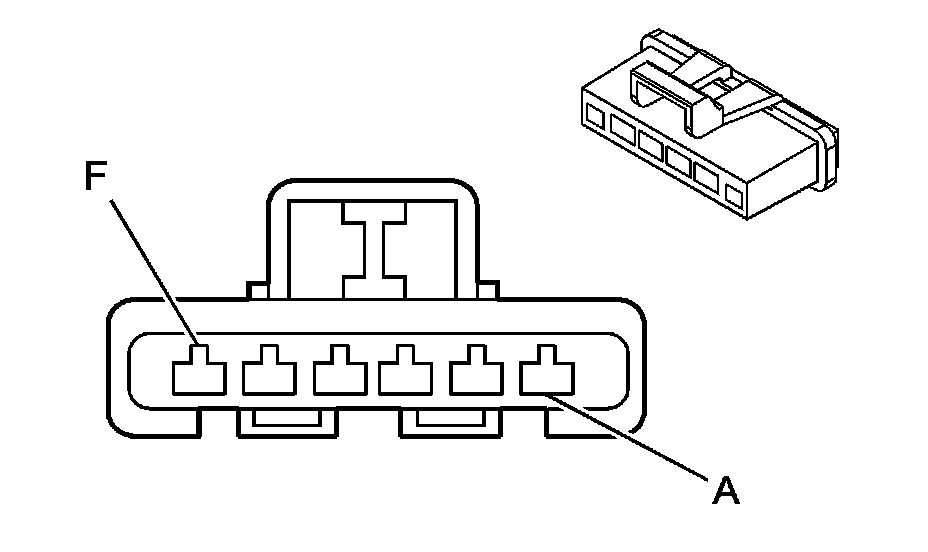

Component Connector End Views

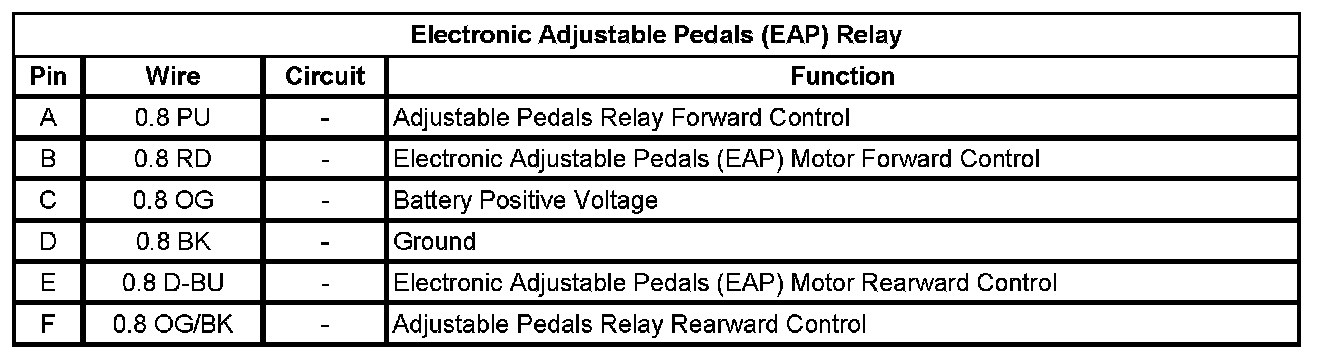

Electronic Adjustable Pedals (EAP) Relay
