Lock Cylinder Switch
Lock Cylinder Switch
Component Connector End Views - Continued

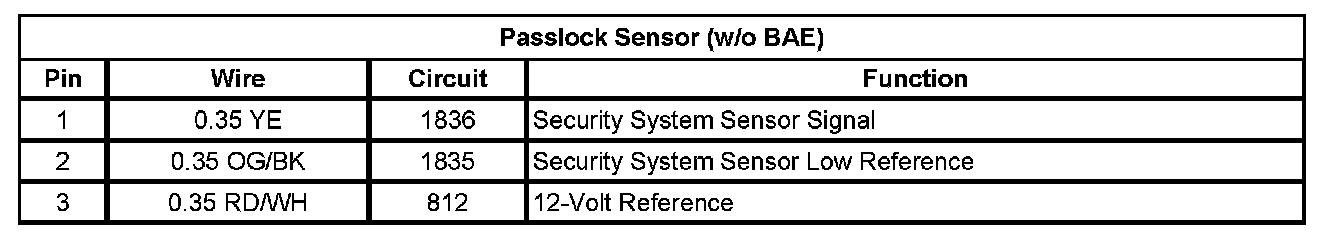

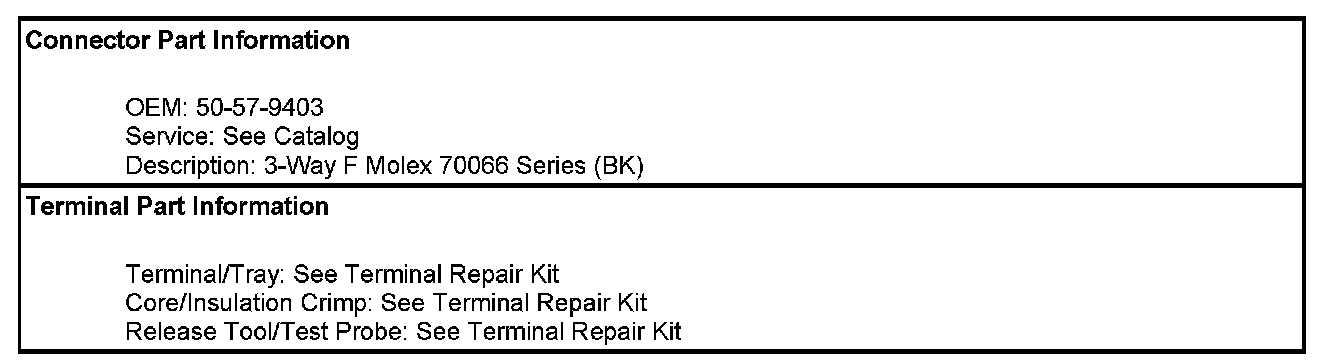

Passlock Sensor (w/o BAE)
