Chevy Truck
>>
2008
>>
TrailBlazer 4WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC
Component Connector End Views

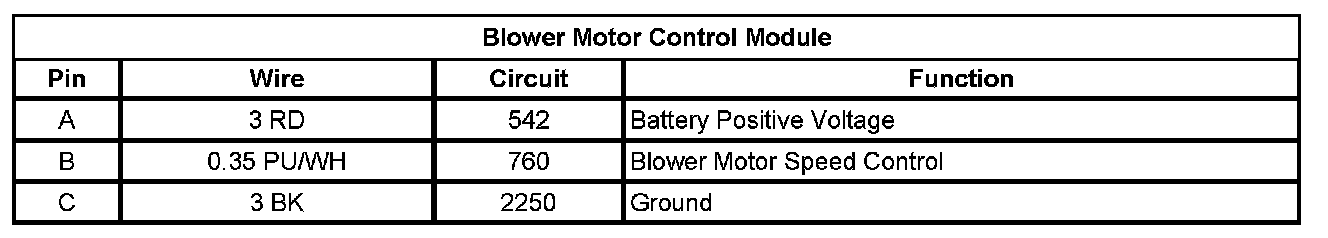

Blower Motor Control Module
