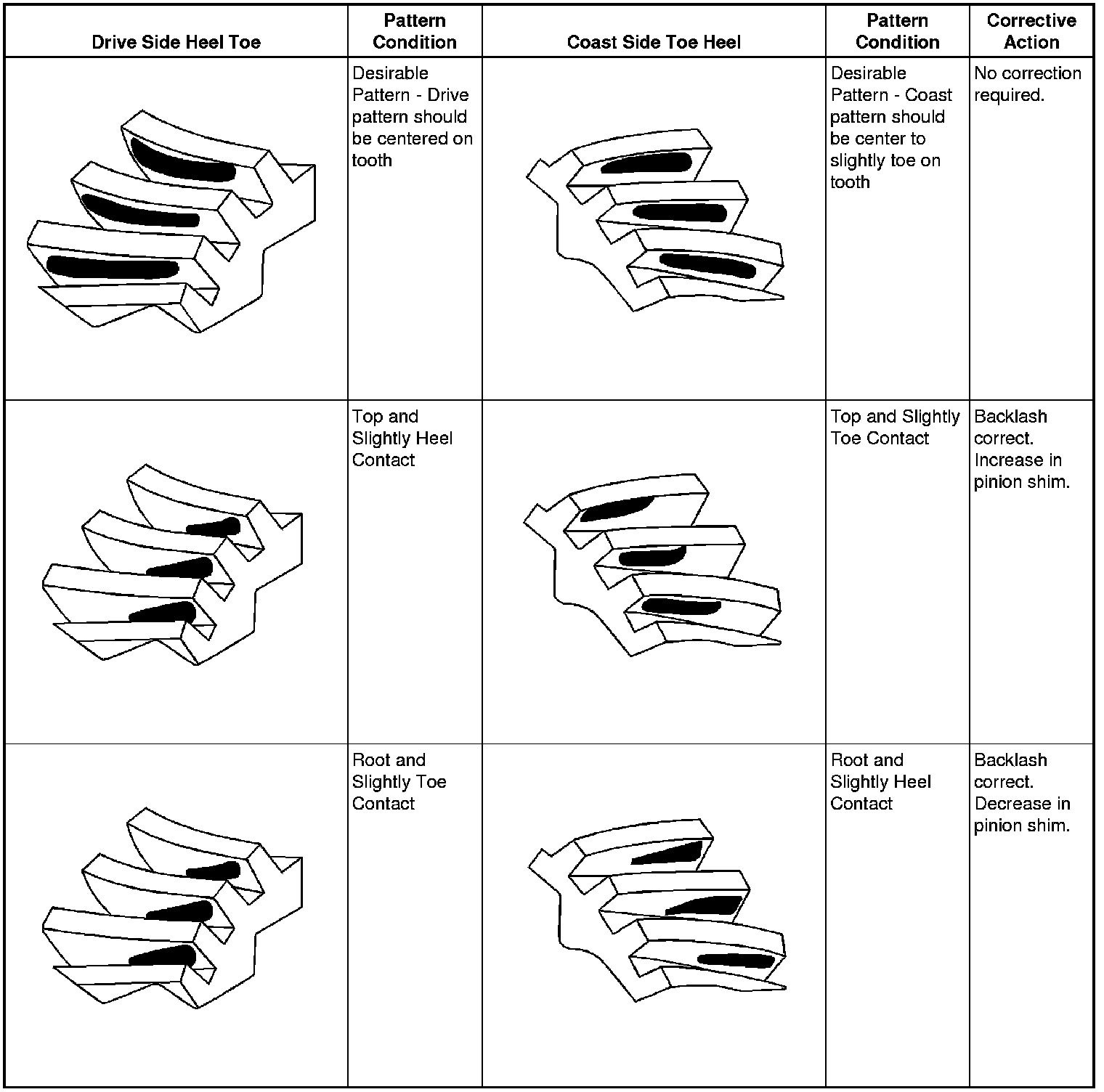

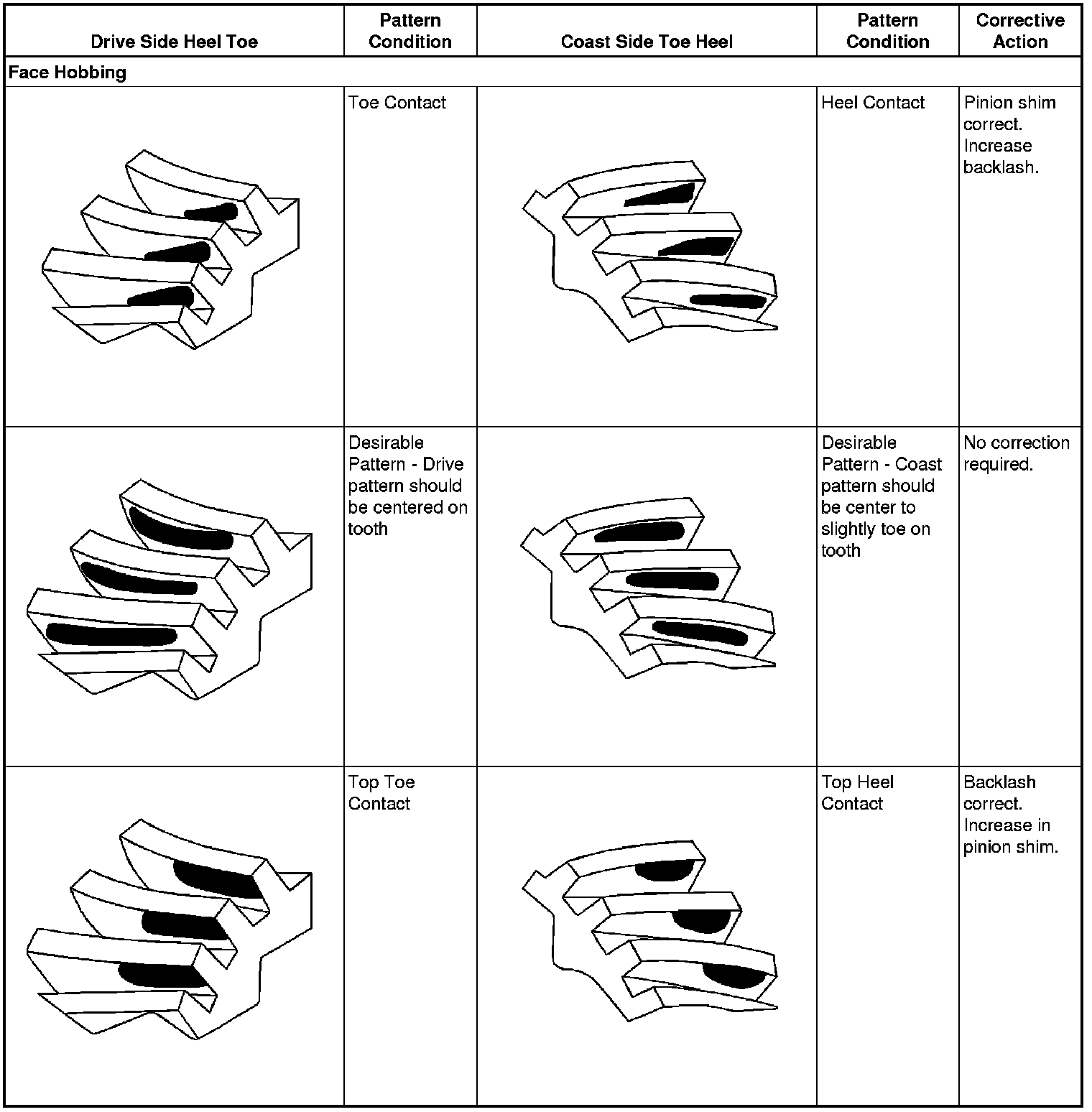

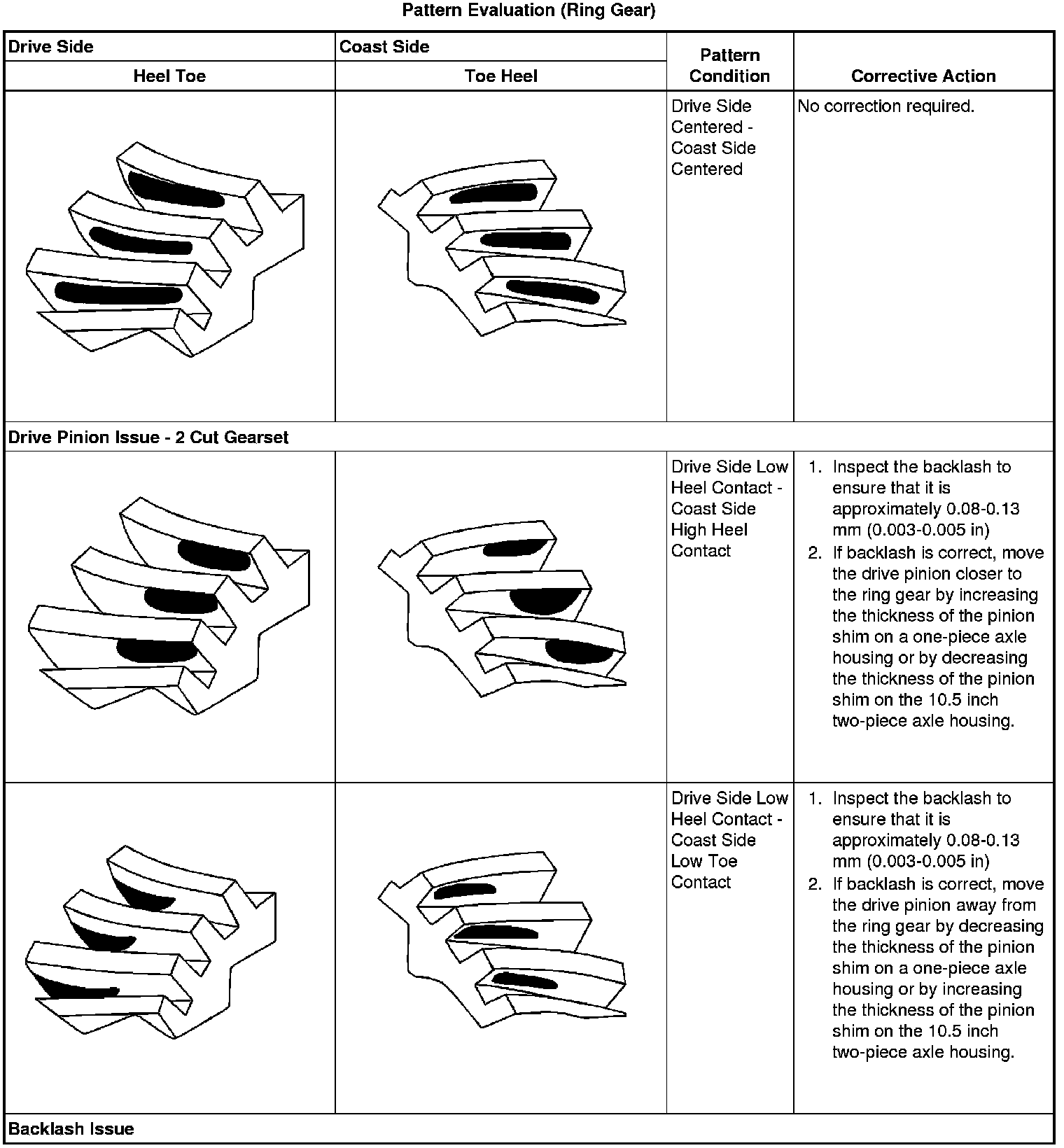

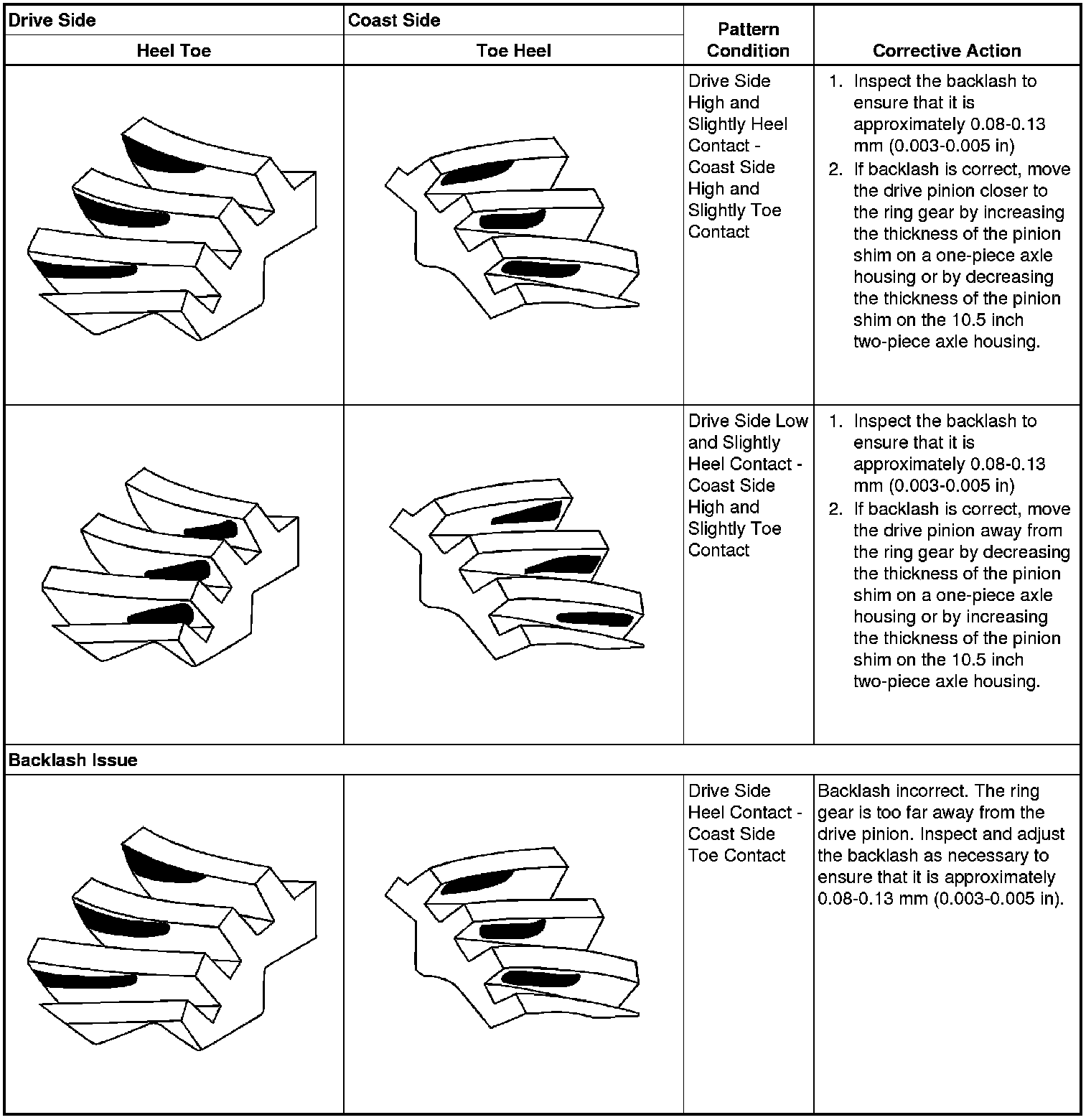

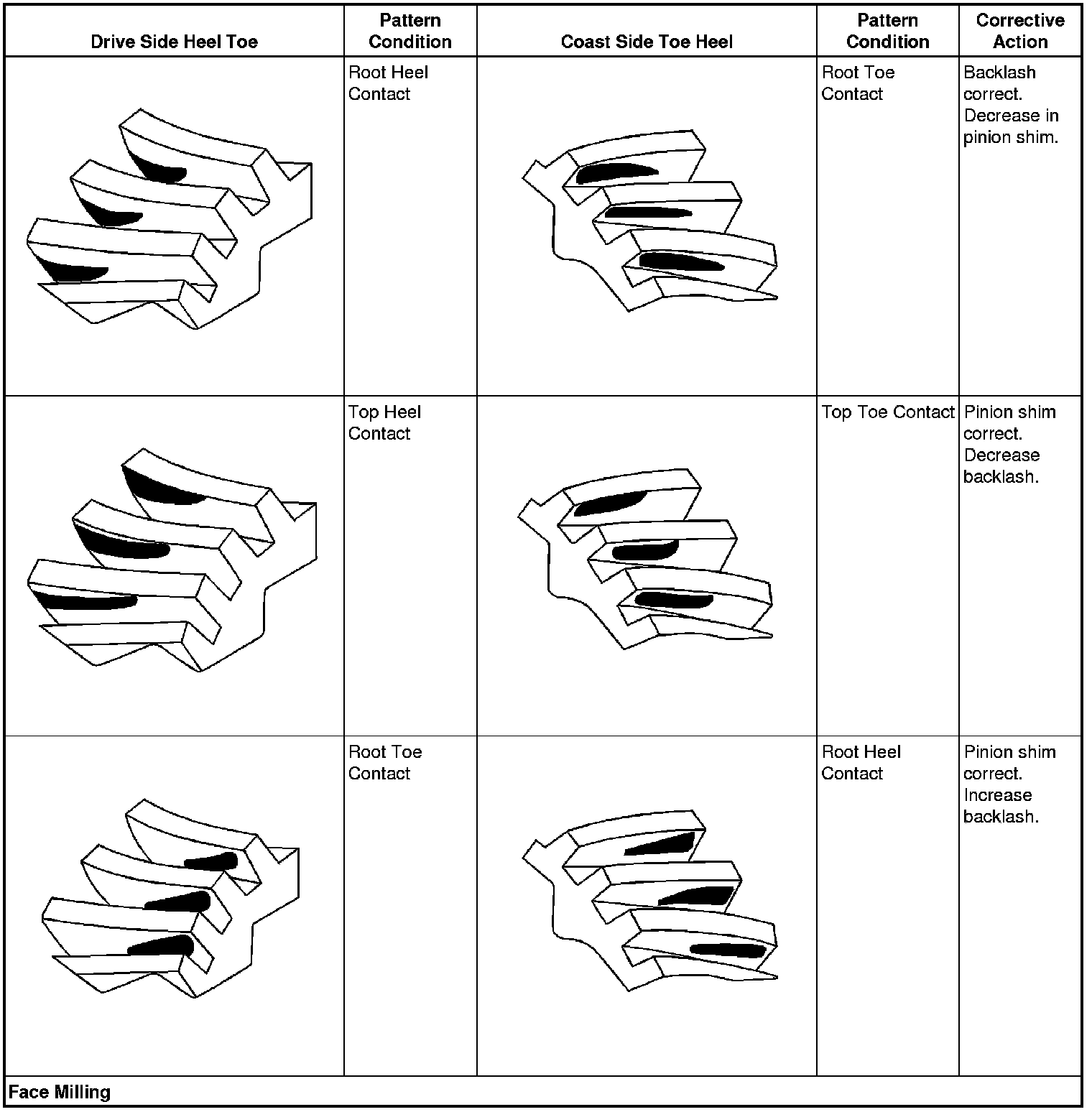

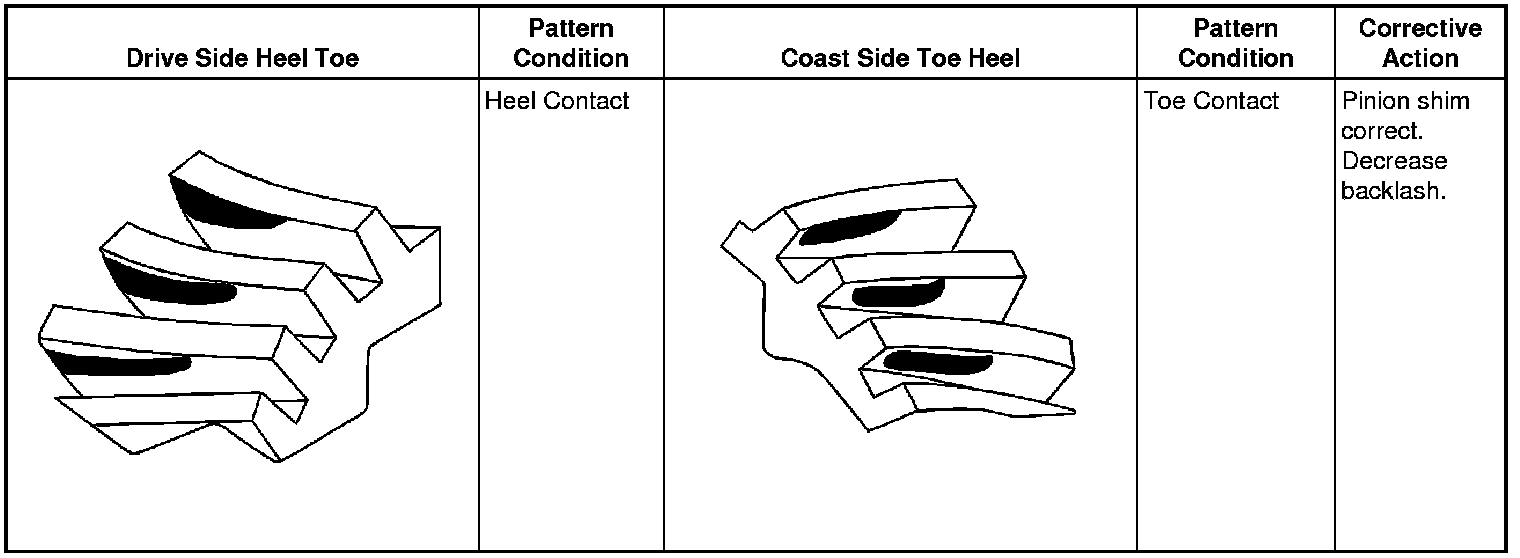

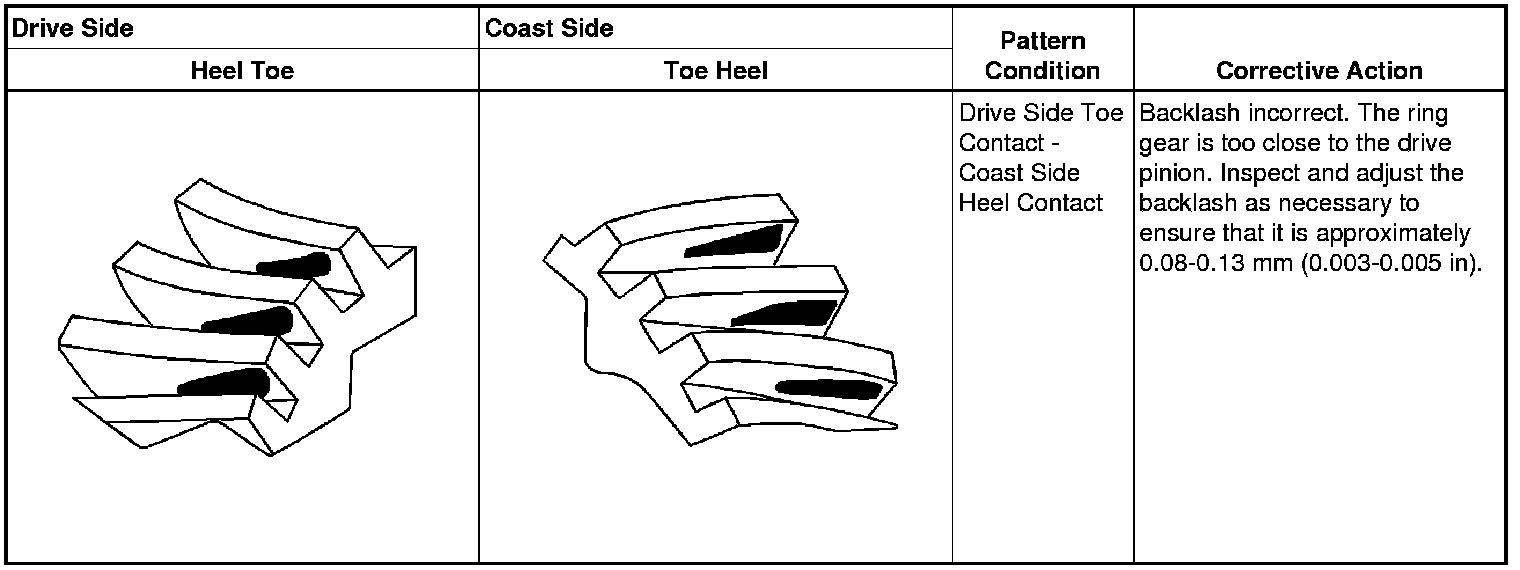

Gear Tooth Contact Pattern Inspection
Gear Tooth Contact Pattern Inspection
Gear Tooth Contact Pattern Inspection
