Accelerator Pedal Position Sensor
>>
Pedal Travel Sensor (HP2)

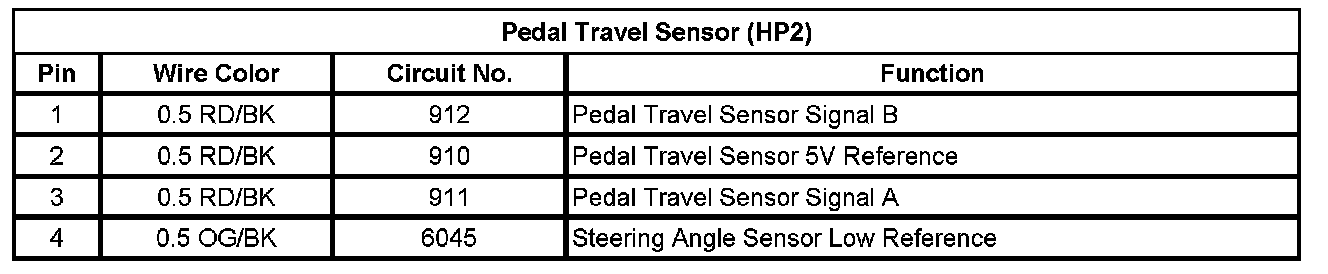

Pedal Travel Sensor (HP2)

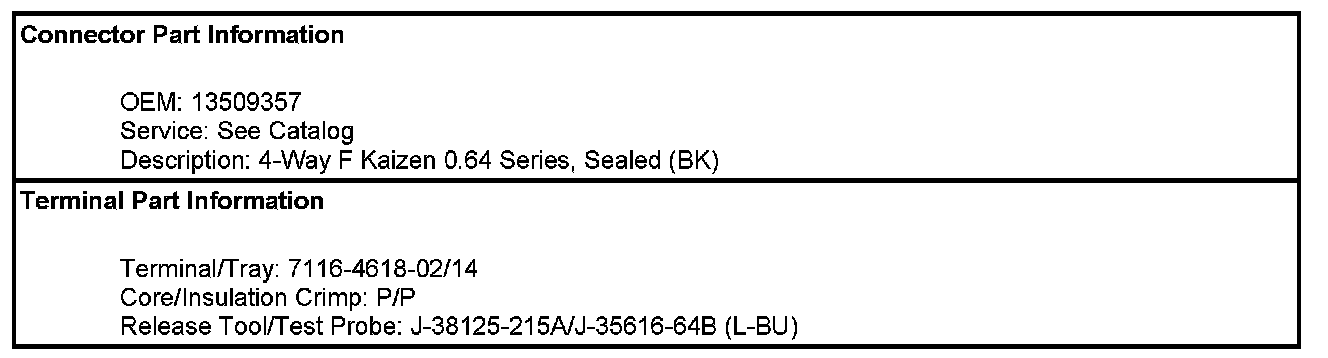

Component Connector End Views - Continued
Pedal Travel Sensor (HP2)
