Transfer Case Actuator

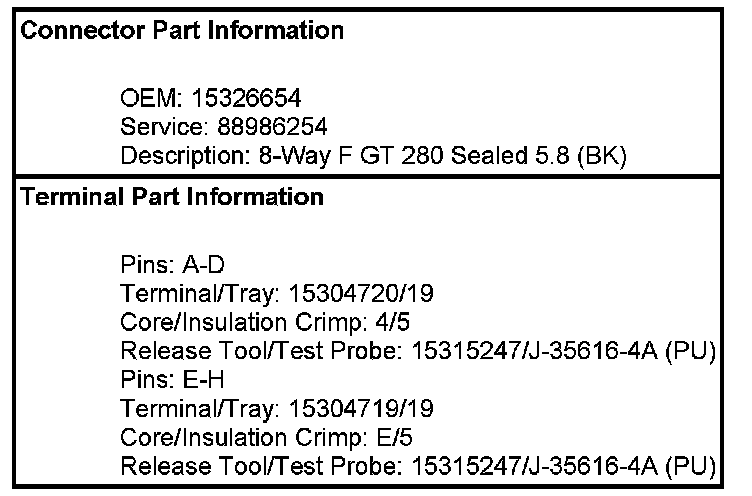

Component Connector End Views - Continued

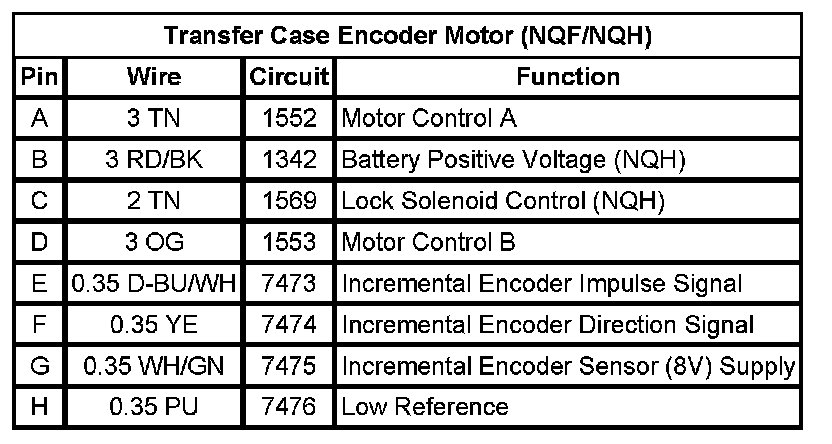

Transfer Case Encoder Motor (NQF/NQH)
