Tow Sensor, Antitheft
Tow Sensor, Antitheft

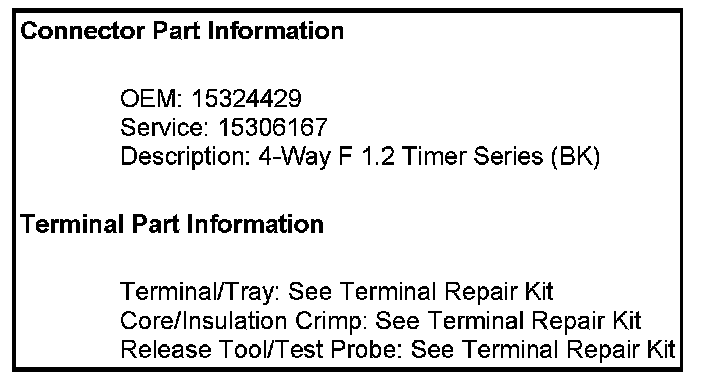

Component Connector End Views

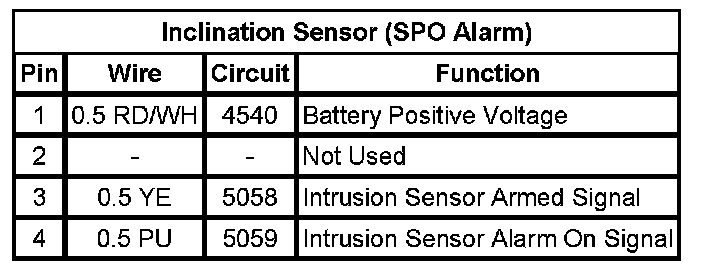

Inclination Sensor (SPO Alarm)
