Shock Sensor, Antitheft
Shock Sensor, Antitheft
Component Connector End Views - Continued

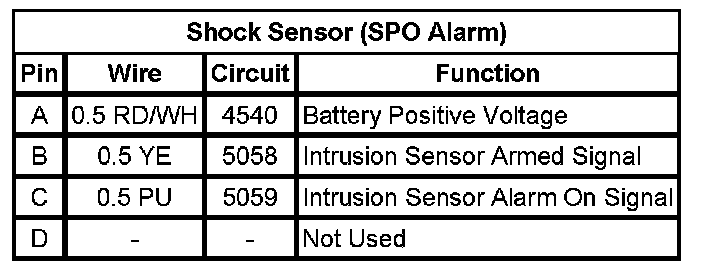

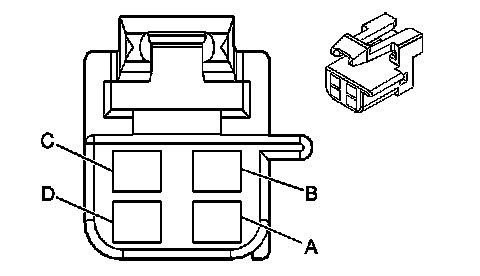

Shock Sensor
(SPO Alarm)
