Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2008
>>
Silverado 1500 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brakes and Traction Control
>>
Brake Master Cylinder
Brake Master Cylinder

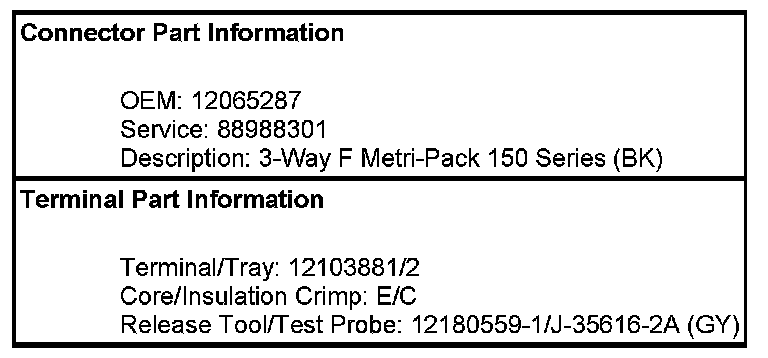

Component Connector End Views

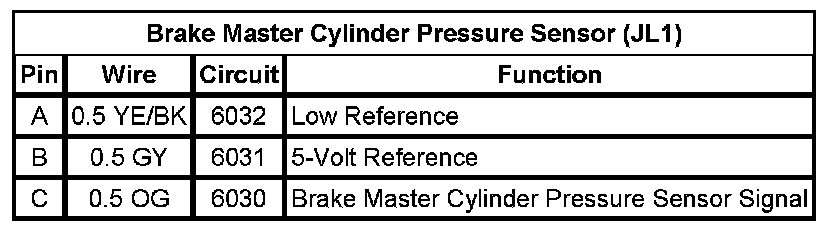

Brake Master Cylinder
Pressure Sensor (JL1)
