Curiosii for ever!: Car repair manuals for everyone.
Home >> Chevy Truck >> 2008 >> Silverado 1500 4WD V8-4.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID >> I/P Fuse Block

I/P Fuse Block

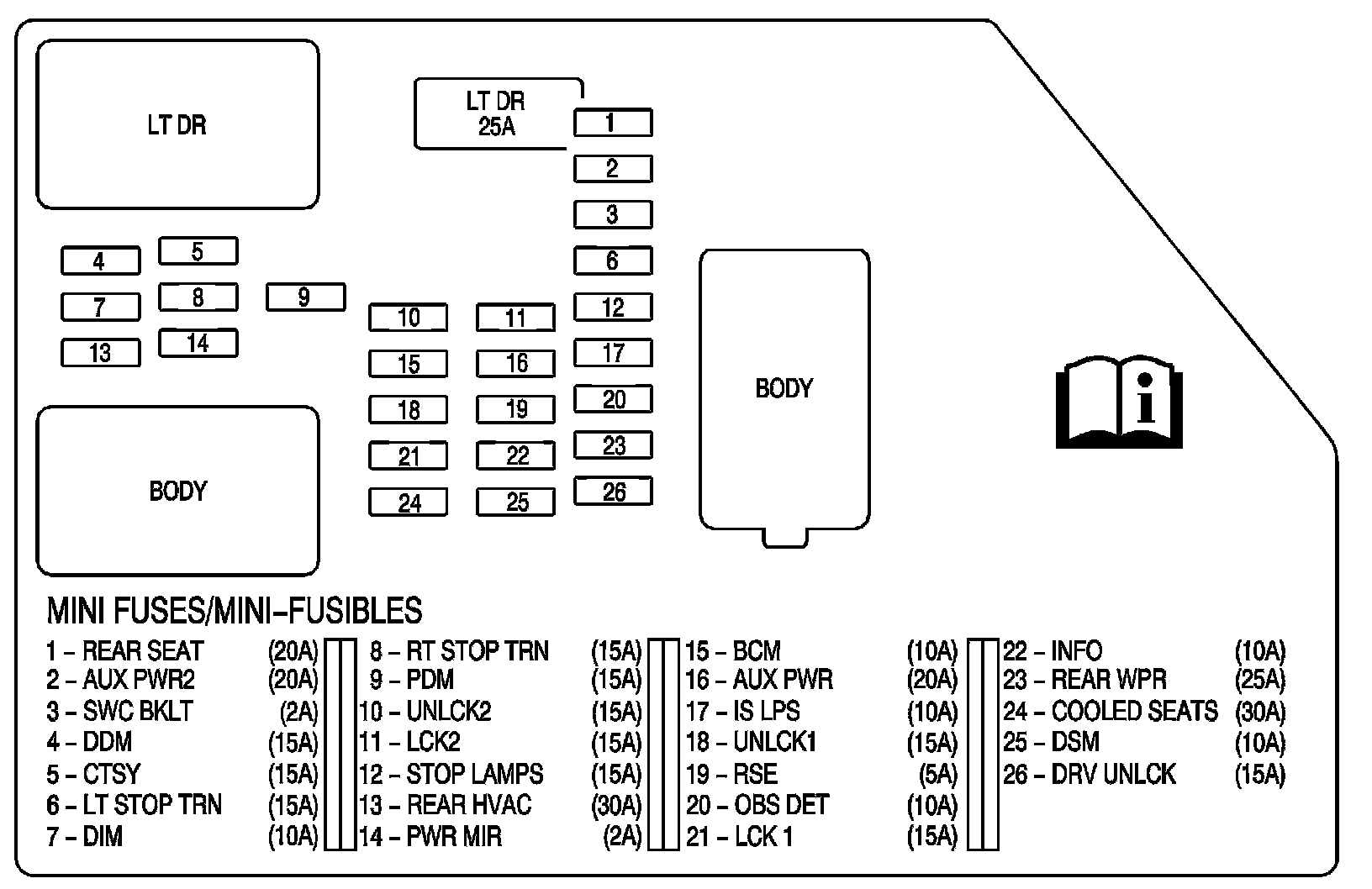

Fuse Block - I/P Label

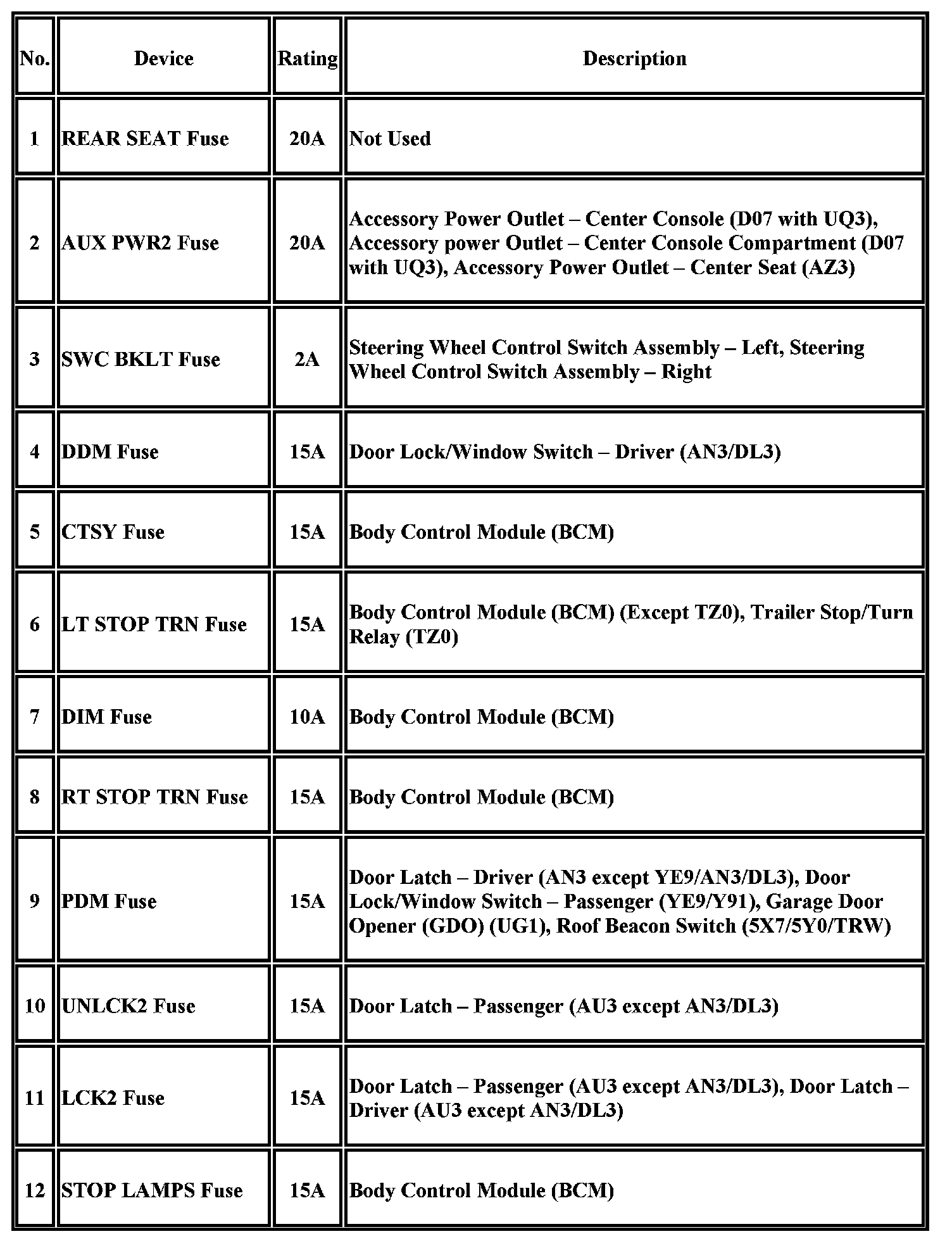

Fuse Block - I/P Label Usage
