Multiple Junction Connector
>>
X300-X399
>>
X319
X319

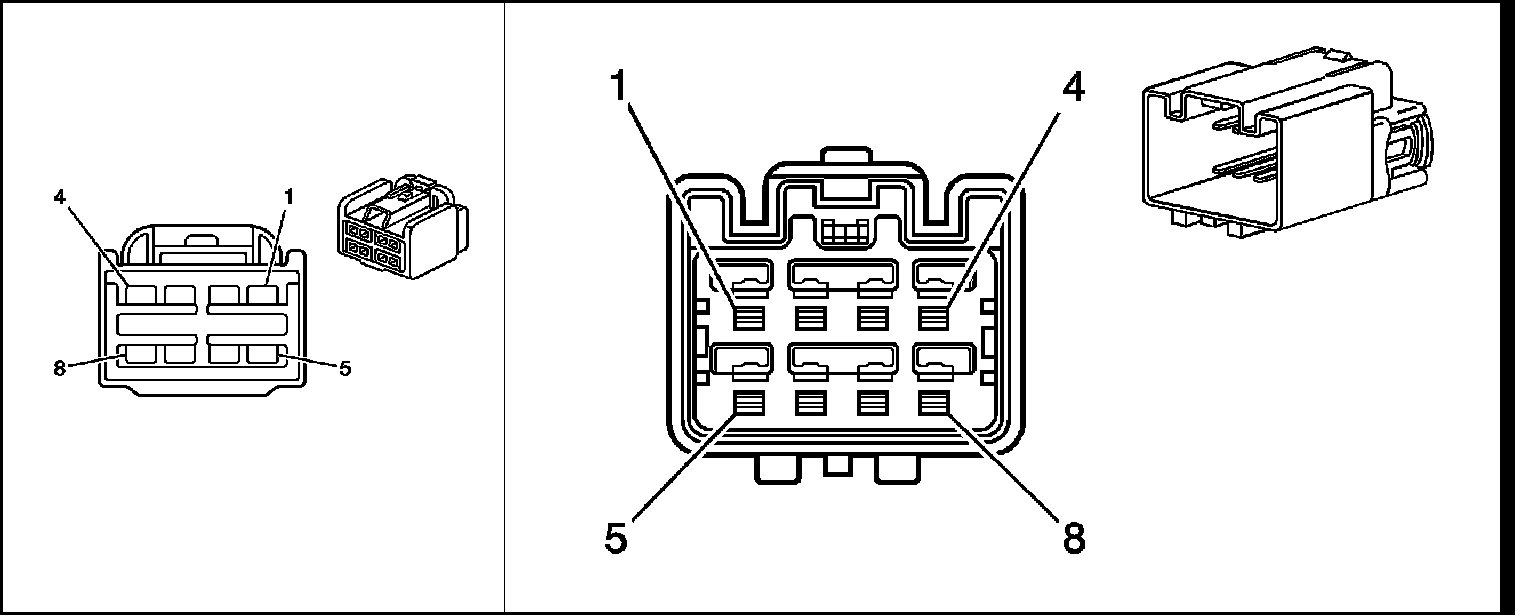

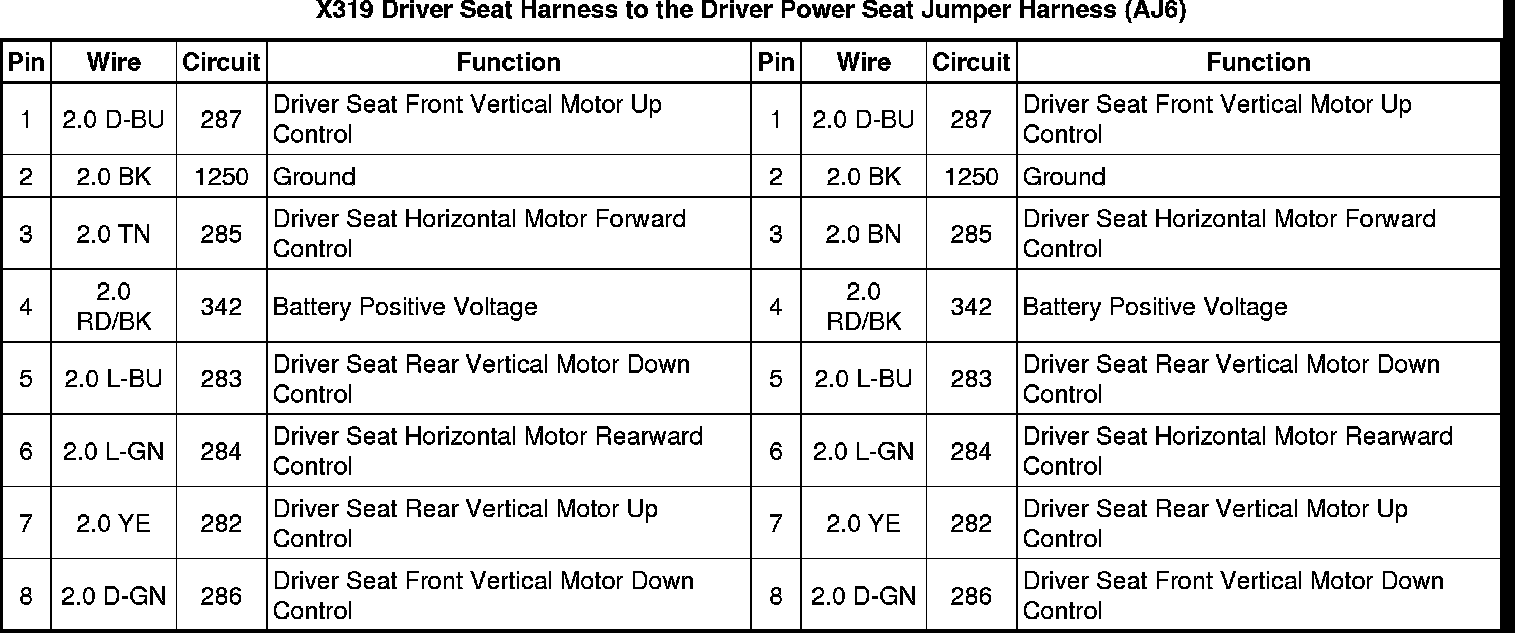

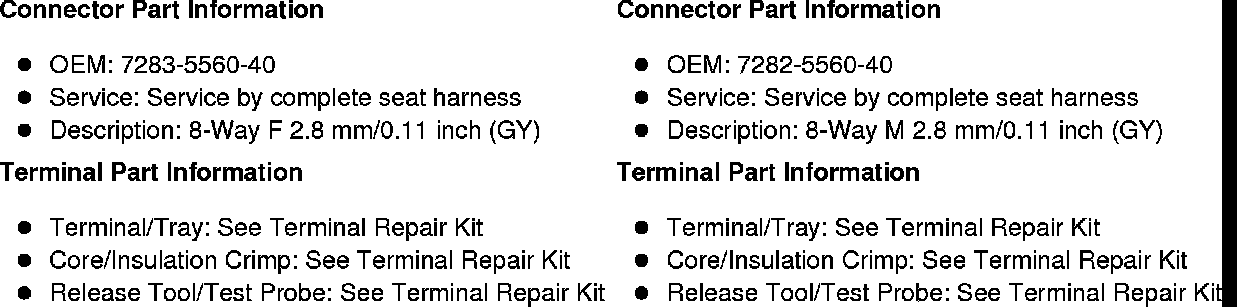

X319 Driver Seat Harness to the Driver Power Seat Jumper Harness (AJ6)
