Multiple Junction Connector
>>
X300-X399
>>
X300
X300

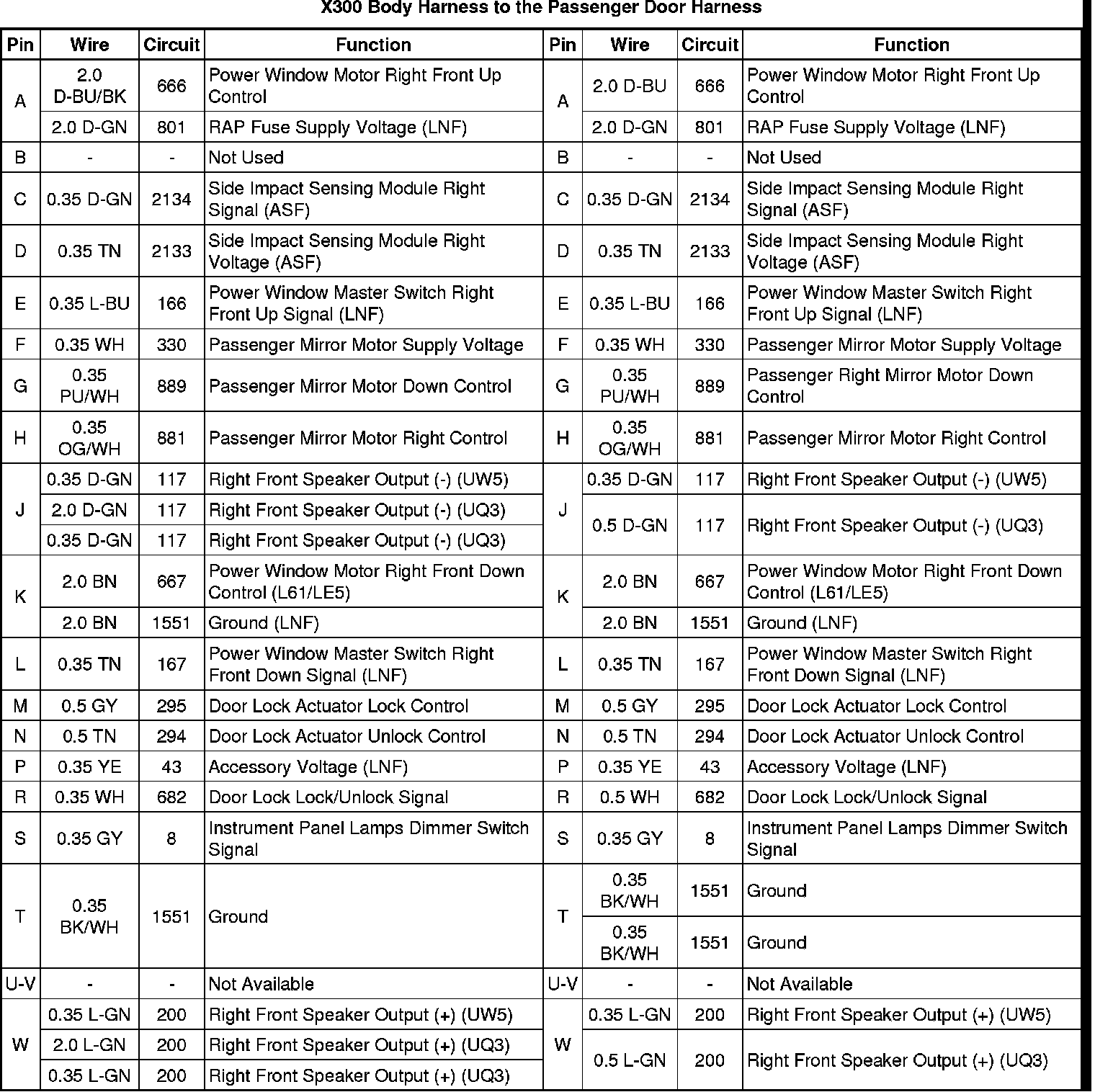

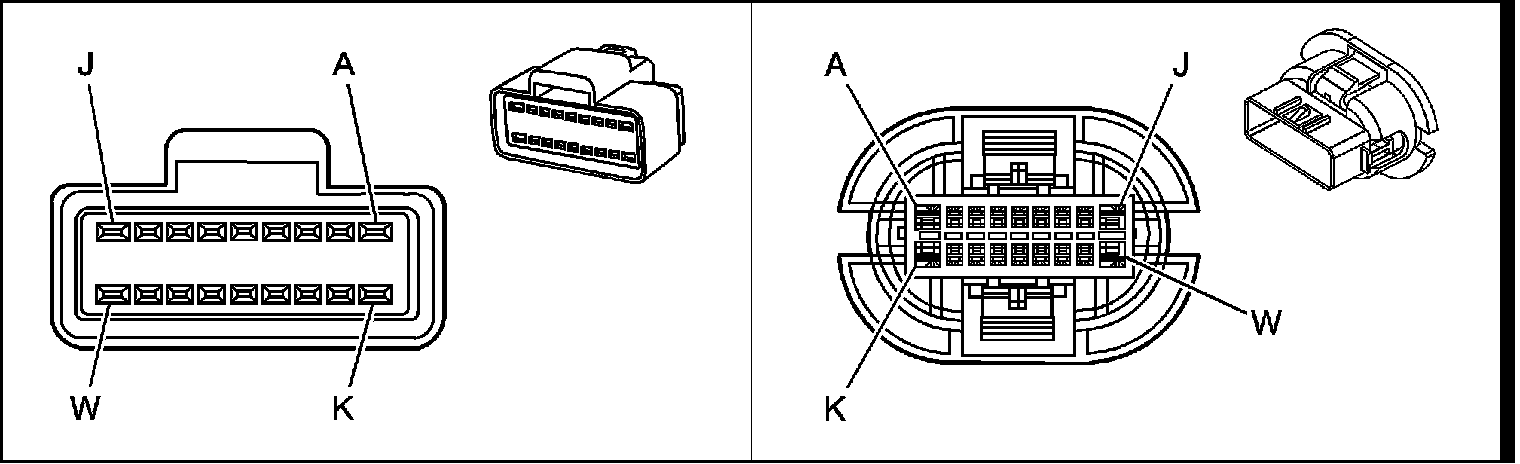

X300 Body Harness to the Passenger Door Harness
