Chevy Truck
>>
2008
>>
HHR L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X200-X299
>>
X206
X206

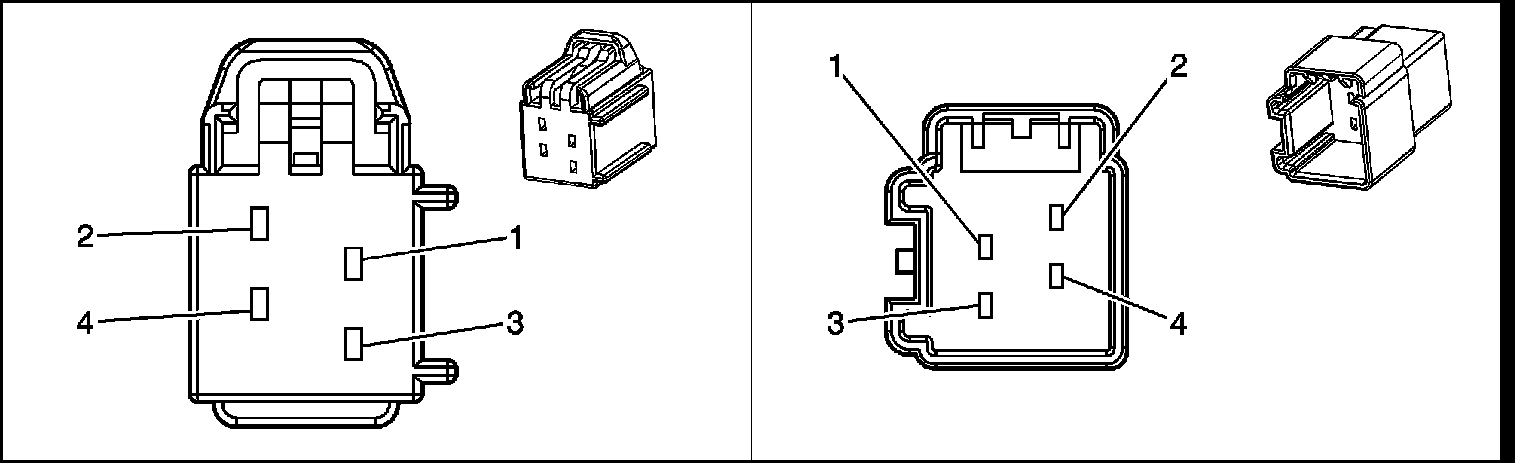

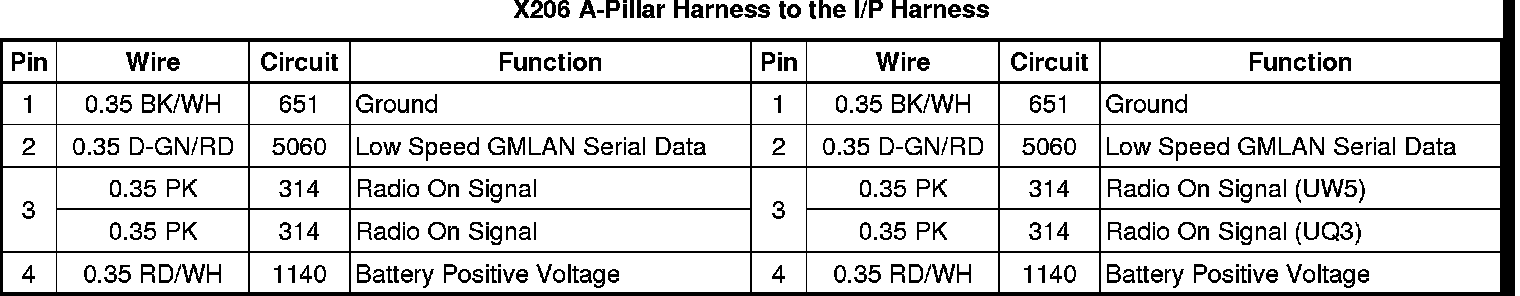

X206 A-Pillar Harness to the I/P Harness
