Home
>>
Chevy Truck
>>
2008
>>
HHR L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X200-X299
>>
X200
X200

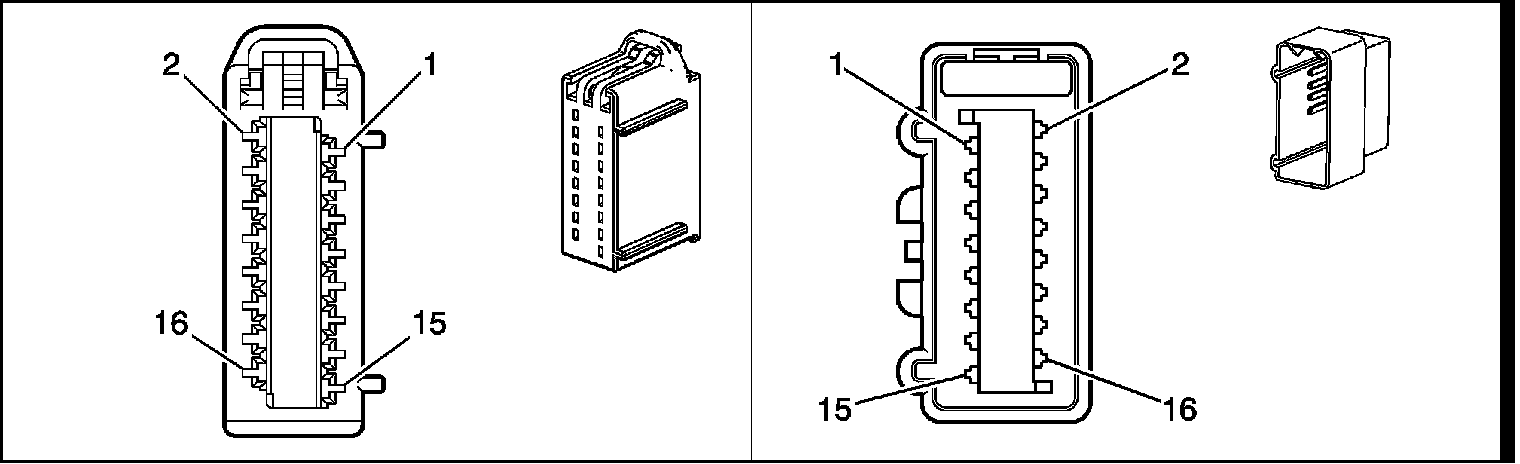

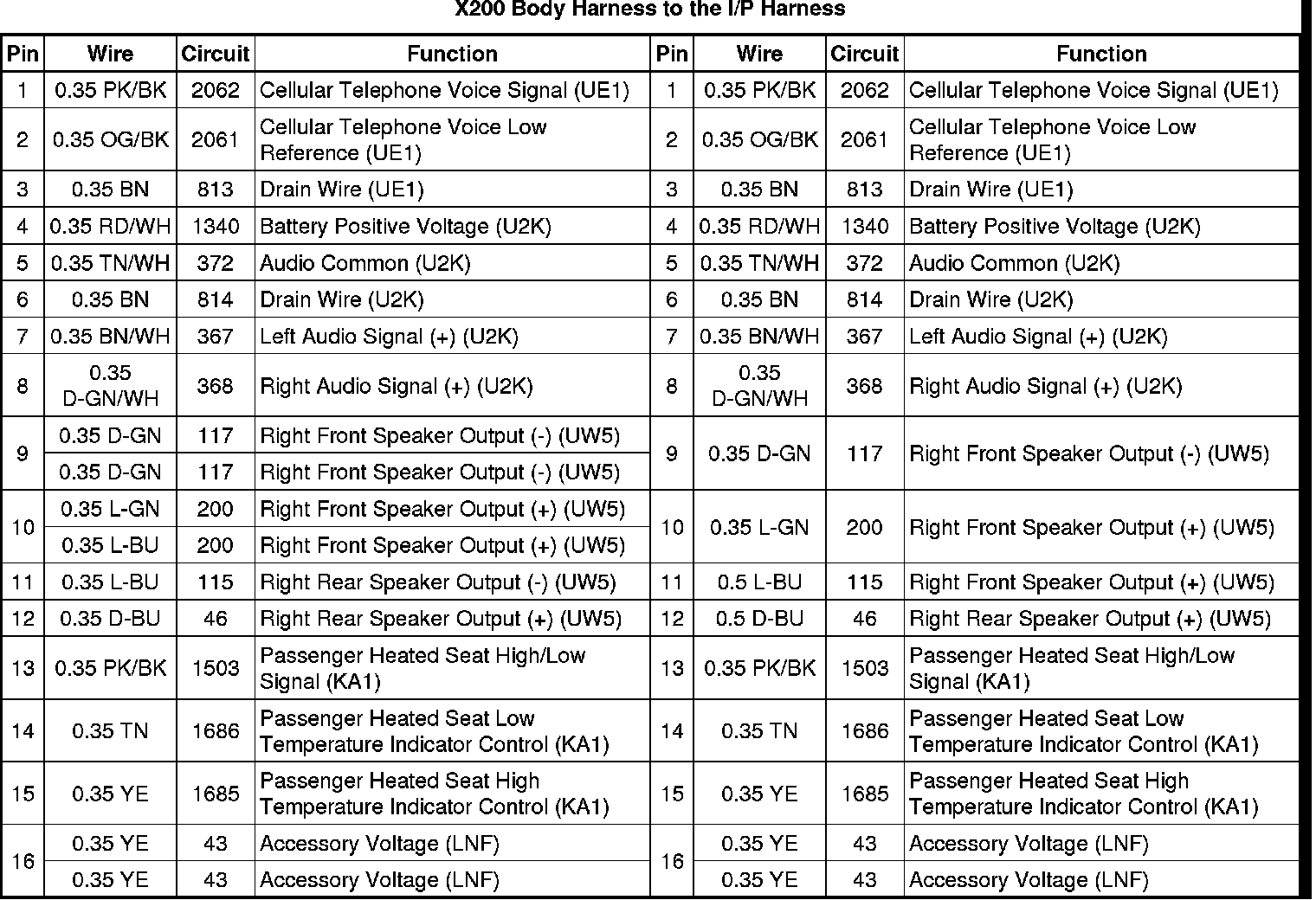

X200 Body Harness to the I/P Harness
