Home
>>
Chevy Truck
>>
2008
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
X100-X199
>>
X121
X121

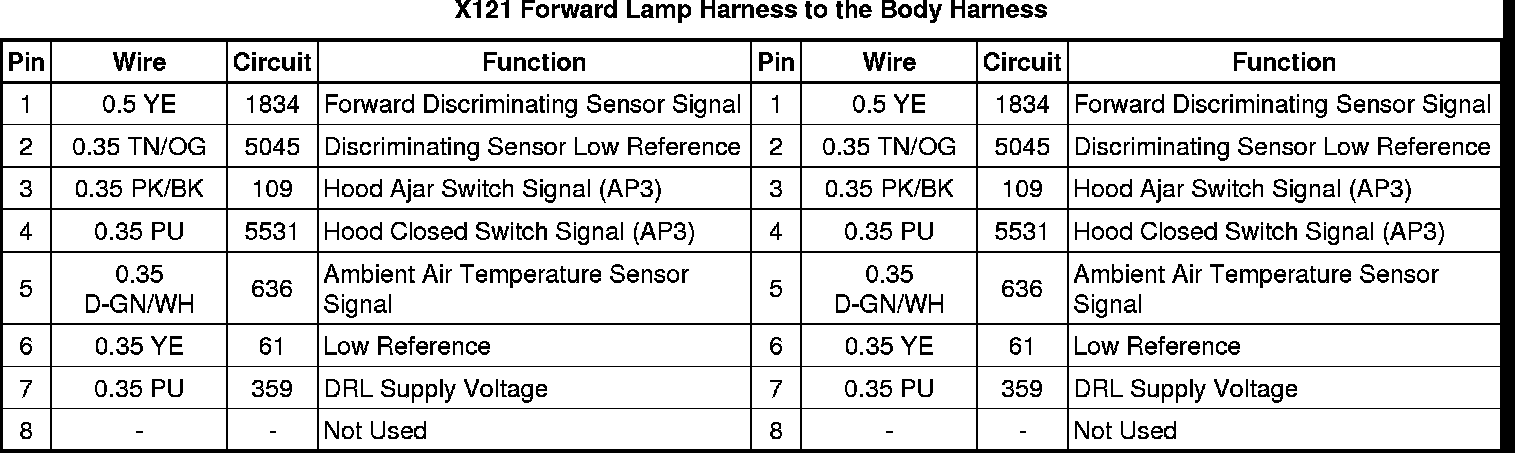

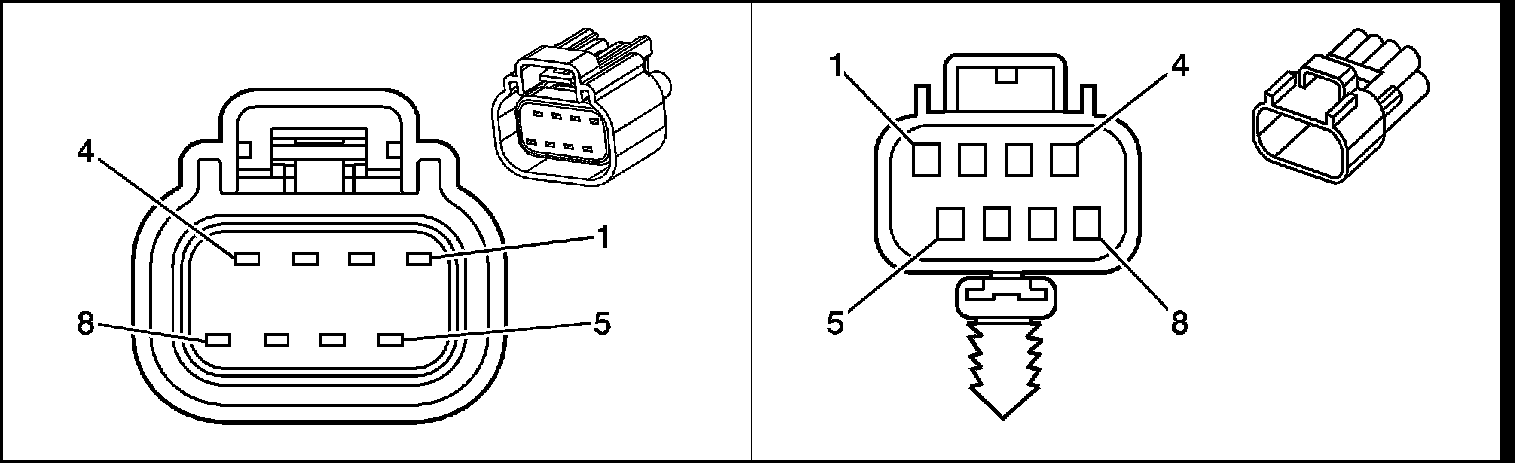

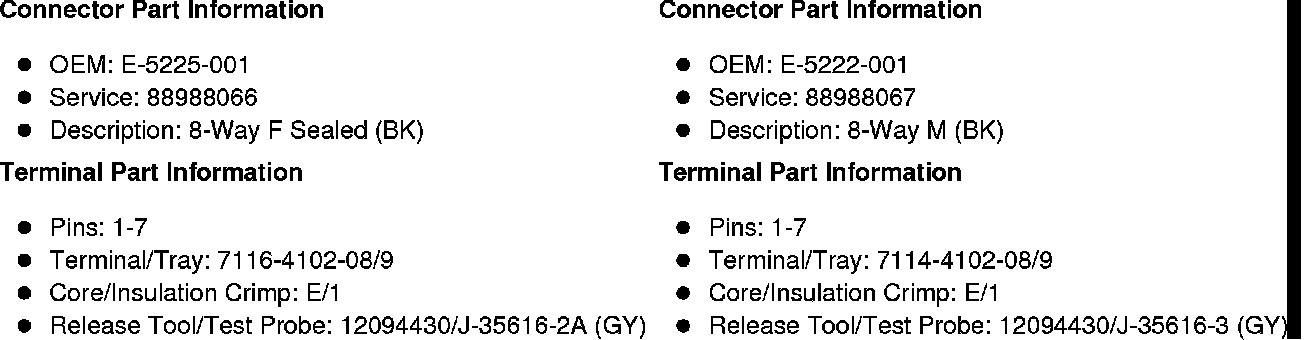

X121 Forward Lamp Harness to the Body Harness
