Multiple Junction Connector
>>
X400-X499
>>
X404
X404

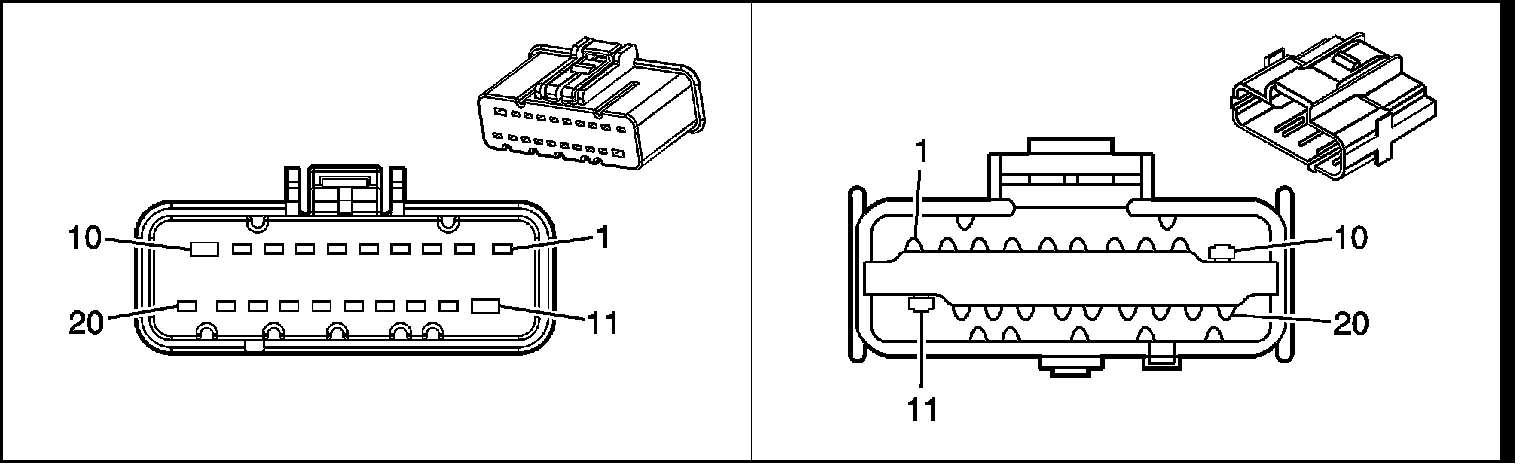

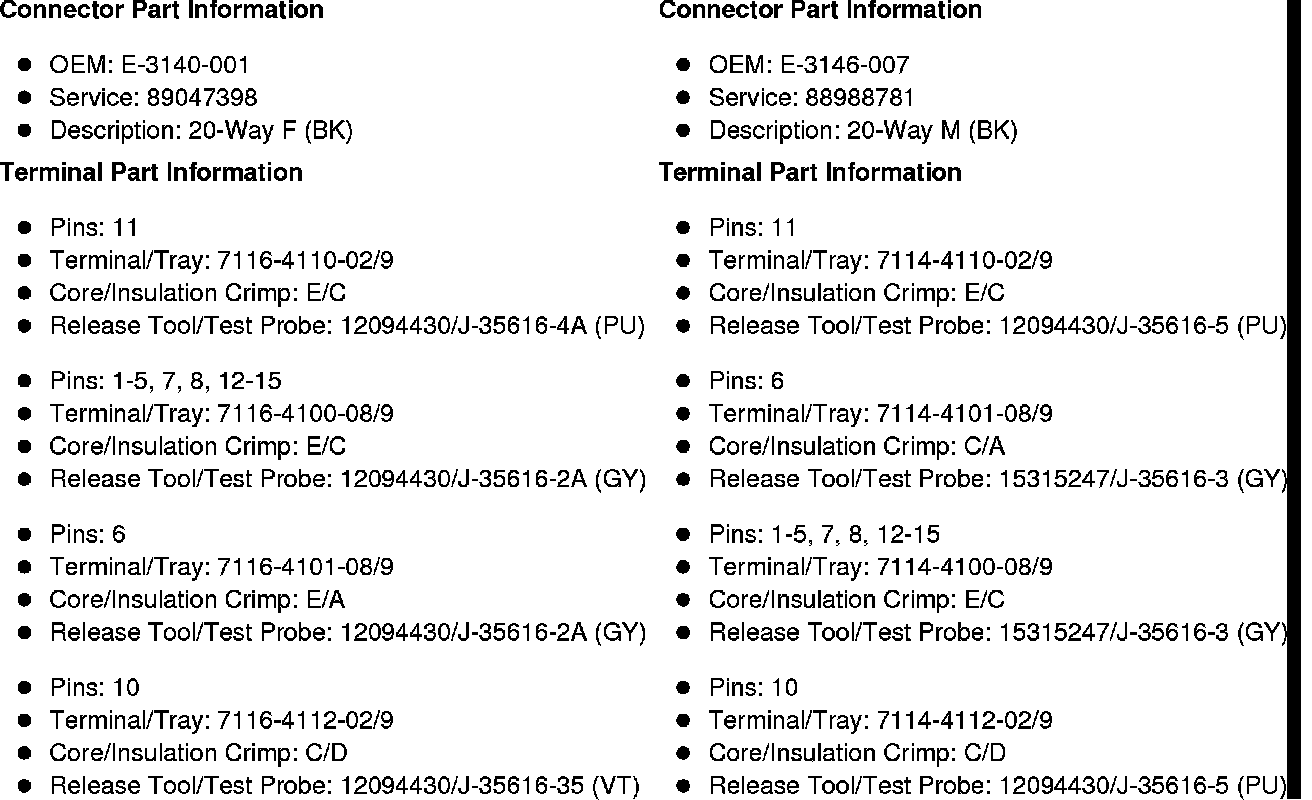

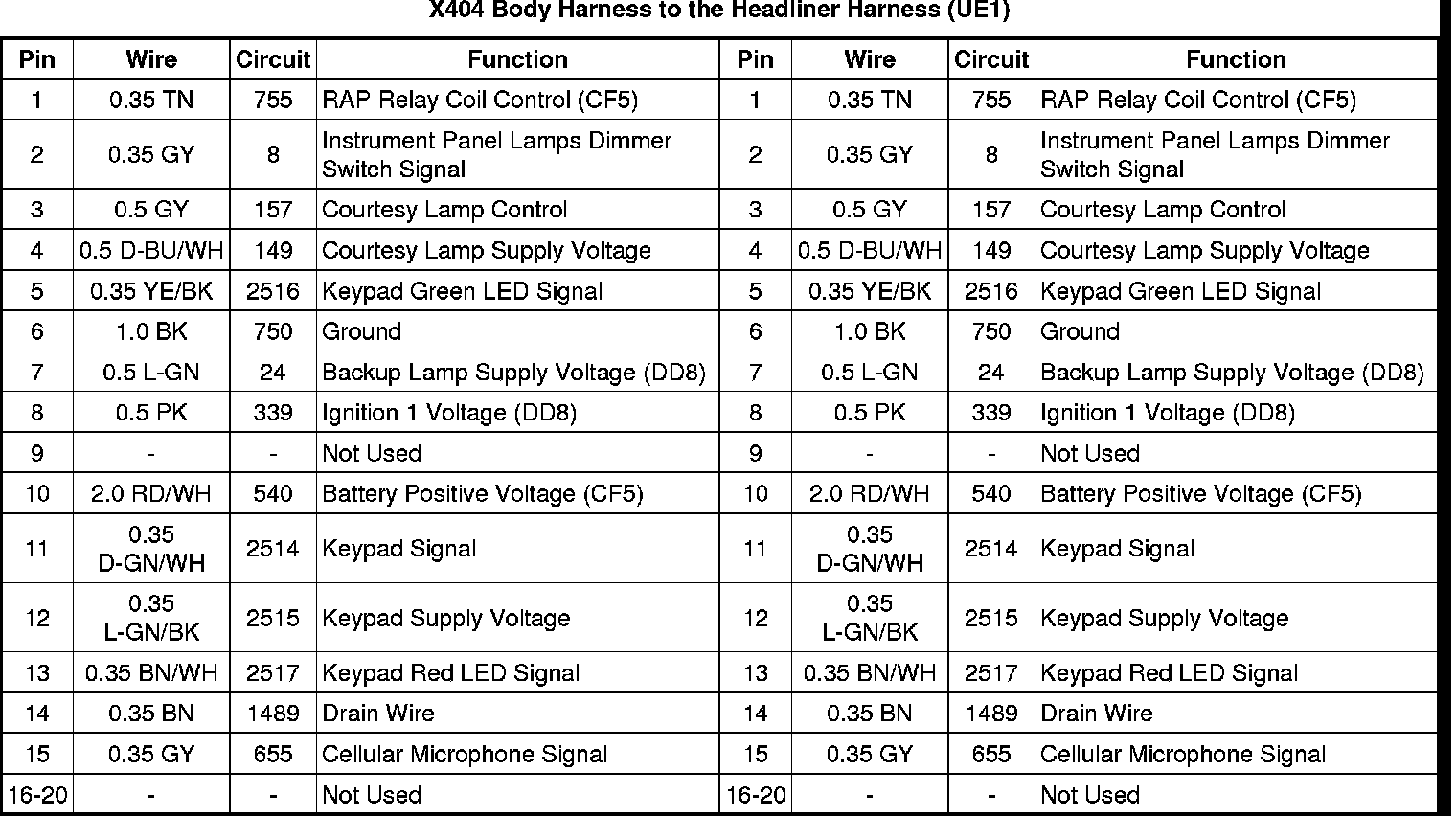

X404 Body Harness to the Headliner Harness (UE1)
