Home
>>
Chevy Truck
>>
2008
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300-X399
>>
X397
X397

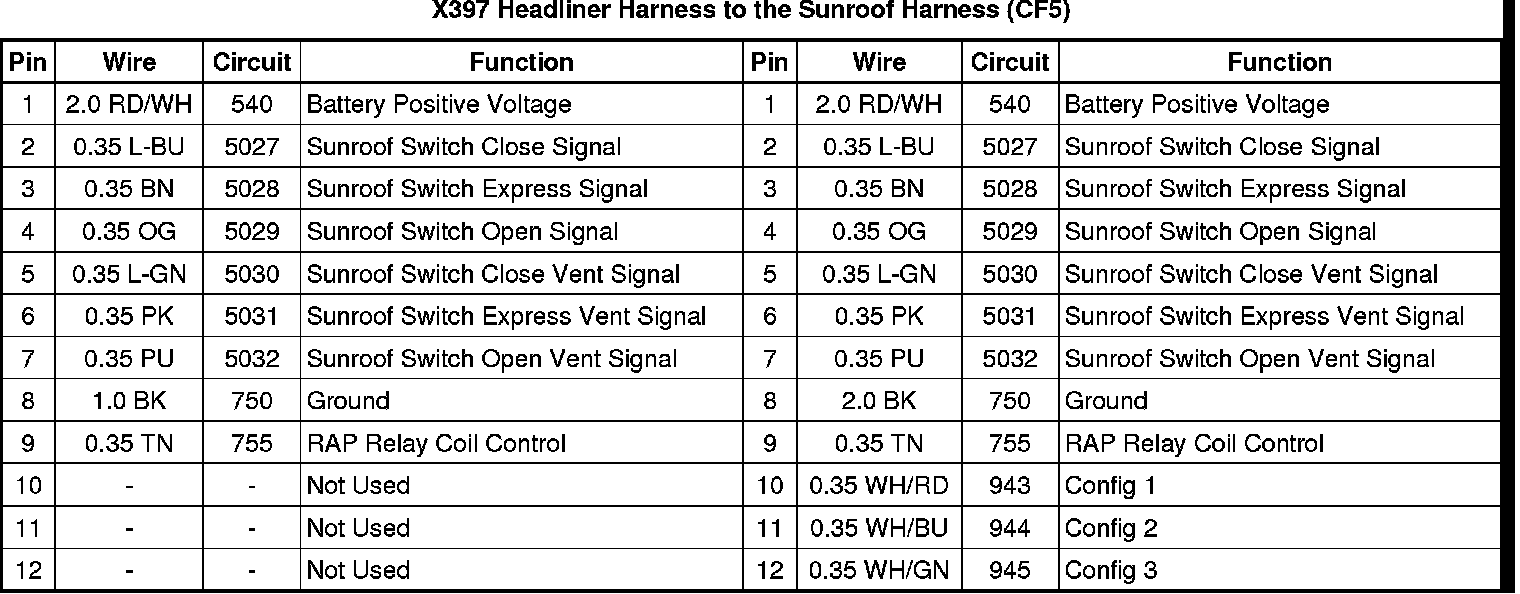

X397 Headliner Harness to the Sunroof Harness (CF5)
