Power Window Motor
Power Window Motor

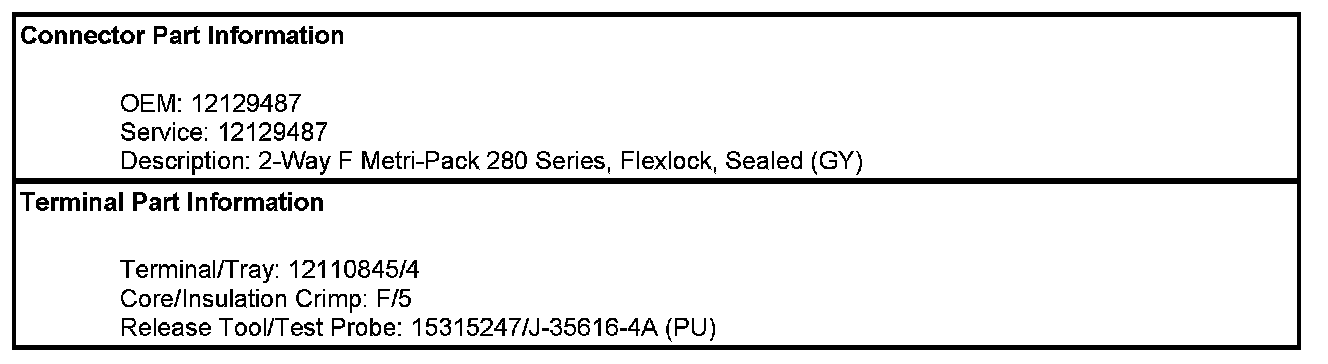

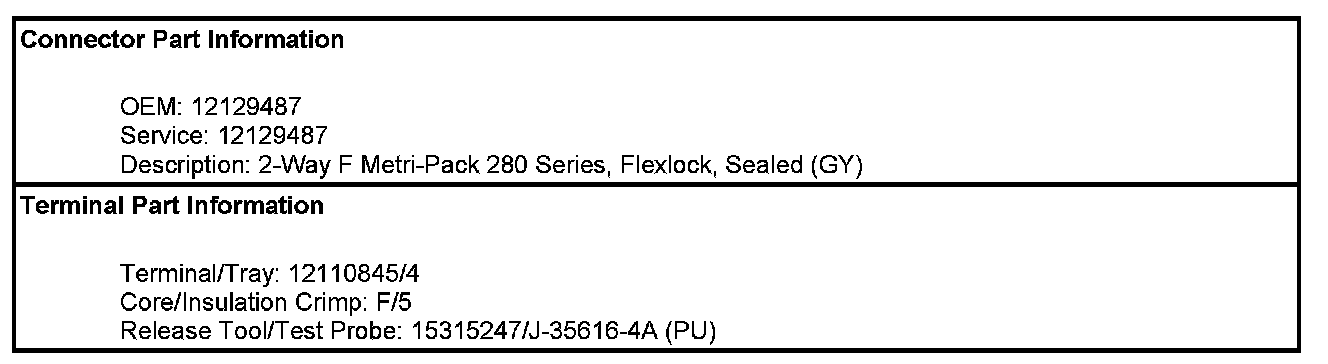

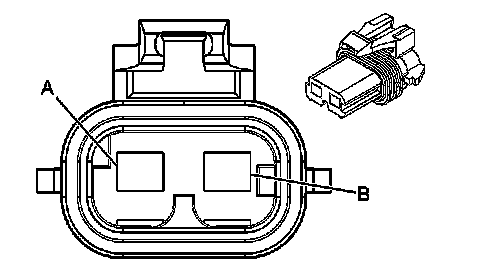

Component Connector End Views - Continued
Window Motor - Driver (A31)

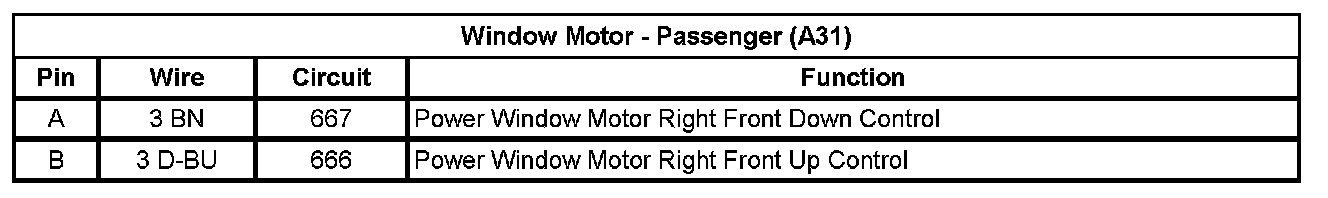

Window Motor - Passenger (A31)
