Chevy Truck
>>
2008
>>
Express 3500 V8-4.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Level Sensor
Fuel Level Sensor

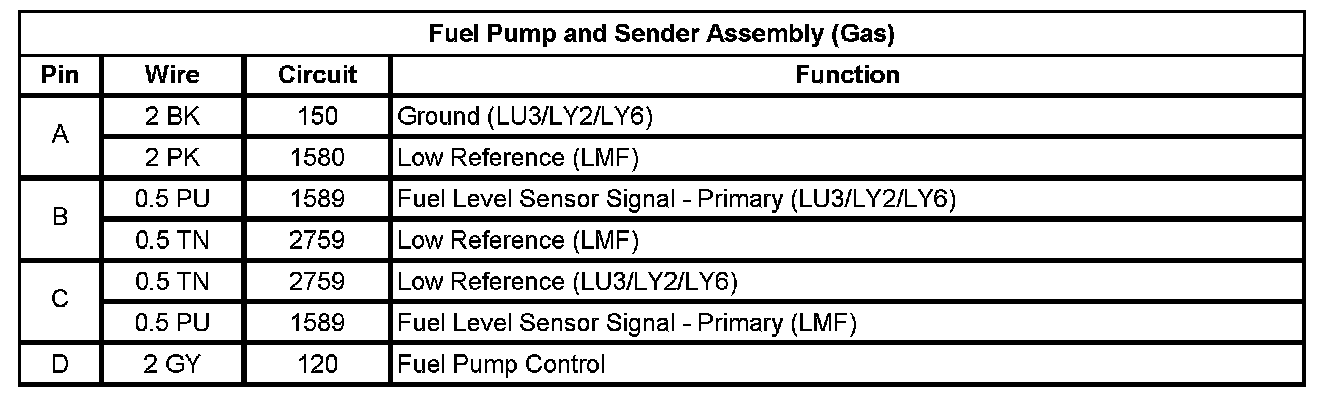

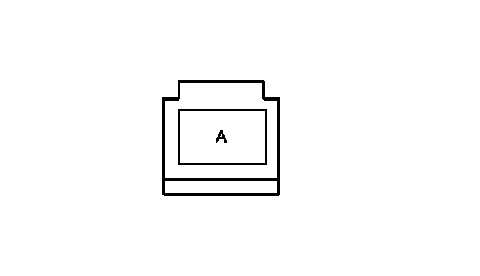

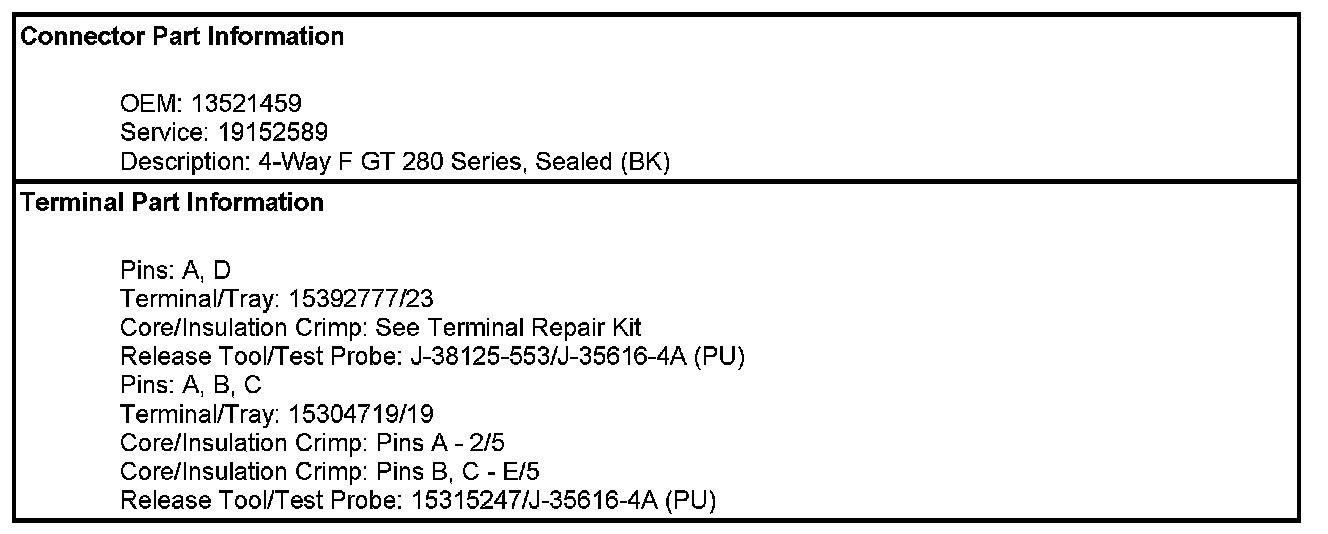

Fuel Pump and Sender Assembly (Gas)
