Home
>>
Chevy Truck
>>
2008
>>
Express 2500 V8-6.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

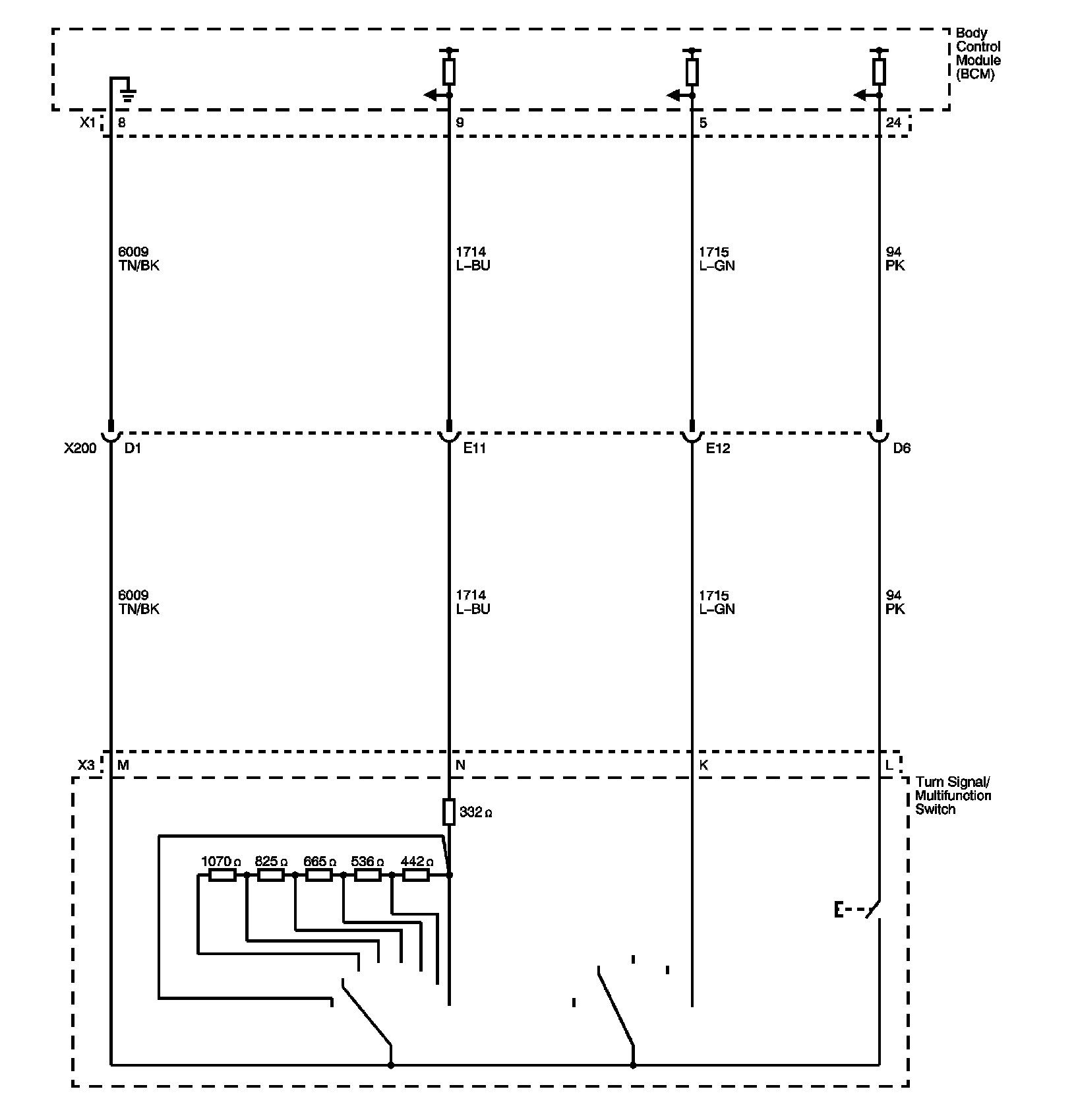

Wiper Controls

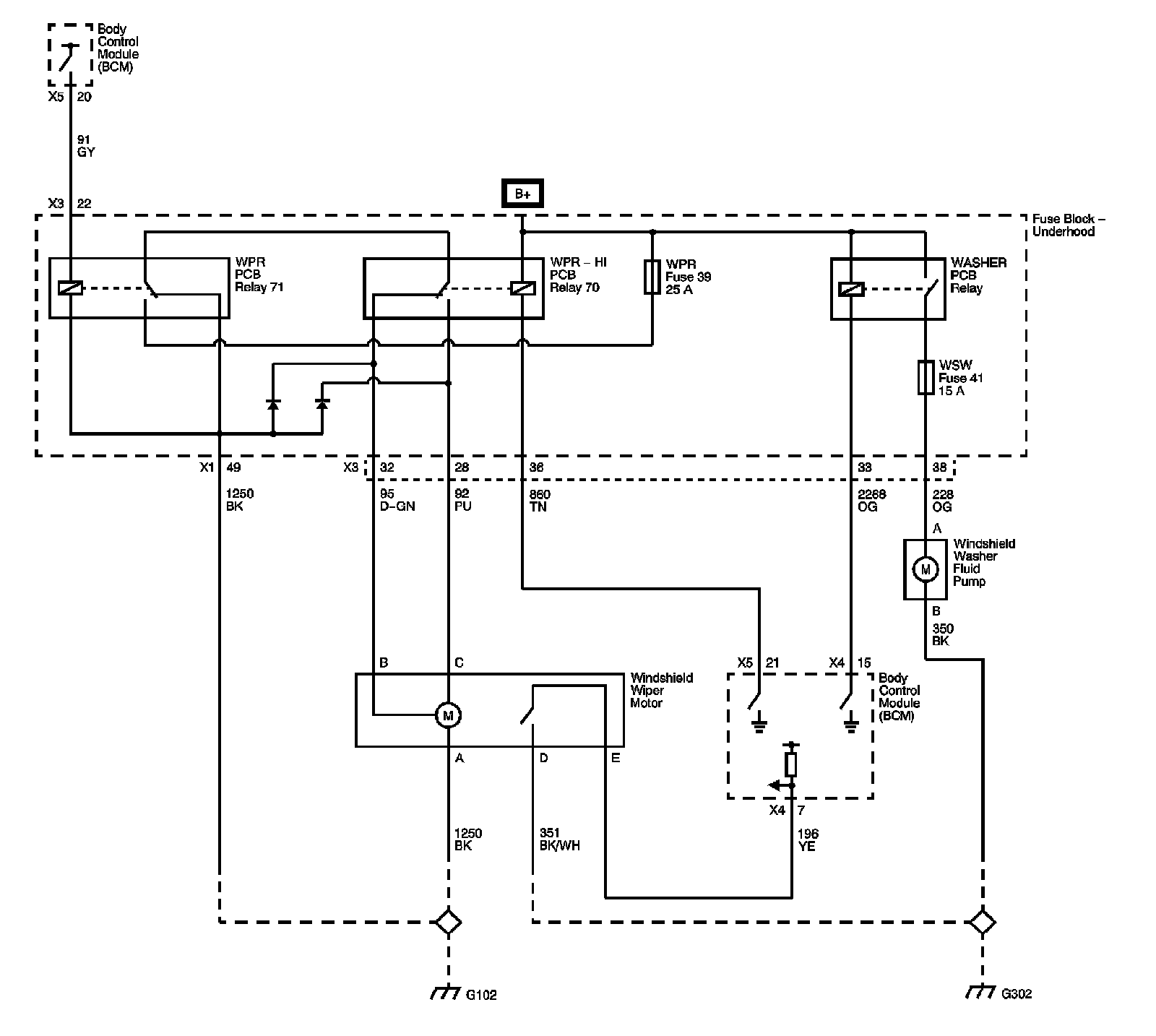

Wiper and Washer Motor Control
