Air Bag Deactivation Indicator
Air Bag Deactivation Indicator

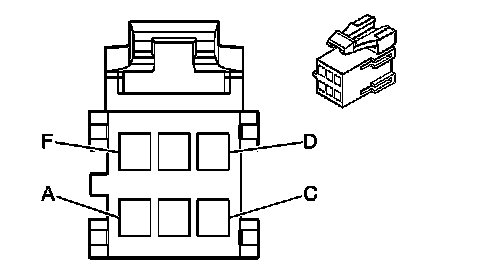

Component Connector End Views

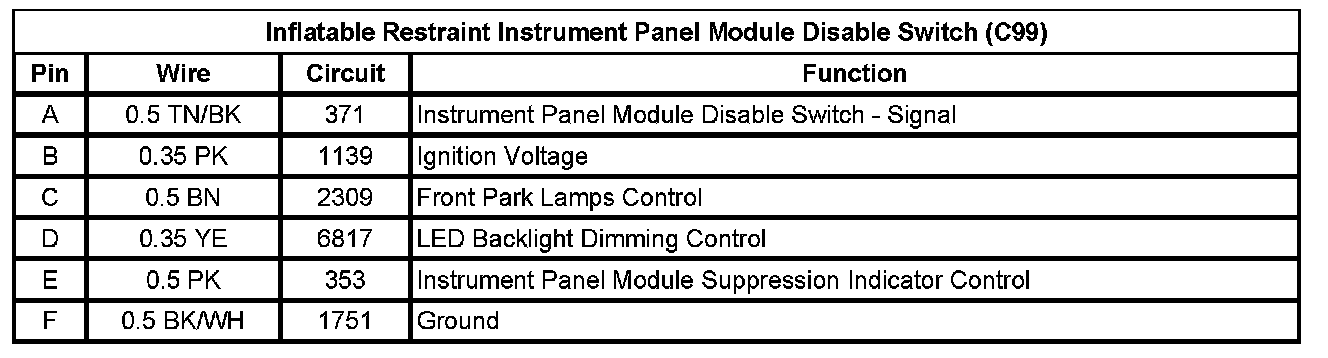

Inflatable Restraint Instrument Panel Module Disable Switch (C99)
