82. Engine Flywheel Installation

Engine Flywheel Installation

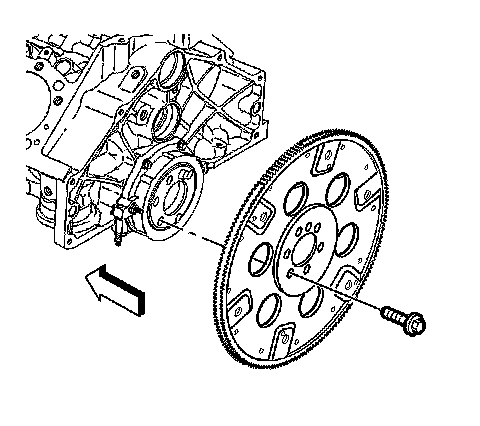

1. Install the engine flywheel to the crankshaft.
2. Align the locator hole to the pin.





Notice: Refer to Fastener Notice .

3. Install the engine flywheel bolts.

Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).
