X414

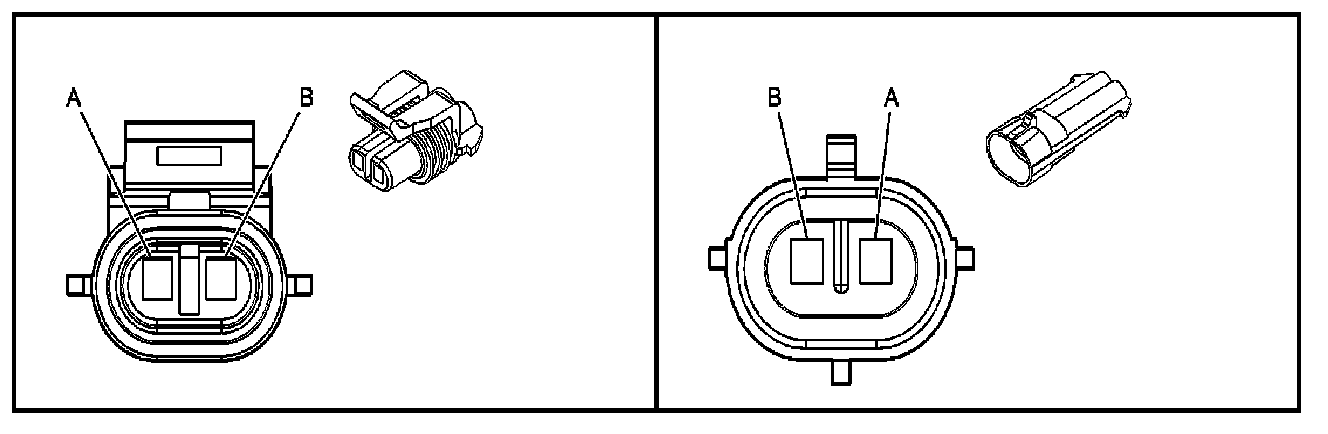

Inline Harness Connector End Views

X414 Chassis Harness to Right Rear Wheel Speed Sensor Jumper Harness (JL4)

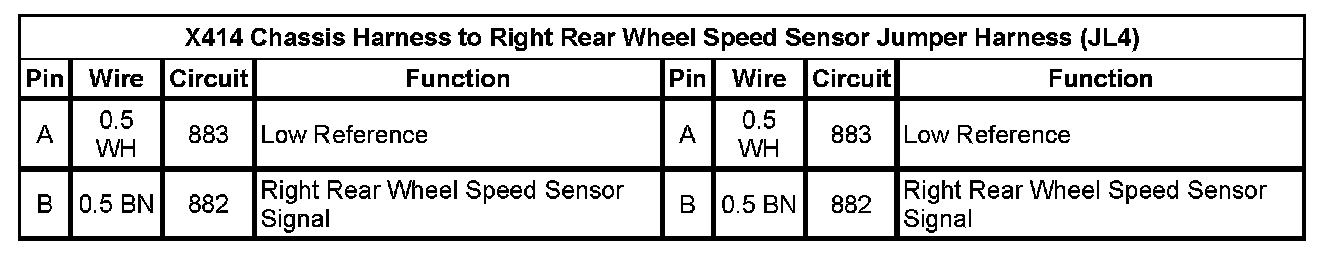

X414 Chassis Harness To Right Rear Wheel Speed Sensor Jumper Harness (JL4) Pin A To B:
