Seat Belt Buckle: Diagrams



Component Connector End Views

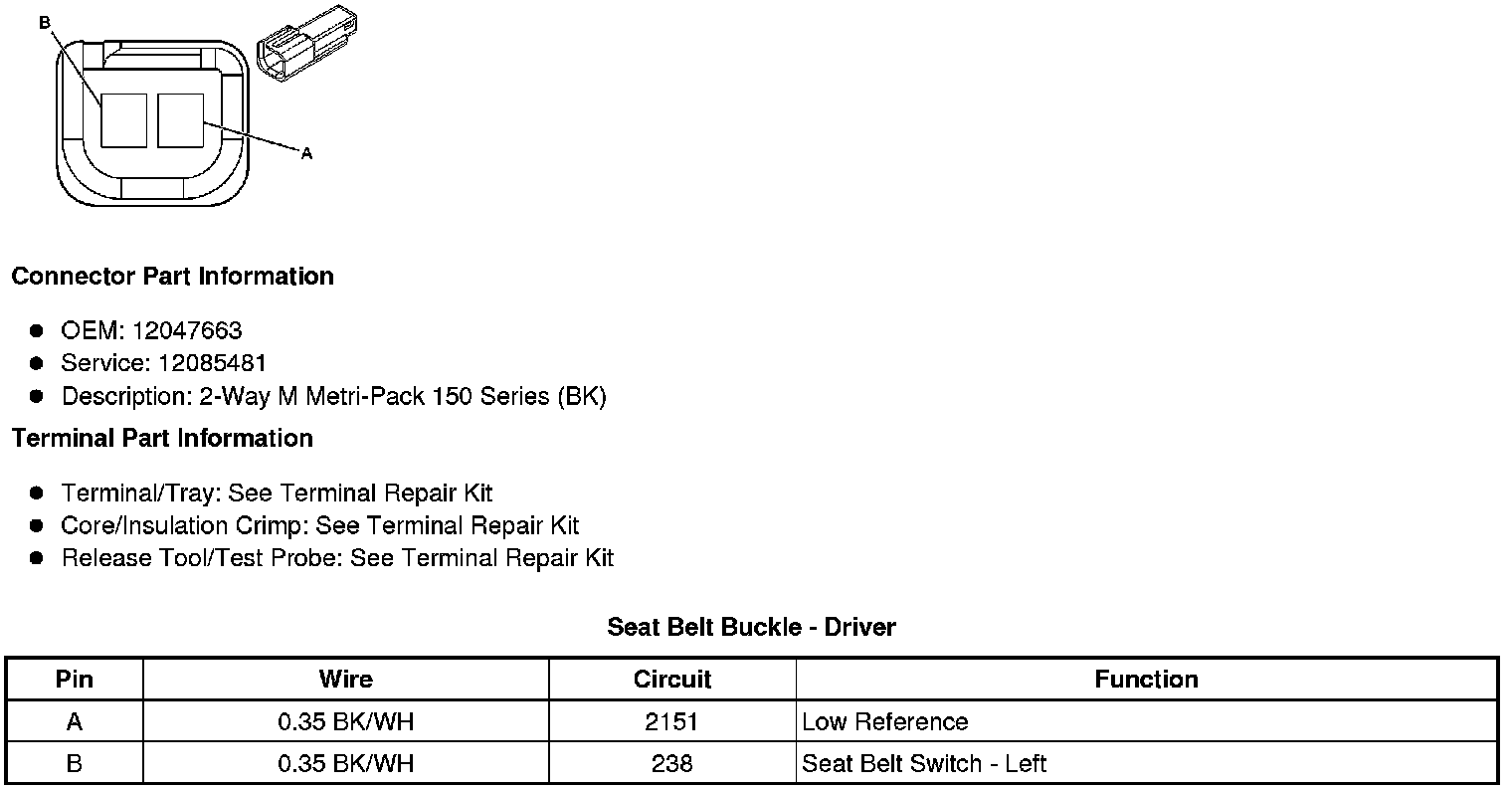

Seat Belt Buckle - Driver

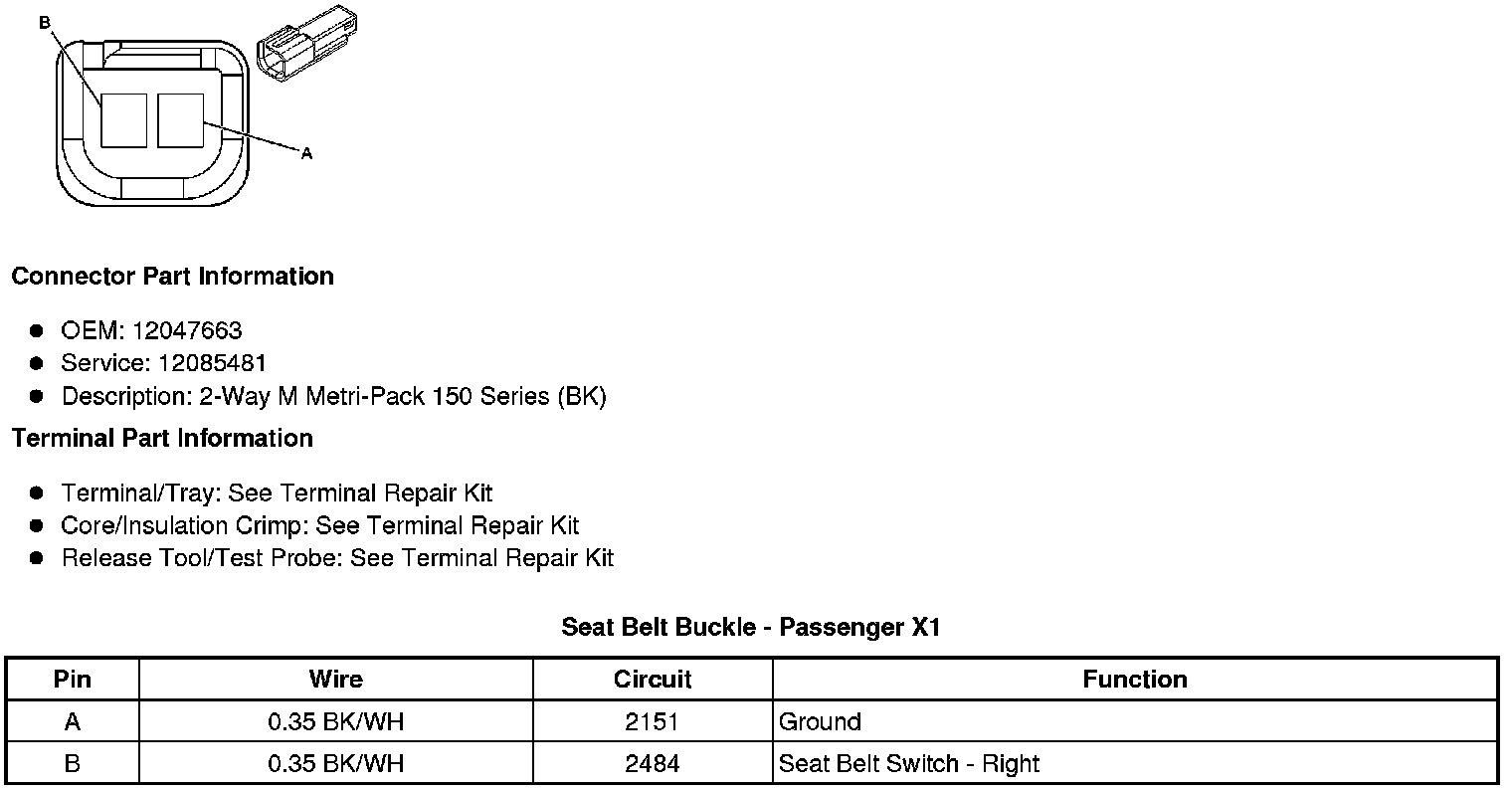

Seat Belt Buckle - Passenger X1

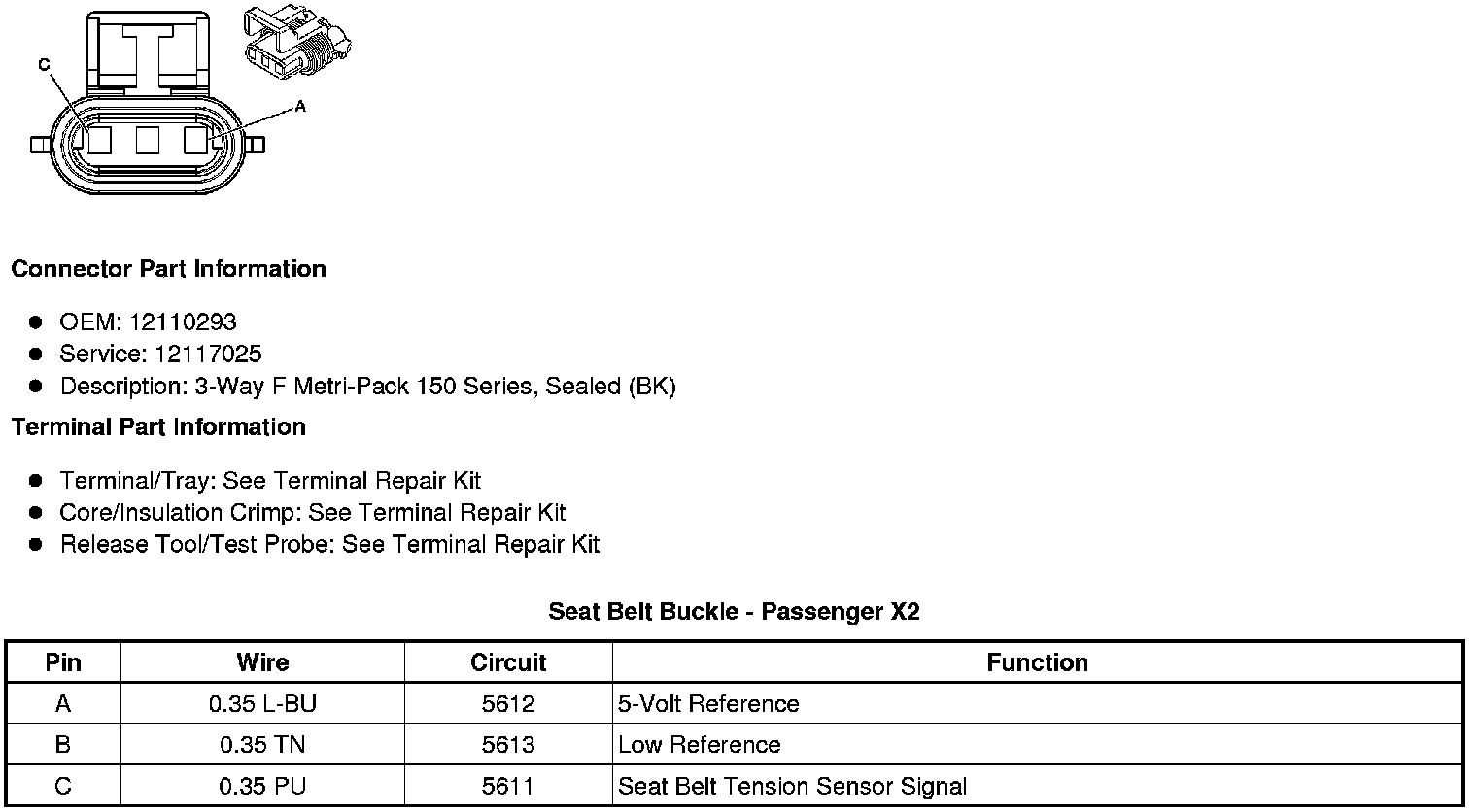

Seat Belt Buckle - Passenger X2
