Park Brake Rear Cable Replacement - Left Side

Parking Brake Rear Cable Replacement - Left Side

Tools Required

J 37043 Parking Brake Cable Release Tool

Removal Procedure
Caution: Refer to Brake Dust Caution (Brake Dust Caution) .
Caution: Refer to Brake Fluid Irritant Caution (Brake Fluid Irritant Caution) .




1. Release the park brake.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .
3. Remove the park brake cable adjusting nut.




4. Remove the front park brake cable from the equalizer.




5. Remove the left rear park brake cable from the equalizer.

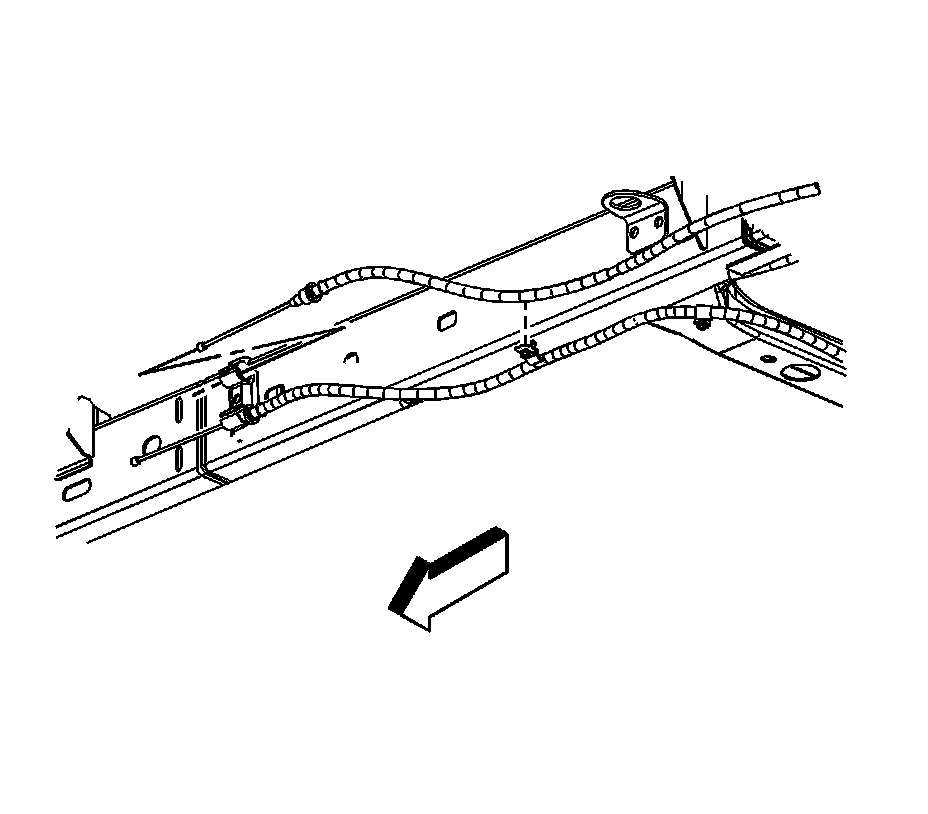

6. On long wheel base vehicles, remove the park brake cable at the left frame rail.




7. Remove the retaining bolt from the left rear park brake cable.

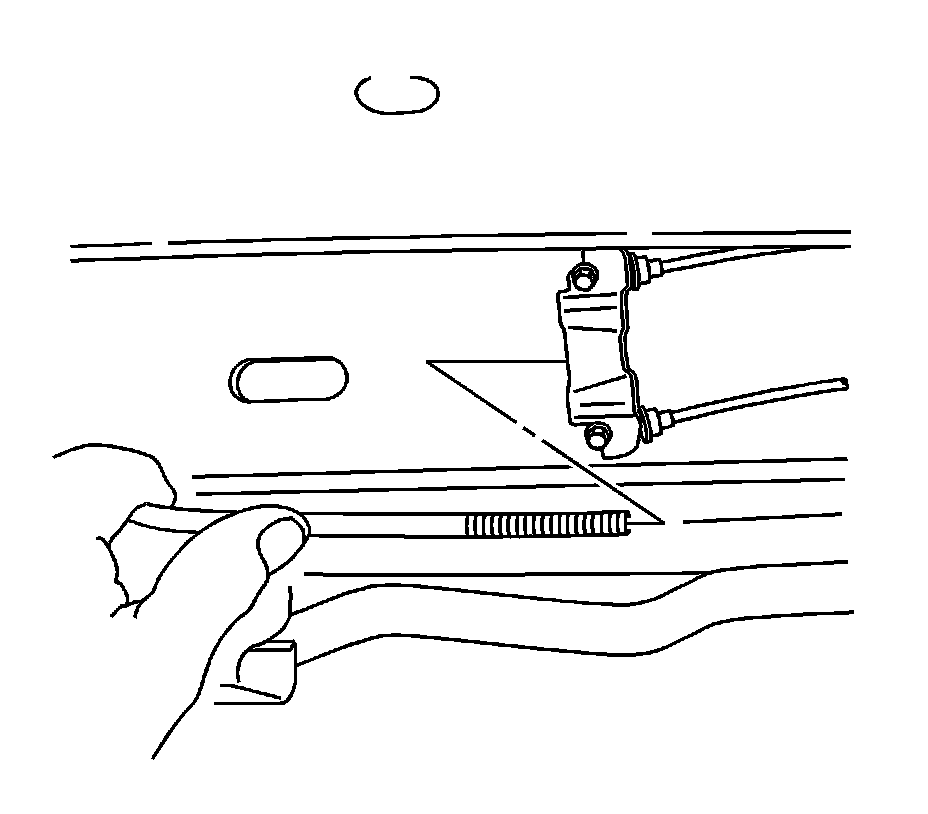

8. On short wheel base vehicles, remove the park brake cable from the left frame rail.




9. Remove the retainer for the park brake cables at the left frame rail.

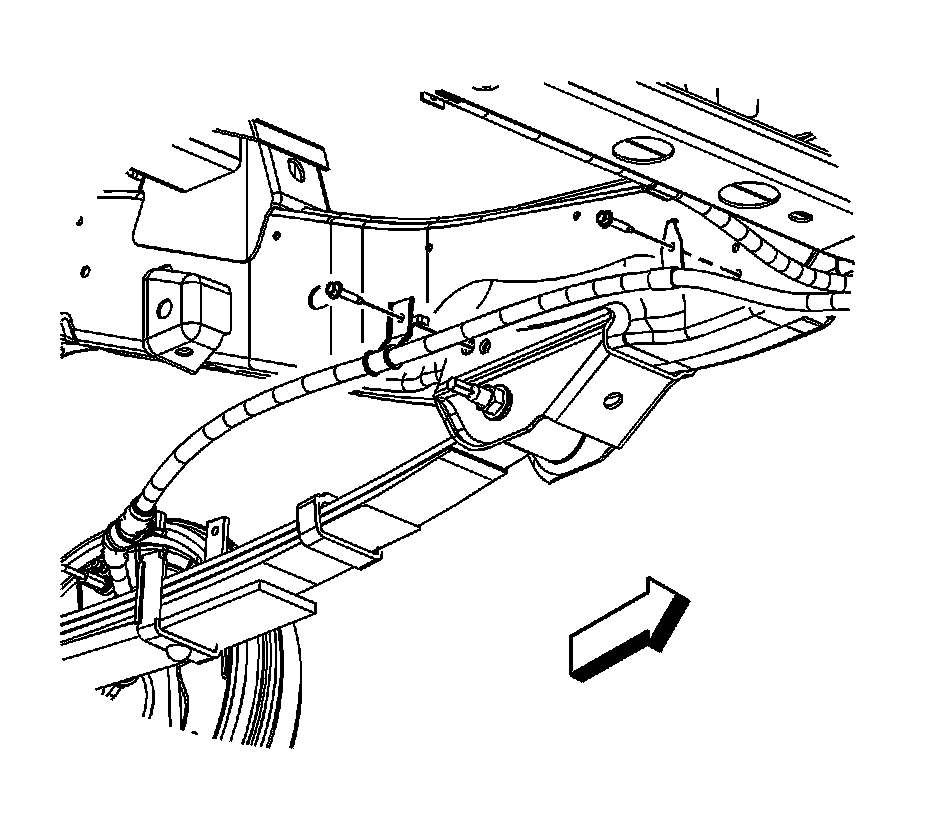

10. Remove the park brake cable retaining nut at the left rear leaf spring.
11. Remove the left rear park brake cable retaining bracket.
12. Remove the rear brake shoes. Refer to Brake Shoe Replacement (Service and Repair) .

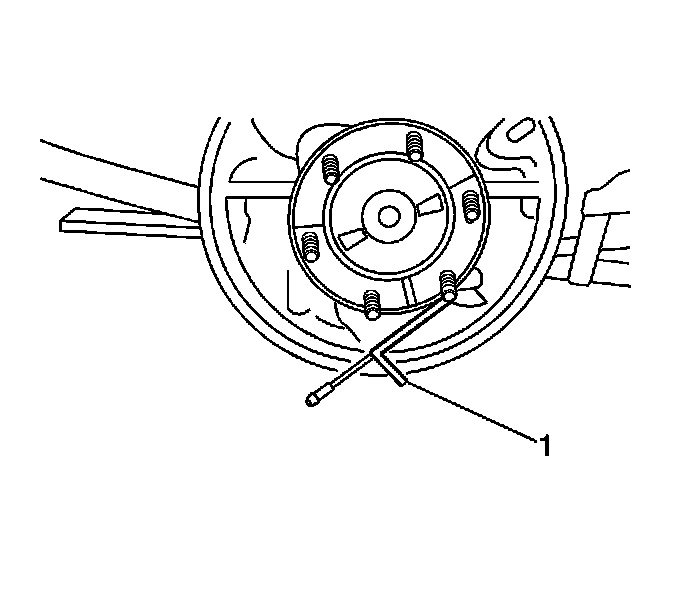

13. Using the J 37043 (1), remove the park brake cable from the backing plate.

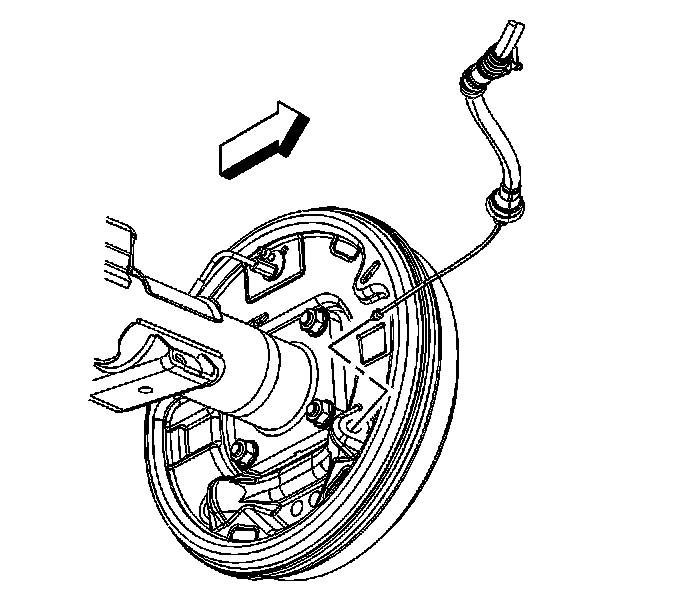

14. Remove the park brake cable from the vehicle.

Installation Procedure




1. Install the park brake cable into the backing plate.
2. Install the rear brake shoes. Refer to Brake Shoe Replacement (Service and Repair) .




3. Install the park brake cable to the retaining bracket at the rear leaf spring.

Notice: Refer to Fastener Notice (Fastener Notice) .

4. Install the retaining nut.

Tighten the retaining nut to 9 N.m (80 lb in).




5. Install the park brake cable to the left rear frame rail.
6. Install the retaining bolts.

Tighten the retaining bolts to 9 N.m (80 lb in).




7. On short wheel base vehicles, install the park brake cable in the retaining bracket.
8. Install the retaining bolt for the park brake cable.

Tighten the retaining bolt to 9 N.m (80 lb in).




9. On long wheel base vehicles, install the park brake cable in the retaining bracket.




10. Install the left rear park brake cable to the park brake equalizer.




11. Install the front park brake cable in the equalizer.




12. Install the adjuster nut.
13. Adjust the park brake. Refer to Park Brake Adjustment (Adjustments) .
14. Lower the vehicle.
