X119
X119

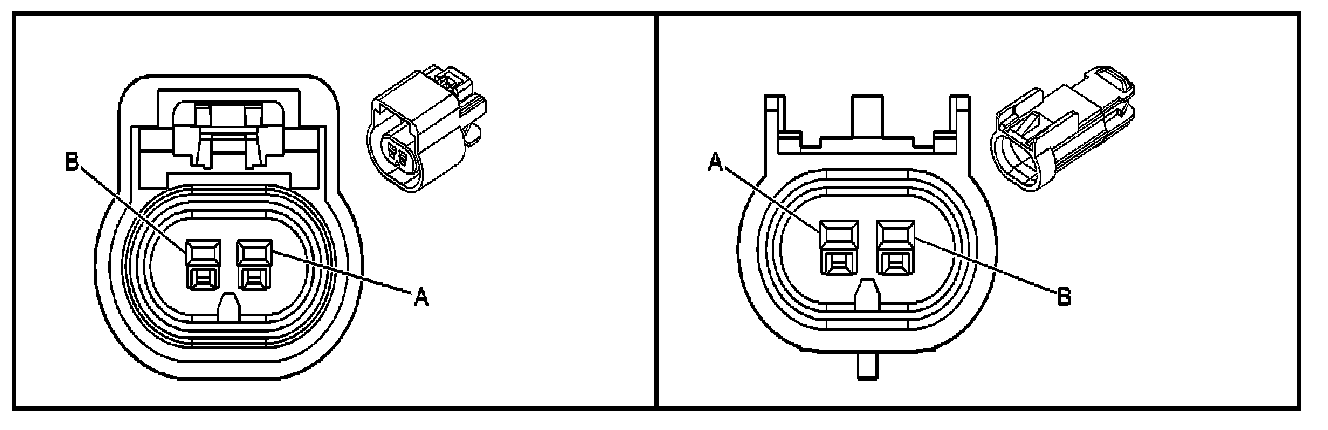

Inline Harness Connector End Views

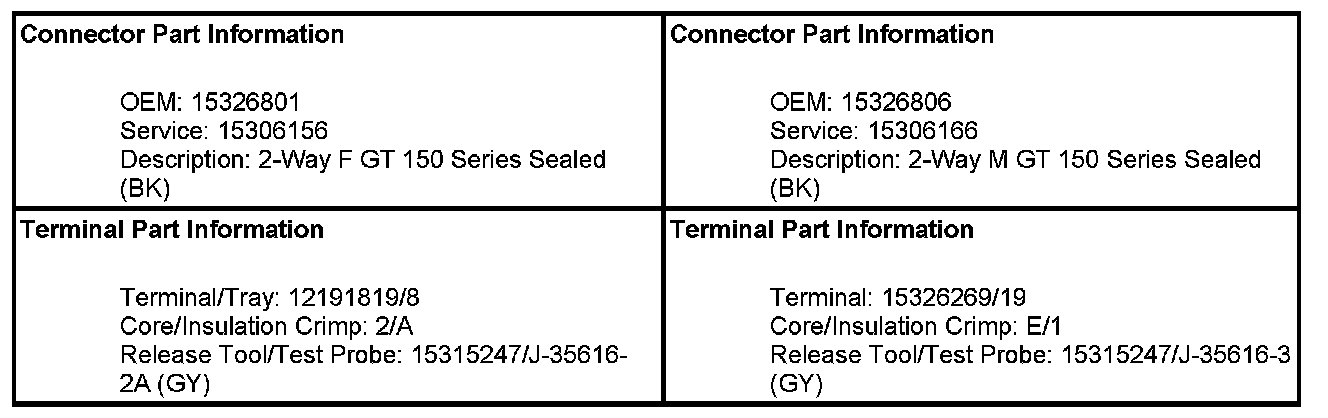

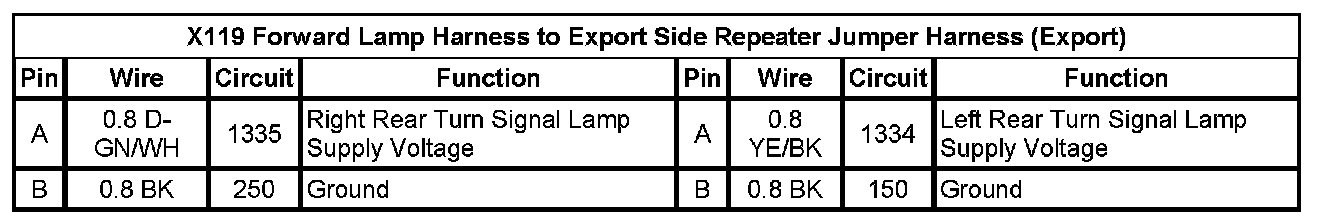

X119 Forward Lamp Harness to Export Side Repeater Jumper Harness (Export)
