Rear Window Washer Nozzle Replacement

Rear Window Washer Nozzle Replacement

Removal Procedure






Important: Protect the painted surface of the liftgate prior to removing the washer nozzle.

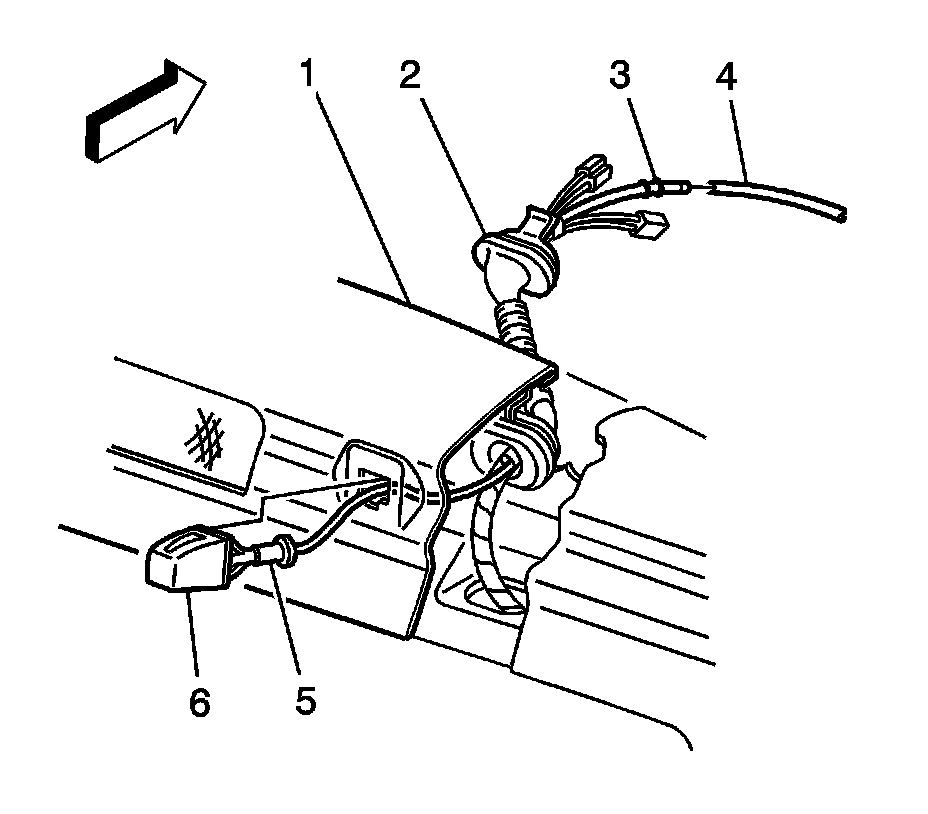

1. Using a small flat-bladed tool, push in both sides to release fingers while pulling outwards on nozzle (6).
2. Remove the rear washer nozzle (6) from the rear washer hose connection (5).

Installation Procedure




1. Install the washer nozzle (6) to the rear washer hose connection (5).
2. Position the rear washer nozzle (6) to the liftgate opening, pressing in until fully seated.
