Compressor/Pump: Diagrams



Automatic Level Control (ALC) Compressor (G67)

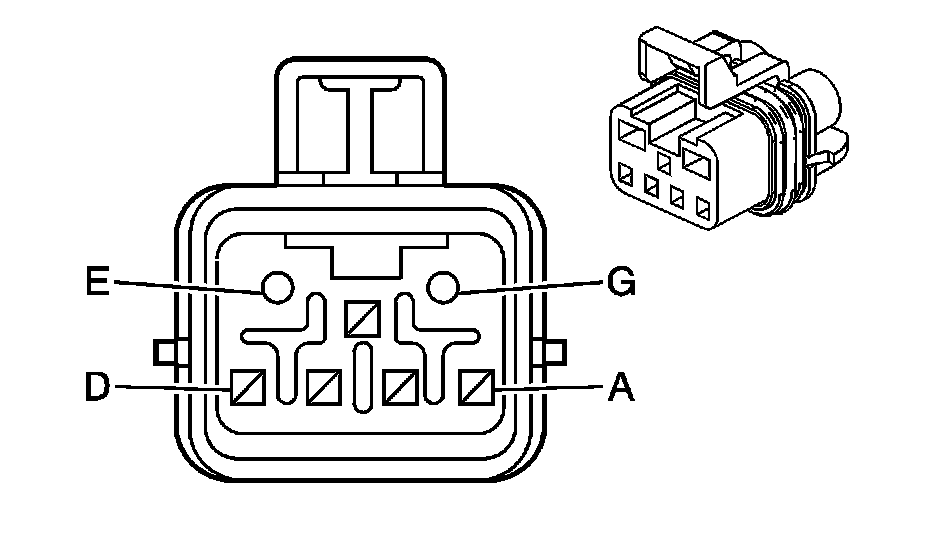

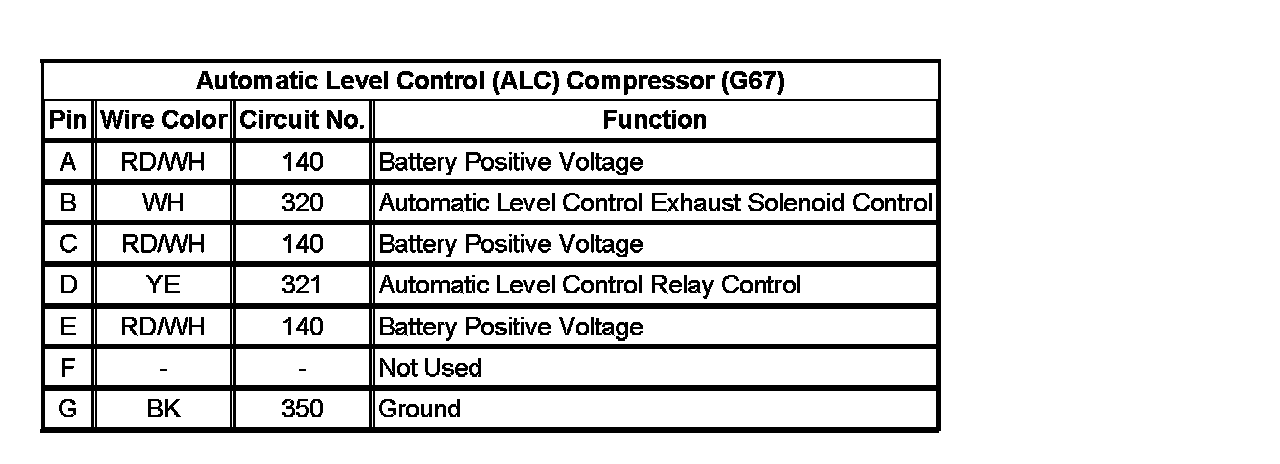

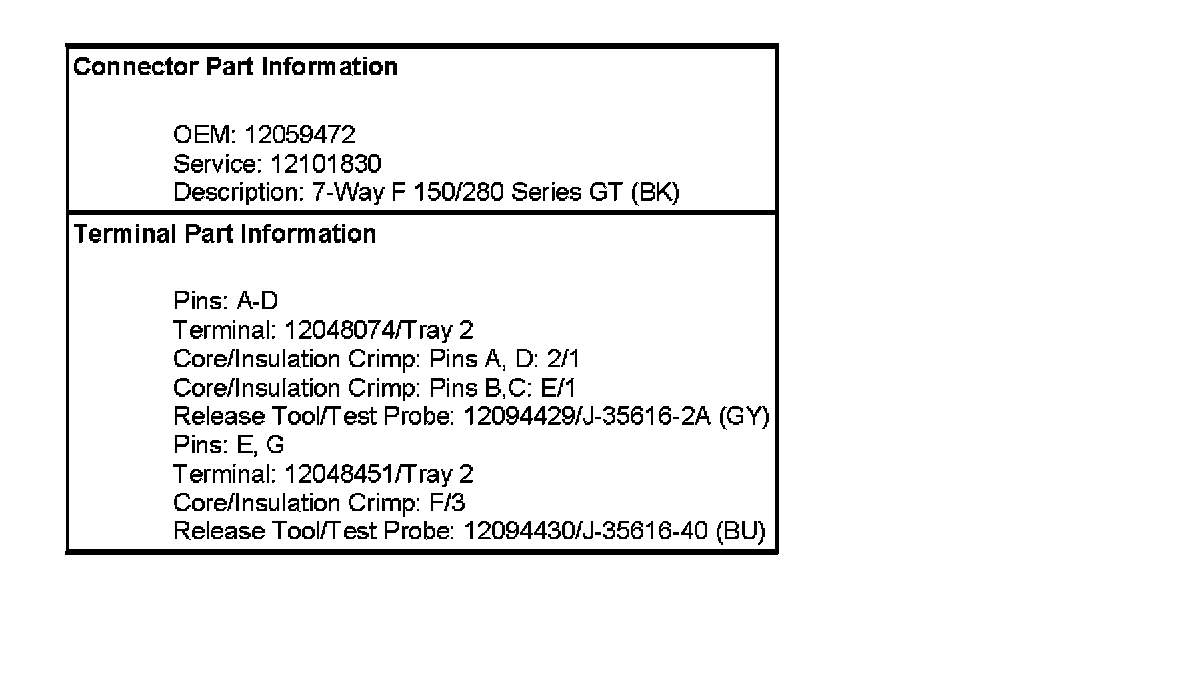

Automatic Level Control (ALC) Compressor (G67):
