C360
C360

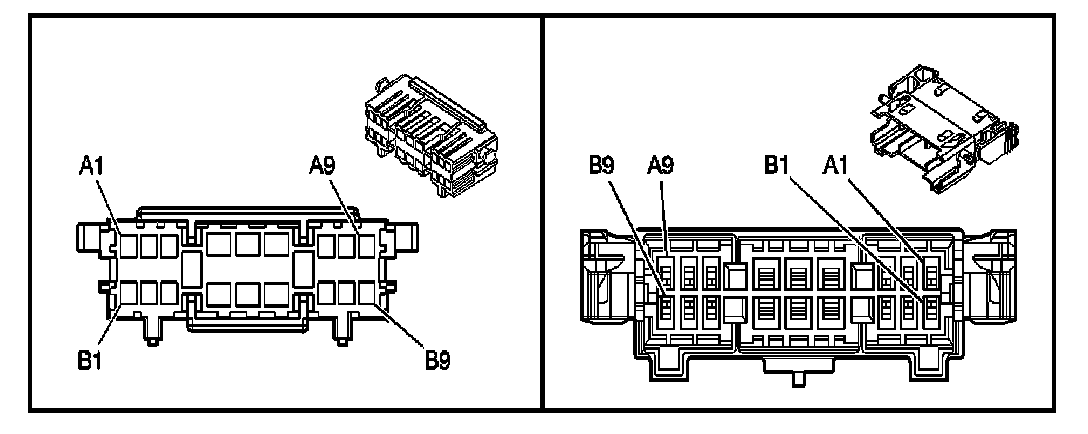

Inline Harness Connector End Views

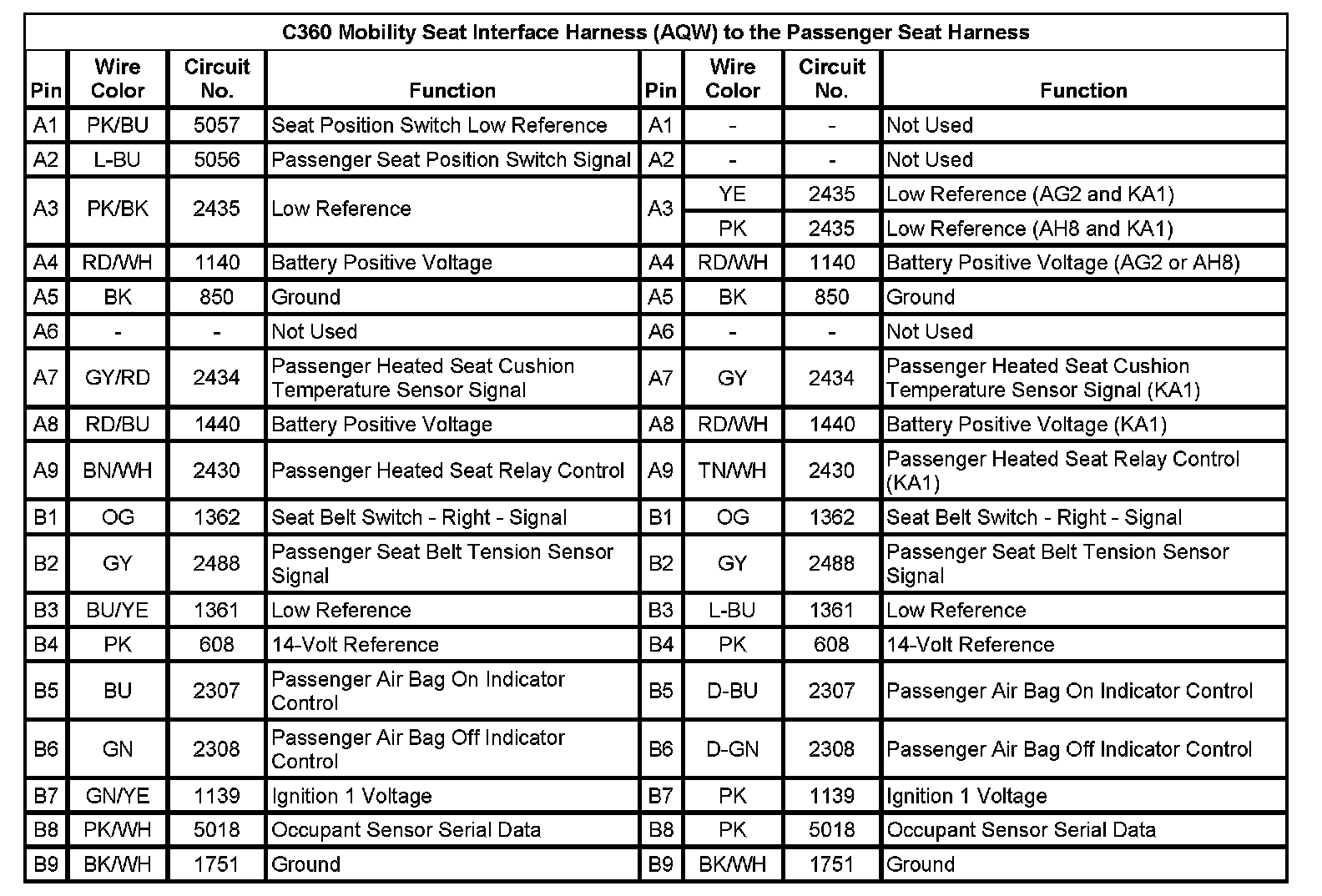

C360 Mobility Seat Interface Harness (AQW) to the Passenger Seat Harness
