Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2007
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C300 - C399
>>
C307
C307

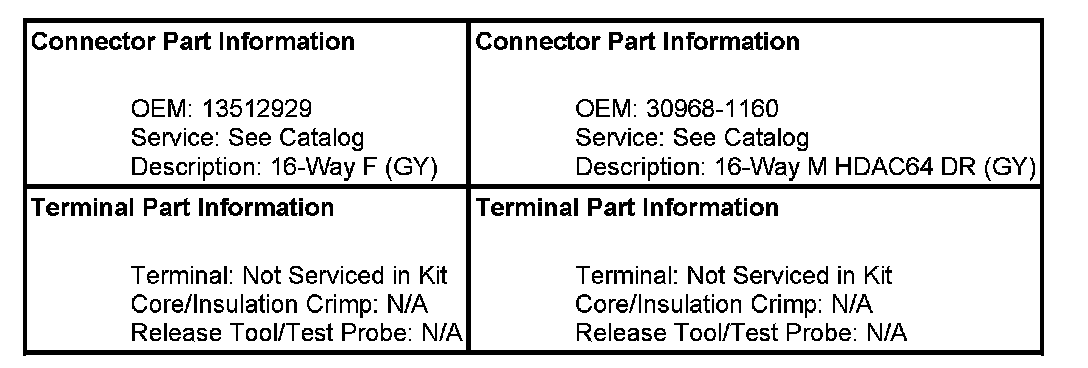

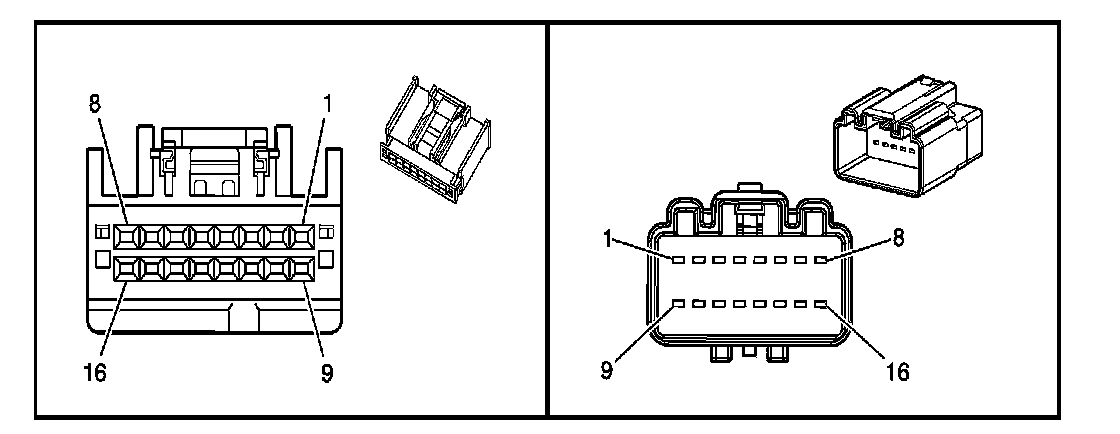

Inline Harness Connector End Views

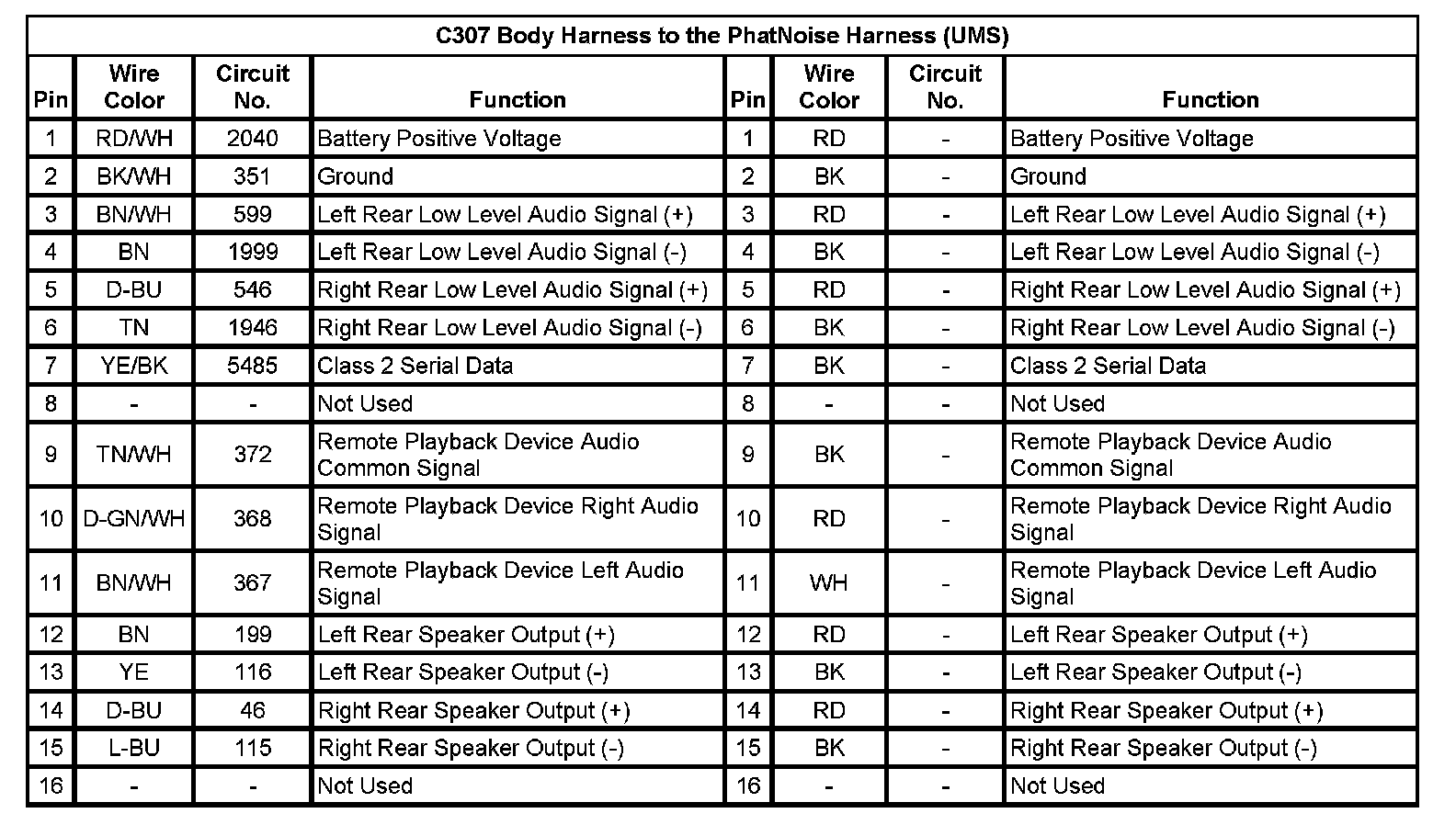

C307 Body Harness to the PhatNoise Harness (UMS)
