C277

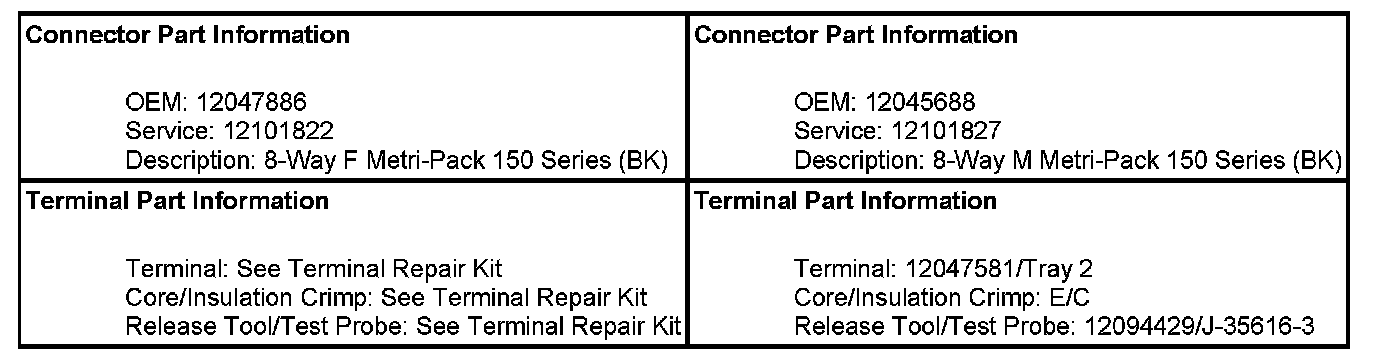

Inline Harness Connector End Views

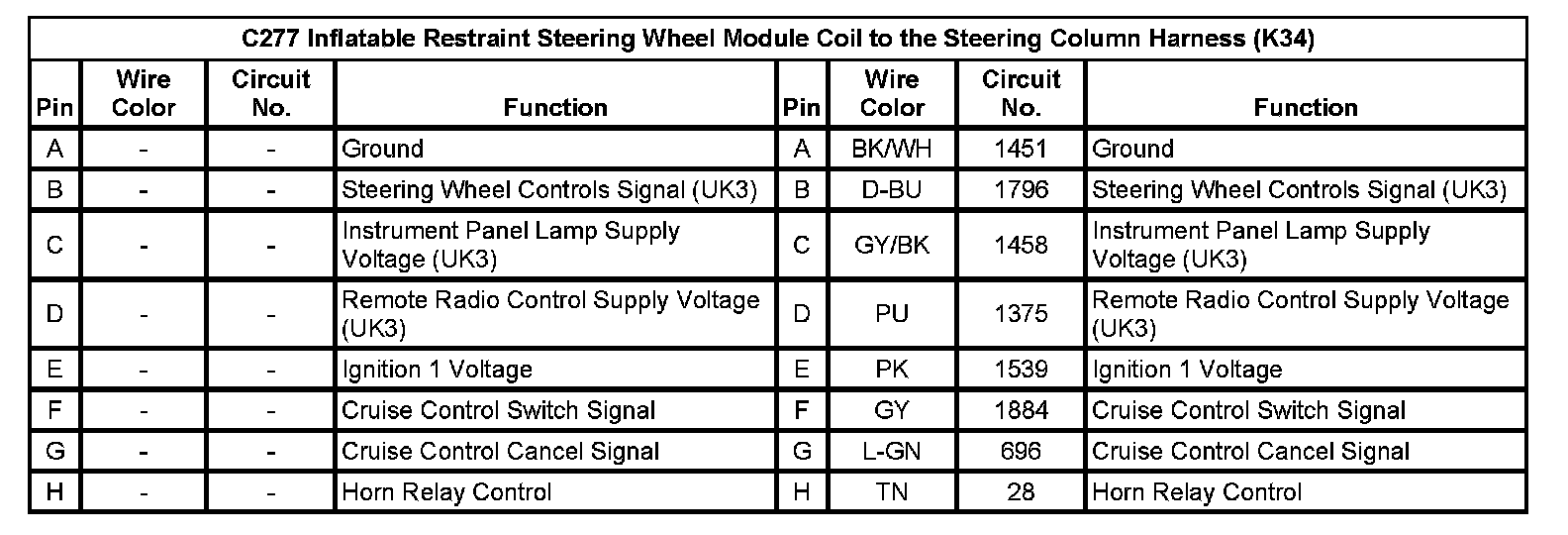

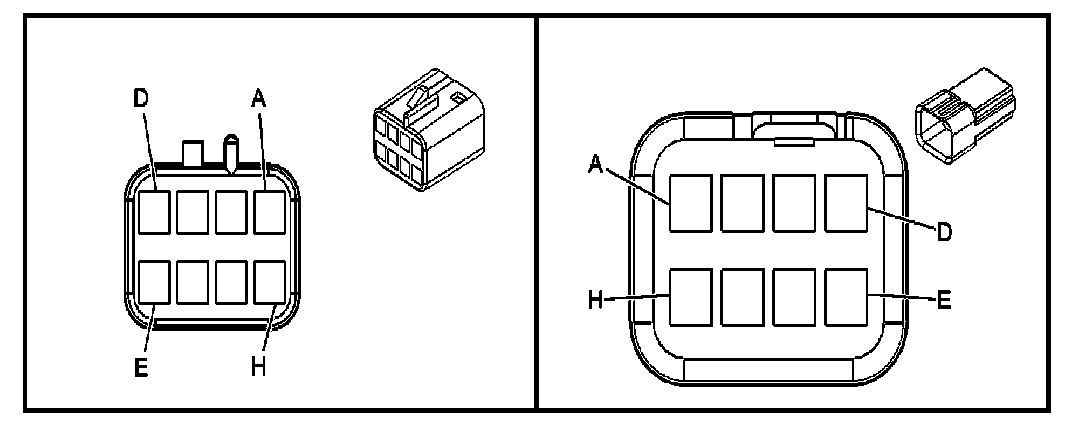

C277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (K34)

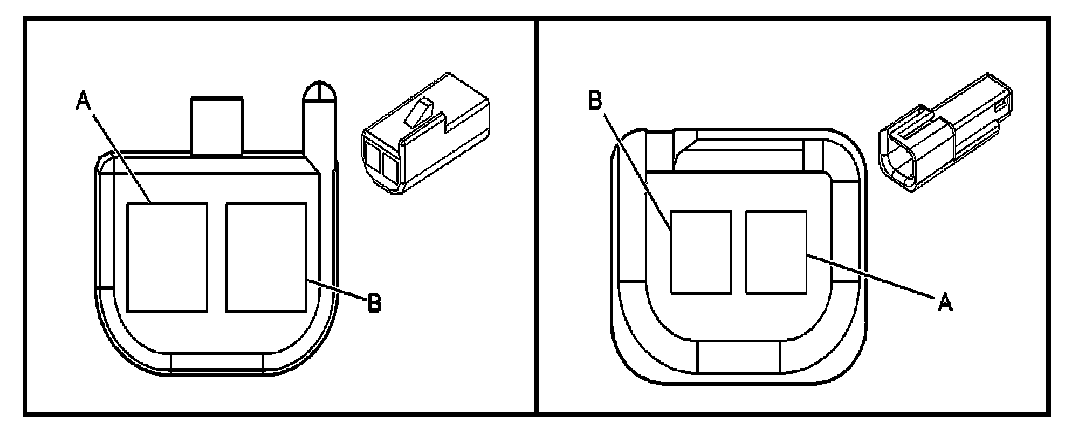

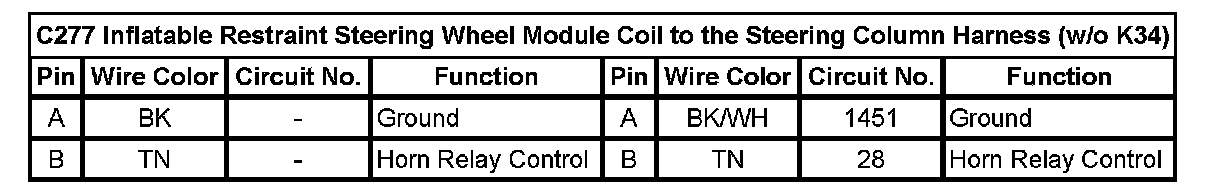

C277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (w/o K34)
