Mode Actuator Replacement

Mode Actuator Replacement

Removal Procedure




1. Remove the driver side knee bolster.

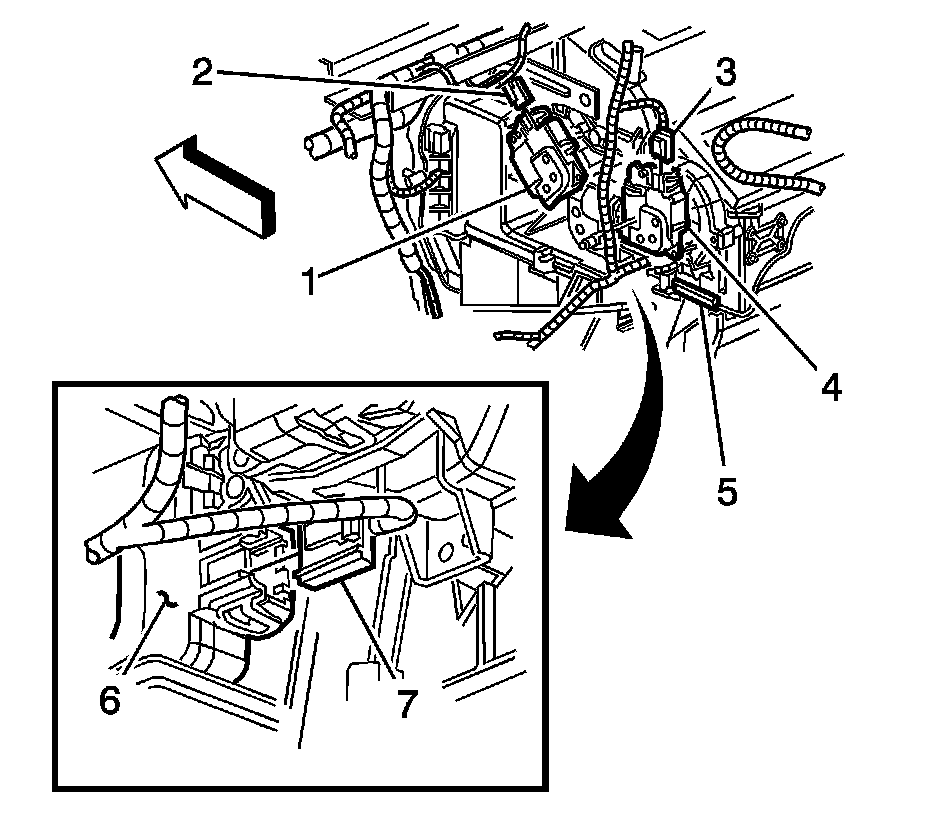

2. Locate the mode actuator (4).
3. Disconnect the mode actuator electrical connector (3).




4. Remove the mode actuator bolts/screws (1).
5. Remove the mode actuator (2).

Installation Procedure




1. Install the mode actuator (2).

Notice: Refer to Fastener Notice.

2. Install the mode actuator bolts/screws (1).

Tighten the screws to 1.2 N.m (11 lb in).




3. Connect the mode actuator electrical connector (3).
4. Install the driver side knee bolster.
5. Re-calibrate the actuators. Refer to Actuators Recalibration. Programming and Relearning
