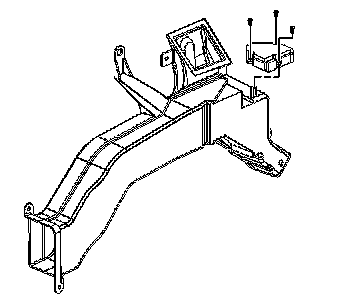

Auxiliary Mode Actuator Replacement

Auxiliary Mode Actuator Replacement

Removal Procedure




1. Remove the left lower quarter trim panel.
2. Disconnect the auxiliary mode actuator electrical connector.
3. Remove the auxiliary mode actuator bolts/screws.
4. Remove the auxiliary mode actuator.

Installation Procedure




1. Install the auxiliary mode actuator.

Notice: Refer to Fastener Notice.

2. Install the auxiliary mode actuator bolts/screws.

Tighten the bolts/screws to 1.6 N.m (14 lb in).

3. Connect the auxiliary mode actuator electrical connector.
4. Install the left lower quarter trim panel.
