Exhaust Heat Shield Replacement

Exhaust Heat Shield Replacement

Removal Procedure




1. Remove the muffler.

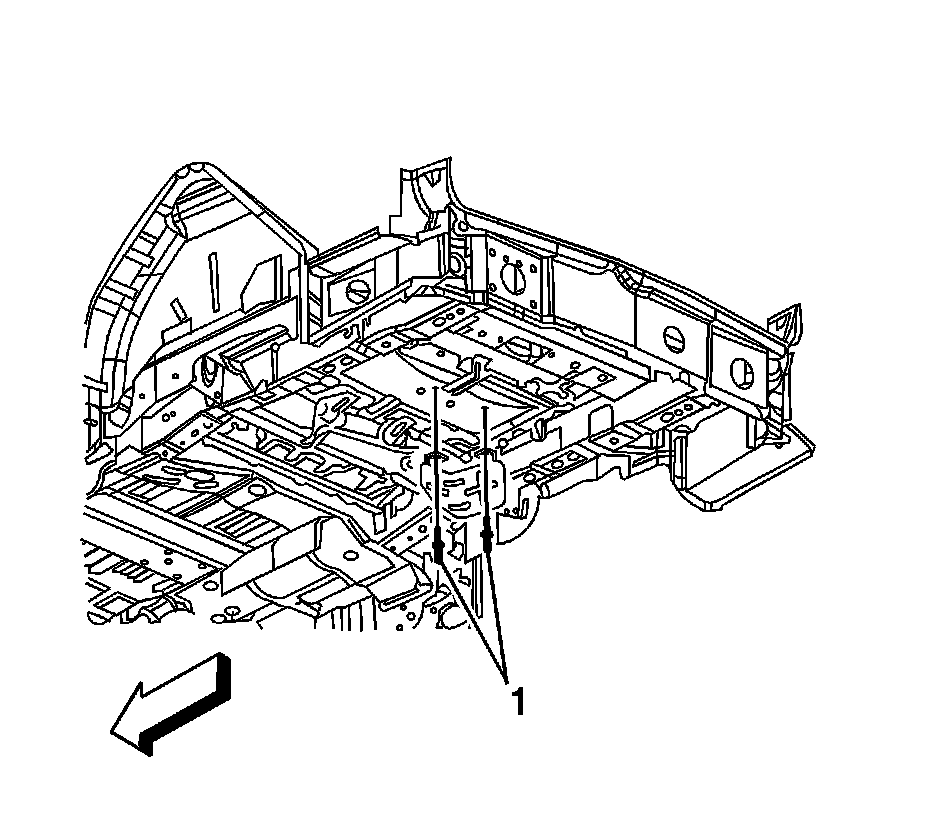

2. Drill out the resonator heat shield rivets (1).
3. Remove the heat shield.

Installation Procedure




1. Position the heat shield to the underbody.
2. Install NEW rivets (1) attaching the resonator heat shield to the underbody.
3. Install the muffler.
