Engine Mount Strut Bracket Replacement - Right

Engine Mount Strut Bracket Replacement - Right Side

Removal Procedure




1. Remove the intake manifold cover.
2. Loosen and remove the engine mount strut to engine mount strut bracket through bolt (4) and nut (5).
3. Rotate the engine mount strut up out of the way.




4. Remove the engine harness clip (1) from the engine mount strut bracket.
5. Remove the drive belt.
6. Remove the radiator air baffle.
7. Remove the right front engine splash shield.




8. Remove the A/C compressor front bolt and nut.




9. Remove the A/C compressor rear bolt.

Important: Do not evacuate the air conditioning (A/C) system.

10. Position the A/C compressor aside.

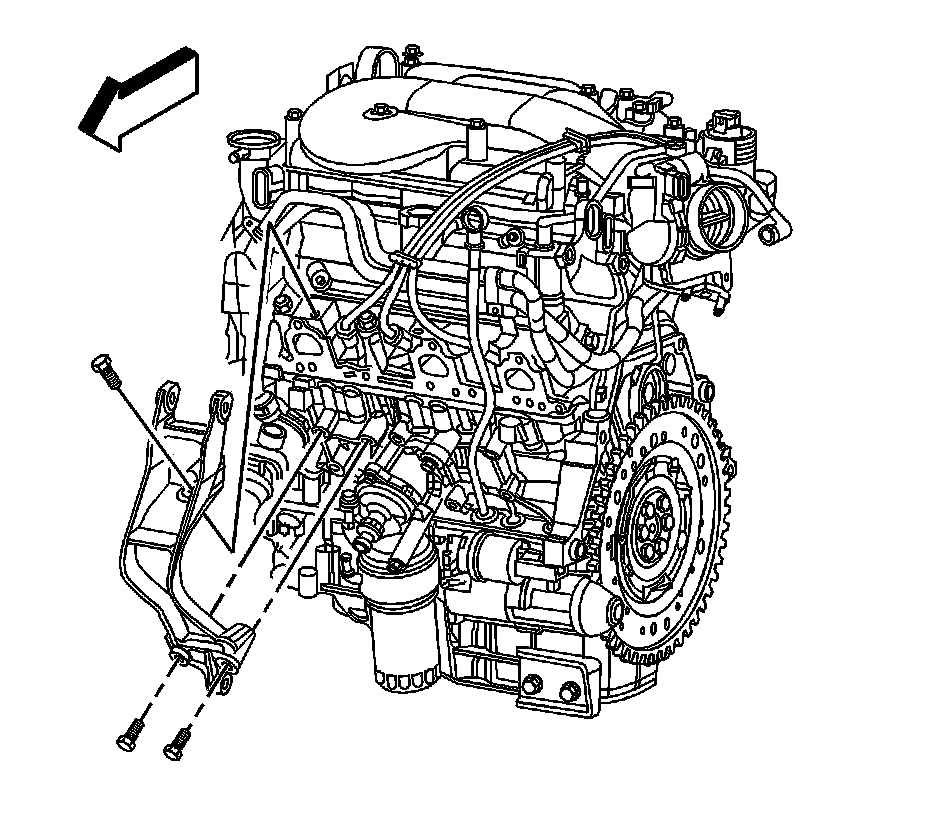

11. Remove the lower engine mount strut bracket bolts.
12. Lower the vehicle.
13. Remove the upper engine mount strut bracket bolts.
14. Remove the engine mount strut bracket.

Installation Procedure




1. Position the engine mount strut bracket to the engine.
2. Install the upper engine mount strut bracket bolt.
3. Raise the vehicle.

Notice: Refer to Fastener Notice.

4. Install the lower engine mount strut bracket bolts.

Tighten the bolts to 50 N.m (37 lb ft).




5. Position and install the A/C compressor onto the stud.
6. Install the A/C compressor rear bolt.

Tighten the bolt to 50 N.m (37 lb ft).




7. Install the A/C compressor front bolt and nut.

Tighten the bolt/nut to 50 N.m (37 lb ft).

8. Install the drive belt.
9. Install the right engine splash shield.
10. Install the radiator air baffle.




11. Install the engine harness clip (1) to the engine mount strut bracket.




12. Rotate the engine mount strut into position.
13. Install and tighten the engine mount strut to engine mount strut bracket through bolt (4) and nut (5).

Tighten the bolt/nut to 48 N.m (36 lb ft).

14. Install the intake manifold cover.
