Lift Lower Limit Switch (AQW)
Lift Lower Limit Switch (AQW)

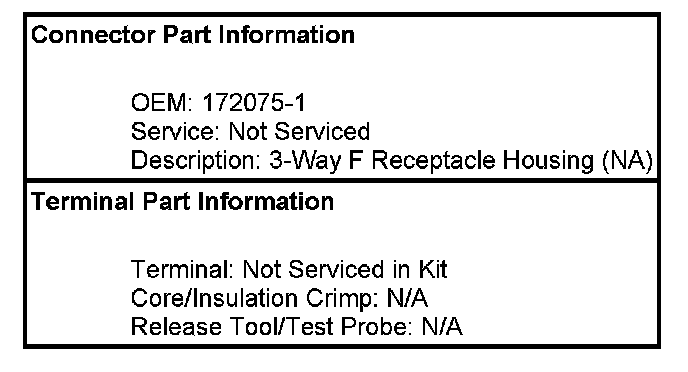

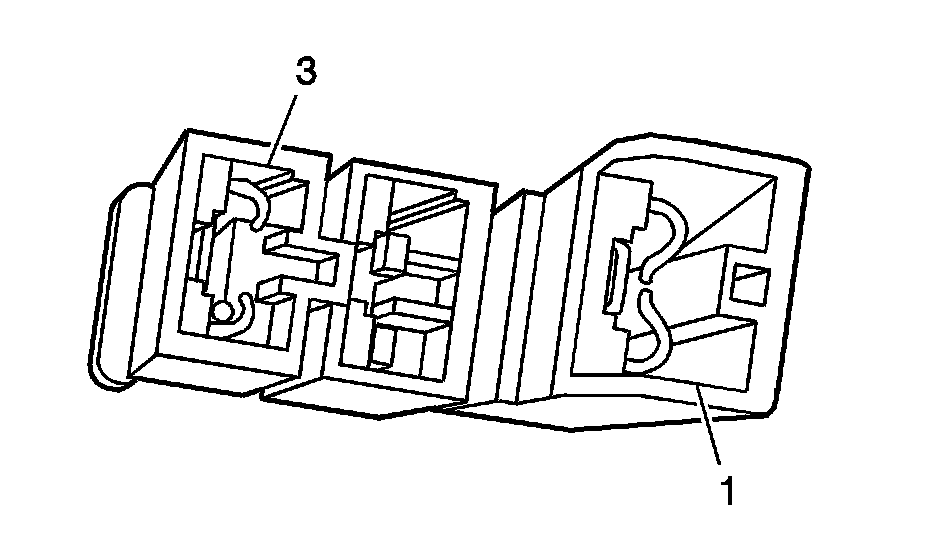

Power Seat Connector End Views

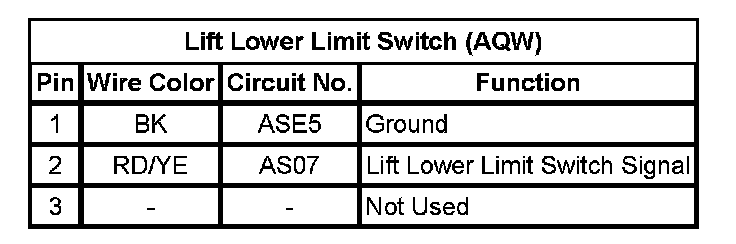

Lift Lower Limit Switch (AQW)
