Rear Energy Absorber Replacement

Rear Energy Absorber Replacement

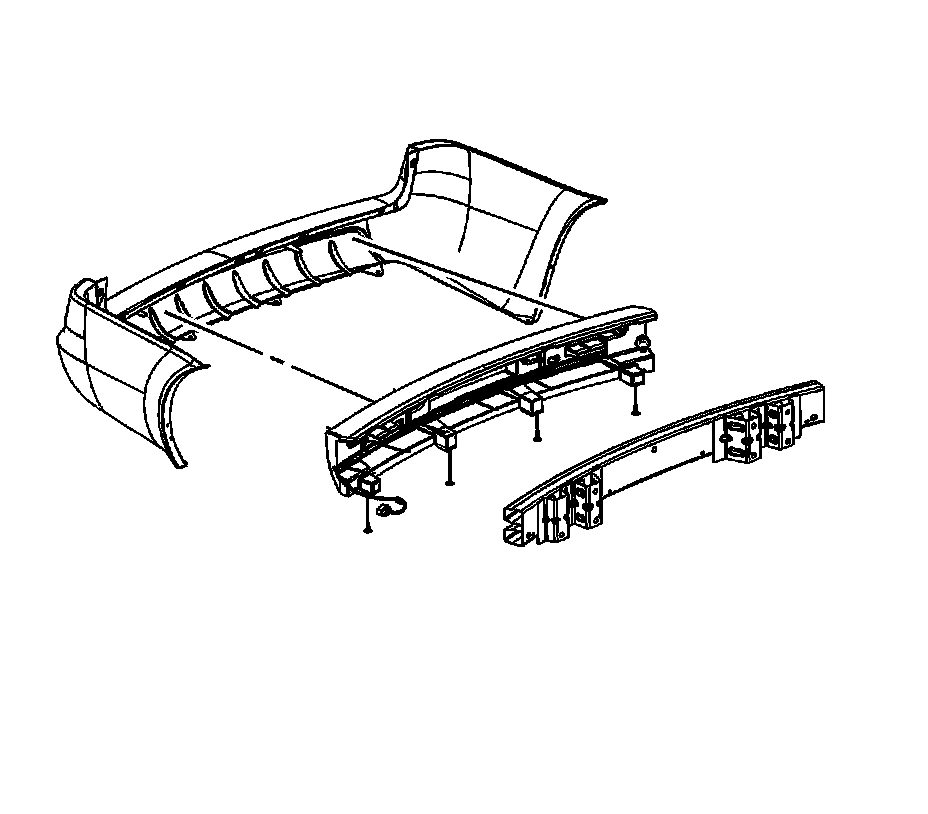

Removal Procedure





1.Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

2.Disconnect the rear object sensor wiring harness from the rear energy absorber, if equipped.

3.Remove the energy absorber from the fascia by releasing the tabs on the fascia.

Installation Procedure





1.Position the energy absorber to the rear bumper fascia and snap in place.

2.Position the rear fascia to the impact bar.

3.Connect the rear object sensor wiring harness to the rear energy absorber, if equipped.

4.Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
