Home >> Chevy Truck >> 2007 >> TrailBlazer 4WD L6-4.2L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Mechanical Specifications >> Transmission Fluid Pressure Manual Valve Position Switch Logic

Transmission Fluid Pressure Manual Valve Position Switch Logic



Transmission Fluid Pressure Manual Valve Position Switch Logic

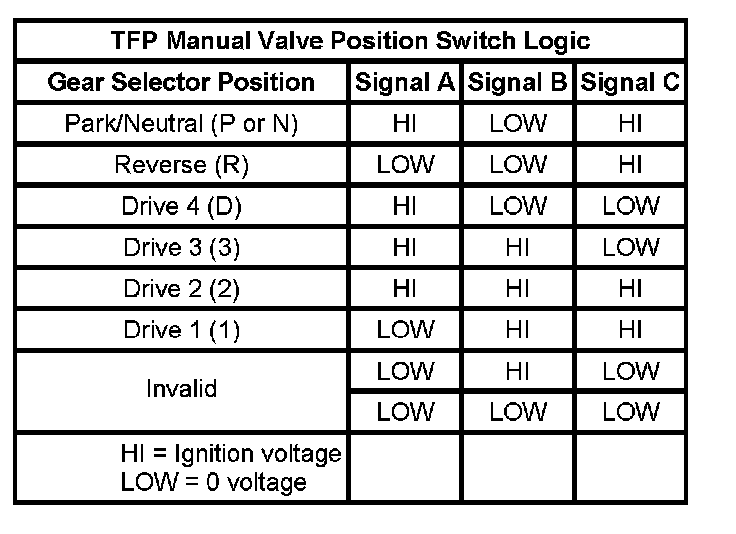

Transmission Fluid Pressure Manual Valve Position Switch Logic:
